| CPU2006 license: | 22 | Test date: | Jul-2008 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Dec-2007 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5420 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 2500 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB PC2-5300F, 2 rank, CL 5-5-5, ECC) |
| Disk Subsystem: | 1x SAS, 73 GB, 15000 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64, Version 10.1, Build 20070913 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library, Version 8.1 binutils-2.17.50.0.5-0.1.x86_64 |

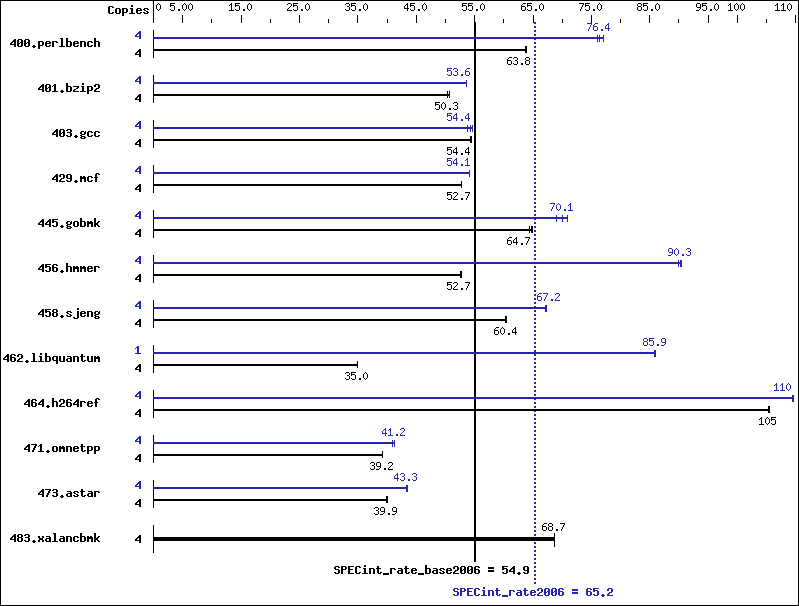

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 612 | 63.8 | 614 | 63.7 | 613 | 63.8 | 4 | 513 | 76.1 | 507 | 77.1 | 512 | 76.4 |
| 401.bzip2 | 4 | 768 | 50.3 | 761 | 50.7 | 768 | 50.3 | 4 | 720 | 53.6 | 720 | 53.6 | 721 | 53.5 |
| 403.gcc | 4 | 591 | 54.5 | 591 | 54.4 | 593 | 54.3 | 4 | 592 | 54.4 | 598 | 53.9 | 590 | 54.6 |
| 429.mcf | 4 | 692 | 52.7 | 692 | 52.7 | 692 | 52.7 | 4 | 673 | 54.2 | 674 | 54.1 | 674 | 54.1 |
| 445.gobmk | 4 | 646 | 64.9 | 649 | 64.7 | 652 | 64.4 | 4 | 608 | 69.0 | 592 | 70.8 | 598 | 70.1 |
| 456.hmmer | 4 | 708 | 52.7 | 707 | 52.8 | 709 | 52.7 | 4 | 415 | 90.0 | 413 | 90.4 | 413 | 90.3 |
| 458.sjeng | 4 | 802 | 60.4 | 802 | 60.3 | 801 | 60.5 | 4 | 720 | 67.2 | 720 | 67.2 | 720 | 67.2 |
| 462.libquantum | 4 | 2367 | 35.0 | 2371 | 35.0 | 2370 | 35.0 | 1 | 241 | 85.9 | 241 | 85.9 | 242 | 85.8 |
| 464.h264ref | 4 | 840 | 105 | 840 | 105 | 840 | 105 | 4 | 809 | 109 | 807 | 110 | 808 | 110 |
| 471.omnetpp | 4 | 637 | 39.2 | 638 | 39.2 | 636 | 39.3 | 4 | 607 | 41.2 | 606 | 41.2 | 610 | 41.0 |
| 473.astar | 4 | 699 | 40.2 | 703 | 39.9 | 704 | 39.9 | 4 | 645 | 43.5 | 648 | 43.3 | 649 | 43.3 |
| 483.xalancbmk | 4 | 402 | 68.7 | 402 | 68.6 | 402 | 68.7 | 4 | 402 | 68.7 | 402 | 68.6 | 402 | 68.7 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores (default)
Platform Notes
BIOS configuration: Hardware Prefetch = Enable, Adjacent Sector Prefetch = Disable
General Notes
All binaries were built with 32-bit Intel compiler except: 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel compiler by changing the path for include and library files. For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
