SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

SGI

SGI Altix 4700 Density System (Itanium
Processor 9150M 1.66GHz/24M)

CPU2006 license: 4 Test date: Jul-2008
Test sponsor: SGI Hardware Availability: Nov-2007
Tested by: SGI Software Availability: Jan-2008

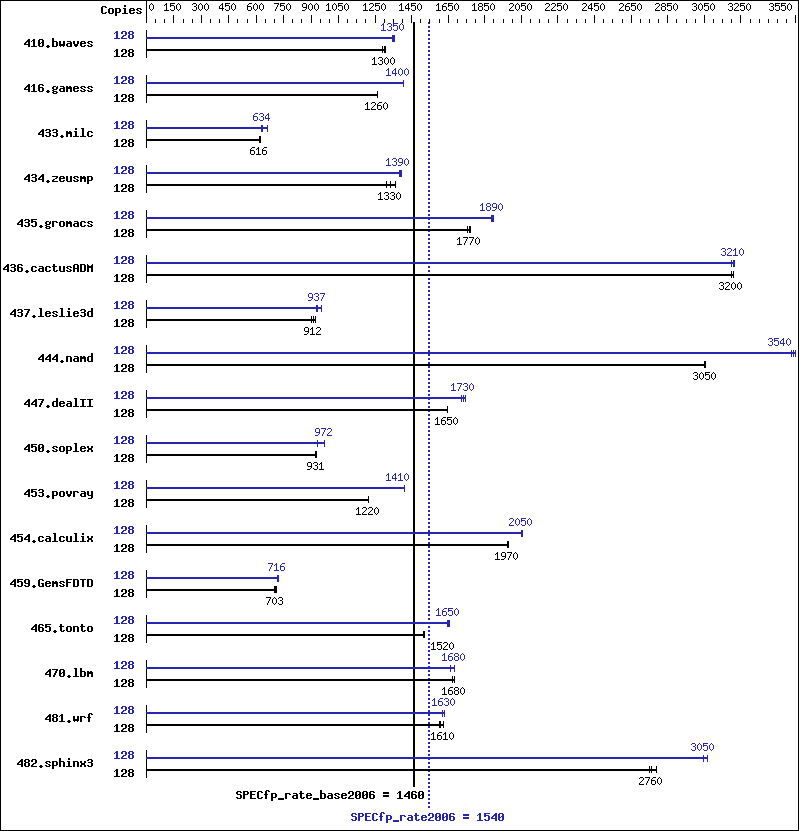

Benchmark results graph
Hardware
CPU Name: Dual-Core Intel Itanium 9150M
CPU Characteristics: 667MHz FSB
CPU MHz: 1669
FPU: Integrated
CPU(s) enabled: 128 cores, 64 chips, 2 cores/chip
CPU(s) orderable: 8 to 512 blades with 2 chips per blade
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 1 MB I + 256 KB D on chip per core
L3 Cache: 12 MB I+D on chip per core
Other Cache: None
Memory: 256 GB (8*1GB DDR2-400 DIMMS per 4 core module)
Disk Subsystem: 2.4 TB RAID 4+1
32 x 73 GB SCSI (Seagate Cheetah 15k rpm)
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (ia64) SP1,
Kernel 2.6.16.54-0.2.5-default
Compiler: Intel Fortran Compiler for Linux 10.1 (Build
20071005)
Intel C++ Compiler for Linux 10.1 (Build
20071005)
Auto Parallel: No
File System: xfs
System State: Multi-user
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: SGI ProPack 5 Service Pack 4

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 128 1347 1290 1331 1310 1335 1300 128 1289 1350 1292 1350 1285 1350
416.gamess 128 1982 1260 1984 1260 1984 1260 128 1786 1400 1787 1400 1783 1410
433.milc 128 1908 616 1908 616 1891 622 128 1853 634 1874 627 1773 663
434.zeusmp 128 856 1360 888 1310 873 1330 128 837 1390 843 1380 836 1390
435.gromacs 128 517 1770 517 1770 520 1760 128 482 1900 484 1890 483 1890
436.cactusADM 128 478 3200 477 3210 478 3200 128 476 3210 479 3200 477 3210
437.leslie3d 128 1334 902 1320 912 1299 926 128 1293 931 1284 937 1257 957
444.namd 128 336 3050 336 3050 336 3050 128 290 3540 291 3530 289 3550
447.dealII 128 890 1650 888 1650 889 1650 128 850 1720 841 1740 846 1730
450.soplex 128 1152 927 1146 931 1146 932 128 1099 972 1139 938 1097 973
453.povray 128 560 1220 560 1220 560 1220 128 482 1410 483 1410 482 1410
454.calculix 128 534 1980 535 1970 535 1970 128 515 2050 514 2050 514 2050
459.GemsFDTD 128 1937 701 1932 703 1917 708 128 1879 723 1899 715 1897 716
465.tonto 128 831 1520 829 1520 828 1520 128 764 1650 762 1650 761 1660
470.lbm 128 1045 1680 1051 1670 1043 1690 128 1045 1680 1057 1660 1045 1680
481.wrf 128 893 1600 880 1630 891 1610 128 884 1620 877 1630 878 1630
482.sphinx3 128 904 2760 895 2790 907 2750 128 820 3040 813 3070 819 3050

General Notes


 Processes were bound to CPUs using dplace.
 limit stacksize unlimited

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LINUX   -DSPEC_CPU_LINUX64_IPF
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -ansi-alias

C++ benchmarks:

 -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -ansi-alias

Fortran benchmarks:

 -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration

Benchmarks using both Fortran and C:

 -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -ansi-alias

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -fno-alias   -ansi-alias
470.lbm:  -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -ansi-alias
482.sphinx3:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -fno-alias   -no-opt-prefetch-initial-values   -ansi-alias

C++ benchmarks:

444.namd:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -no-prefetch   -auto-ilp32   -fno-alias   -ansi-alias
447.dealII:  -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -inline-factor=150   -no-alias-args   -no-opt-loadpair   -ansi-alias
450.soplex:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -auto-ilp32   -no-alias-args   -ansi-alias
453.povray:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -inline-factor=150   -ansi-alias

Fortran benchmarks:

410.bwaves:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration
416.gamess:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -no-prefetch
434.zeusmp:  Same as 410.bwaves
437.leslie3d:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -no-opt-loadpair
459.GemsFDTD:  -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration
465.tonto:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -inline-factor=150   -no-prefetch

Benchmarks using both Fortran and C:

435.gromacs:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -no-prefetch   -fno-alias   -ansi-alias
436.cactusADM:  -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -ansi-alias
454.calculix:  -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -inline-factor=150   -no-opt-prefetch-initial-values   -ansi-alias
481.wrf:  -fast   -IPF-fp-relaxed   -opt-prefetch-next-iteration   -no-opt-loadpair   -ansi-alias

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic91-ipf.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic91-ipf.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 19:29:24 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 19 August 2008.
