SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun SPARC Enterprise M8000

CPU2006 license: 6 Test date: Jun-2008
Test sponsor: Sun Microsystems Hardware Availability: Jul-2008
Tested by: Sun Microsystems Software Availability: Jul-2008

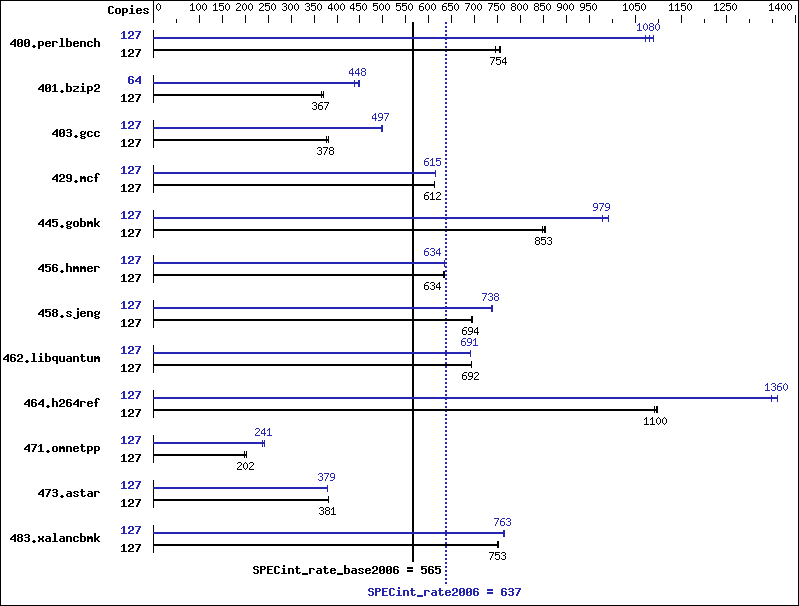

Benchmark results graph
Hardware
CPU Name: SPARC64 VII
CPU Characteristics:
CPU MHz: 2520
FPU: Integrated
CPU(s) enabled: 64 cores, 16 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 4 CMUs; each CMU contains 2 or 4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 256 GB (128 x 2 GB)
Disk Subsystem: 805 GB RAID 0 Solaris Volume
12 x Fujitsu 73 GB 10000 RPM SAS
Stripe interlace size 512 Kbytes
Other Hardware: None
Software
Operating System: Solaris 10 5/08 with Patch 137111-03
Compiler: Sun Studio 12 with patches
124867-06, 124861-07, 124863-05
(see patch information below)
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 127 1663 746 1645 754 1641 756 127 1157 1070 1148 1080 1138 1090
401.bzip2 127 3354 365 3316 370 3341 367 64 1410 438 1378 448 1379 448
403.gcc 127 2686 381 2705 378 2712 377 127 2061 496 2052 498 2058 497
429.mcf 127 1889 613 1894 612 1891 612 127 1883 615 1887 614 1883 615
445.gobmk 127 1562 853 1571 848 1559 854 127 1343 992 1360 979 1362 978
456.hmmer 127 1873 633 1868 634 1868 634 127 1870 634 1866 635 1869 634
458.sjeng 127 2212 695 2215 694 2215 694 127 2082 738 2083 738 2085 737
462.libquantum 127 3802 692 3801 692 3801 692 127 3804 692 3807 691 3807 691
464.h264ref 127 2559 1100 2564 1100 2576 1090 127 2067 1360 2085 1350 2066 1360
471.omnetpp 127 3983 199 3908 203 3926 202 127 3293 241 3273 242 3326 239
473.astar 127 2340 381 2338 381 2336 382 127 2351 379 2348 380 2355 379
483.xalancbmk 127 1164 753 1167 751 1164 753 127 1146 765 1148 763 1150 762

Compiler Invocation Notes

Sun Studio compiler patches are available at
    http://developers.sun.com/sunstudio/downloads/patches/ss12_patches.jsp

Submit Notes


Processes were assigned to specific processors using 'pbind' commands.  The
config file option 'submit' was used, along with a list of processors in the
'BIND' variable, to generate the pbind commands.  (For details, please see
the config file.)

Operating System Notes


System Tunables (/etc/system parameters):

tune_t_fsflushr=10
    Controls how many seconds elapse between runs of the
    page flush daemon, fsflush.
autoup=300
    Causes pages older than the listed number of seconds to
    be written by fsflush.
bufhwm=3000
    Memory byte limit for caching I/O buffers
segmap_percent=3
    Set maximum percent memory for file system cache
lpg_alloc_prefer=1
    Set lgroup page allocation to strongly prefer local pages

Other System Settings:

The webconsole service was turned off using
    svcadm disable webconsole

Platform Notes


Memory is 8-way interleaved by filling all slots with
the same capacity DIMMs.

This result is measured on a Sun SPARC Enterprise M8000 Server.
Note that the Sun SPARC Enterprise M8000 and Fujitsu SPARC Enterprise
M8000 are electrically equivalent.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=1   -xalias_level=std

C++ benchmarks:

 -xdepend   -library=stlport4   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=compatible   -lfast

Base Other Flags

C benchmarks:

 -xjobs=16   -V   -#

C++ benchmarks:

 -xjobs=16   -verbose=diags,version

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xalias_level=std   -xipo=2   -xprefetch_level=2   -xrestrict   -lfast
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=strong   -fma=fused
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch=no   -fma=fused   -ll2amm
429.mcf:  -fast   -xpagesize=4M   -xipo=2   -xprefetch=no   -xrestrict   -xalias_level=std   -lfast
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=std   -xrestrict   -fma=fused
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2   -fma=fused
458.sjeng:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2   -fma=fused   -xchip=ultra3cu   -xpagesize=4m
462.libquantum:  -fast   -xpagesize=4M   -xipo=2   -xprefetch=latx:3   -fma=fused   -xpagesize=64K   -lbsdmalloc
464.h264ref:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch=no   -ll2amm

C++ benchmarks:

471.omnetpp:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xprefetch_level=2   -Qoption cg -Qlp-av=0   -fma=fused   -lfast
473.astar:  -xdepend   -library=stlport4   -fast   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xprefetch_level=2   -fma=fused   -lfast
483.xalancbmk:  -xdepend   -library=stlport4   -fast   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xprefetch=no   -fma=fused   -lfast

Peak Other Flags

C benchmarks:

 -xjobs=16   -V   -#

C++ benchmarks:

 -xjobs=16   -verbose=diags,version

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss4.2.20090713.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss4.2.20090713.xml.
