| CPU2006 license: | 3 | Test date: | Jun-2008 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | May-2008 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5472 |
| CPU Characteristics: | 3.0 GHz, 2x6 MB L2 shared, 1600 MHz system bus |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 32 GB (8x4 GB PC2-6400F CL6) |
| Disk Subsystem: | 1x160 GB 7.2 K SATA |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 binutils-2.17.50 |

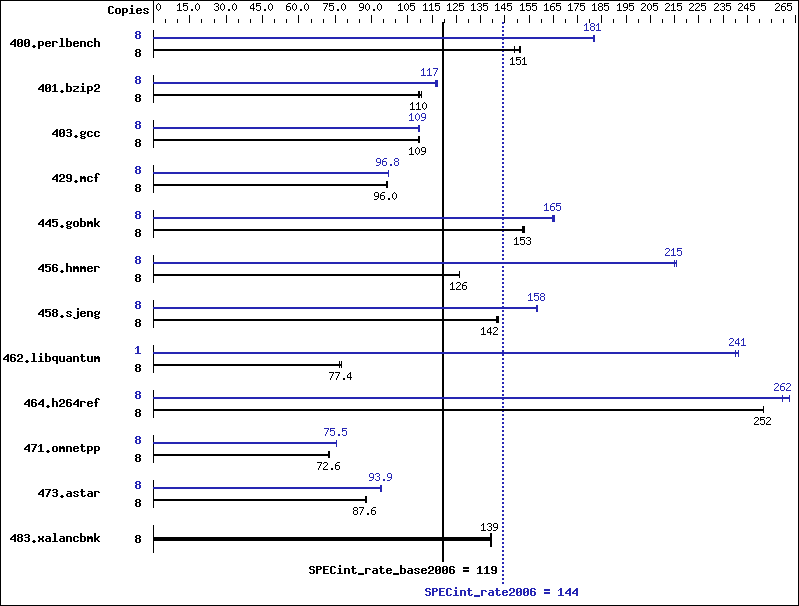

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 524 | 149 | 516 | 152 | 518 | 151 | 8 | 429 | 182 | 431 | 181 | 431 | 181 |
| 401.bzip2 | 8 | 699 | 110 | 704 | 110 | 705 | 109 | 8 | 663 | 116 | 660 | 117 | 658 | 117 |
| 403.gcc | 8 | 590 | 109 | 590 | 109 | 587 | 110 | 8 | 588 | 109 | 588 | 109 | 586 | 110 |
| 429.mcf | 8 | 755 | 96.6 | 760 | 96.0 | 760 | 96.0 | 8 | 754 | 96.8 | 753 | 96.9 | 754 | 96.8 |
| 445.gobmk | 8 | 547 | 153 | 551 | 152 | 550 | 153 | 8 | 508 | 165 | 509 | 165 | 508 | 165 |
| 456.hmmer | 8 | 591 | 126 | 591 | 126 | 591 | 126 | 8 | 347 | 215 | 347 | 215 | 346 | 216 |
| 458.sjeng | 8 | 680 | 142 | 683 | 142 | 683 | 142 | 8 | 613 | 158 | 611 | 158 | 611 | 158 |
| 462.libquantum | 8 | 2158 | 76.8 | 2141 | 77.4 | 2136 | 77.6 | 1 | 85.8 | 241 | 85.8 | 241 | 86.3 | 240 |
| 464.h264ref | 8 | 703 | 252 | 704 | 252 | 704 | 252 | 8 | 675 | 262 | 682 | 260 | 675 | 262 |
| 471.omnetpp | 8 | 689 | 72.6 | 688 | 72.7 | 692 | 72.2 | 8 | 663 | 75.4 | 662 | 75.5 | 662 | 75.5 |
| 473.astar | 8 | 643 | 87.4 | 640 | 87.8 | 641 | 87.6 | 8 | 596 | 94.3 | 599 | 93.8 | 598 | 93.9 |
| 483.xalancbmk | 8 | 396 | 139 | 397 | 139 | 397 | 139 | 8 | 396 | 139 | 397 | 139 | 397 | 139 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 64M
Platform Notes
BIOS configuration: Power Regulator set to Static High Performance Mode Adjacent Sector Prefetch Disabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/cpu2006/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/cpu2006/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/cpu2006/SmartHeap_8.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
