| CPU2006 license: | 22 | Test date: | May-2008 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Dec-2007 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5460 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 3167 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB PC2-5300F, 2 rank, CL 5-5-5, ECC) |
| Disk Subsystem: | 1x SAS, 73 GB, 15000 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64, Version 10.1, Build 20070913 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library, Version 8.1 binutils-2.17.50.0.5-0.1.x86_64 |

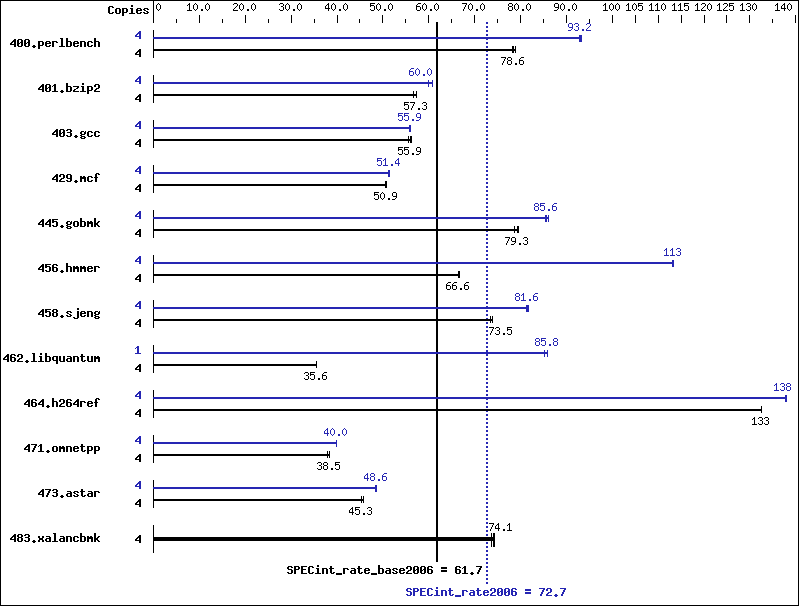

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 500 | 78.2 | 495 | 79.0 | 497 | 78.6 | 4 | 419 | 93.2 | 421 | 92.9 | 418 | 93.4 |
| 401.bzip2 | 4 | 674 | 57.3 | 674 | 57.3 | 680 | 56.7 | 4 | 634 | 60.9 | 643 | 60.0 | 643 | 60.0 |
| 403.gcc | 4 | 580 | 55.5 | 576 | 55.9 | 573 | 56.2 | 4 | 576 | 55.9 | 574 | 56.1 | 578 | 55.7 |
| 429.mcf | 4 | 717 | 50.9 | 717 | 50.9 | 721 | 50.6 | 4 | 708 | 51.5 | 710 | 51.4 | 711 | 51.3 |
| 445.gobmk | 4 | 529 | 79.3 | 527 | 79.6 | 533 | 78.8 | 4 | 491 | 85.4 | 490 | 85.6 | 488 | 86.0 |
| 456.hmmer | 4 | 560 | 66.6 | 561 | 66.5 | 560 | 66.6 | 4 | 330 | 113 | 329 | 113 | 329 | 113 |
| 458.sjeng | 4 | 659 | 73.5 | 659 | 73.4 | 656 | 73.8 | 4 | 593 | 81.6 | 593 | 81.6 | 595 | 81.4 |
| 462.libquantum | 4 | 2328 | 35.6 | 2330 | 35.6 | 2329 | 35.6 | 1 | 243 | 85.3 | 242 | 85.8 | 241 | 85.9 |
| 464.h264ref | 4 | 668 | 133 | 668 | 133 | 668 | 133 | 4 | 642 | 138 | 641 | 138 | 642 | 138 |
| 471.omnetpp | 4 | 650 | 38.5 | 650 | 38.5 | 657 | 38.0 | 4 | 625 | 40.0 | 626 | 40.0 | 625 | 40.0 |
| 473.astar | 4 | 620 | 45.3 | 614 | 45.8 | 621 | 45.2 | 4 | 577 | 48.6 | 578 | 48.6 | 579 | 48.5 |
| 483.xalancbmk | 4 | 375 | 73.6 | 371 | 74.3 | 373 | 74.1 | 4 | 375 | 73.6 | 371 | 74.3 | 373 | 74.1 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores (default)
Platform Notes
BIOS configuration: Adjacent Sector Prefetch = Disable
General Notes
All binaries were built with 32-bit Intel compiler except: 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel compiler by changing the path for include and library files. For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
