SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM BladeCenter LS22 (AMD Opteron 2356)

SPECint®_rate2006 = 105

CPU2006 license: 11 Test date: Jun-2008
Test sponsor: IBM Corporation Hardware Availability: Sep-2008
Tested by: IBM Corporation Software Availability: May-2008

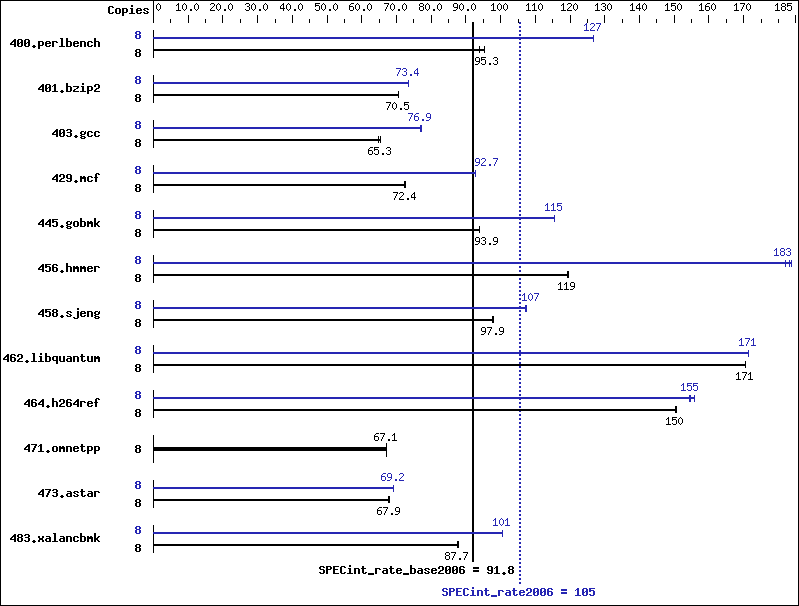

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2356
CPU Characteristics:
CPU MHz: 2300
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 2 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (8 x 4 GB DDR2-6400 ECC)
Disk Subsystem: 1 x 73 GB SAS, 10000 RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: PGI Server Complete Version 7.2
PathScale Compiler Suite Version 3.1
Auto Parallel: No
File System: ReiserFS
System State: Runlevel 3 (Full multiuser with network)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap 8.0 32-bit Library for Linux

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 831 94.0 819 95.4 820 95.3 8 616 127   616 127   617 127
401.bzip2 8 1094 70.6 1094 70.5 1095 70.5 8 1052 73.4 1052 73.4 1052 73.4
403.gcc 8 983 65.5 986 65.3 992 64.9 8 837 76.9 835 77.1 839 76.8
429.mcf 8 1007 72.5 1007 72.4 1008 72.4 8 787 92.7 787 92.7 786 92.8
445.gobmk 8 894 93.9 893 94.0 894 93.9 8 727 115   727 115   727 115
456.hmmer 8 624 120   625 119   627 119   8 408 183   410 182   406 184
458.sjeng 8 991 97.7 988 97.9 989 97.9 8 903 107   902 107   901 107
462.libquantum 8 972 170   972 171   972 171   8 967 171   967 171   967 171
464.h264ref 8 1177 150   1175 151   1178 150   8 1145 155   1135 156   1146 154
471.omnetpp 8 745 67.1 746 67.1 745 67.1 8 745 67.1 746 67.1 745 67.1
473.astar 8 827 67.9 827 67.9 828 67.8 8 812 69.2 811 69.2 812 69.2
483.xalancbmk 8 629 87.7 629 87.7 630 87.6 8 549 101   549 101   549 100

Operating System Notes

 'numactl' was used to bind copies to the cores
 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2457600'  was used to set environment locked pages in memory limit
 Environment variable PGI_HUGE_PAGES set to 150
 Set vm/nr_hugepages=1200 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages
 Processor Performance States Disabled in BIOS
 Memory ChipKill Disabled in BIOS

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -fastsse   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   --zc_eh   -tp barcelona   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -w   -Mipa=jobs:4

C++ benchmarks:

 -w   -Mipa=jobs:4

Peak Compiler Invocation

C benchmarks (except as noted below):

 pgcc
400.perlbench:  pathcc
403.gcc:  pathcc
445.gobmk:  pathcc

C++ benchmarks (except as noted below):

 pathCC
471.omnetpp:  pgcpp

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -IPA:plimit=20000   -LNO:opt=0   -WOPT:if_conv=0   -CG:local_sched_alg=1
401.bzip2:  -Mpfi(pass 1)   -Mpfo(pass 2)   -fast   -O4   -Msmartalloc=huge:150   -Mnounroll   -tp barcelona-64   -Bstatic_pgi
403.gcc:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -OPT:Ofast
429.mcf:  -fastsse   -Mipa=fast   -Mipa=inline:1   -Msmartalloc=huge:150   -tp barcelona   -Bstatic_pgi
445.gobmk:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=restrict   -LNO:opt=0   -CG:p2align=on
456.hmmer:  -fastsse   -Munroll=n:8   -Msmartalloc=huge:150   -Mfprelaxed   -Mvect=partial   -Msafeptr   -Mipa=const   -Mipa=ptr   -Mipa=arg   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
458.sjeng:  -Mpfi(pass 1)   -Mipa=fast(pass 2)   -Mipa=inline:1(pass 2)   -Mipa=noarg(pass 2)   -Mpfo(pass 2)   -fastsse   -Msmartalloc=huge:150   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
462.libquantum:  -fastsse   -Mfprelaxed   -Msmartalloc=huge:150   -Munroll=m:8   -Mipa=fast   -Mipa=inline   -Mipa=noarg   -tp barcelona-64   -Bstatic_pgi
464.h264ref:  -Mpfi=indirect(pass 1)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mpfo=indirect(pass 2)   -fastsse   -Msmartalloc=huge:150   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

471.omnetpp:  basepeak = yes
473.astar:  -march=barcelona   -Ofast   -TENV:frame_pointer=off   -WOPT:if_conv=0   -GRA:optimize_boundary=on   -IPA:plimit=525   -m32   -lsmartheap
483.xalancbmk:  -march=barcelona   -Ofast   -m32   -OPT:unroll_times_max=8   -CG:push_pop_int_saved_regs=off   -CG:ptr_load_use=0   -lsmartheap

Peak Other Flags

C benchmarks (except as noted below):

 -w   -Mipa=jobs:4(pass 2)
400.perlbench:  No flags used
401.bzip2:  -w
403.gcc:  No flags used
445.gobmk:  No flags used

C++ benchmarks (except as noted below):

 -L/root/work/cpu2006/amd123GH.libs/32
471.omnetpp:  -w   -Mipa=jobs:4

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd123GH-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/amd123GH-flags.xml.
