CPU2006 license: | 11 | Test date: | Jun-2008 |
---|---|---|---|
Test sponsor: | IBM Corporation | Hardware Availability: | Sep-2008 |
Tested by: | IBM Corporation | Software Availability: | May-2008 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 8356 |
CPU Characteristics: | |
CPU MHz: | 2300 |
FPU: | Integrated |
CPU(s) enabled: | 16 cores, 4 chips, 4 cores/chip |
CPU(s) orderable: | 1,2,3,4 chips |
Primary Cache: | 64 KB I + 64 KB D on chip per core |
Secondary Cache: | 512 KB I+D on chip per core |
L3 Cache: | 2 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 64 GB (16 x 4 GB DDR2-6400 ECC) |
Disk Subsystem: | 1 x 73 GB SAS, 10000 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
Compiler: | PGI Server Complete Version 7.2 PathScale Compiler Suite Version 3.1 |
Auto Parallel: | No |
File System: | ext2 |
System State: | Runlevel 3 (Full multiuser with network) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | SmartHeap 8.0 32-bit Library for Linux |

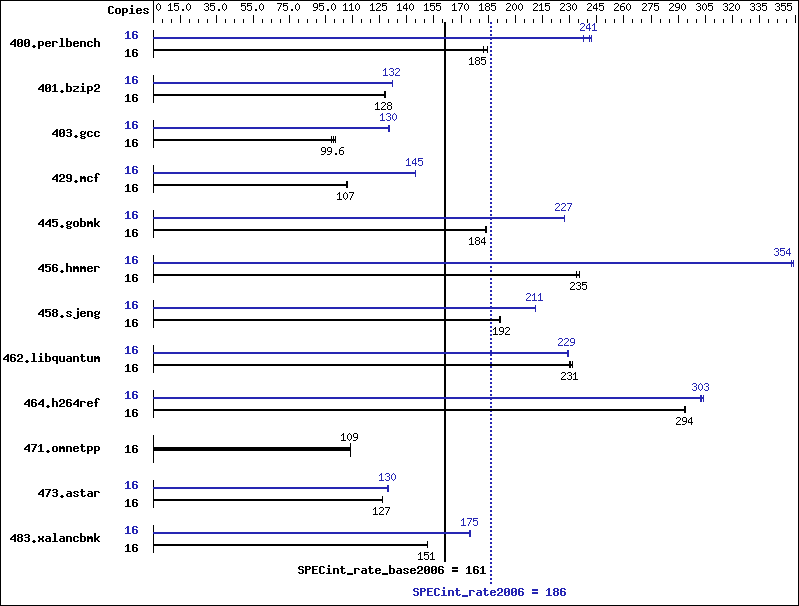

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 16 | 847 | 185 | 857 | 182 | 847 | 185 | 16 | 648 | 241 | 658 | 238 | 646 | 242 |
401.bzip2 | 16 | 1209 | 128 | 1205 | 128 | 1207 | 128 | 16 | 1167 | 132 | 1171 | 132 | 1168 | 132 |
403.gcc | 16 | 1293 | 99.6 | 1307 | 98.6 | 1281 | 101 | 16 | 987 | 130 | 993 | 130 | 988 | 130 |
429.mcf | 16 | 1364 | 107 | 1369 | 107 | 1365 | 107 | 16 | 1008 | 145 | 1008 | 145 | 1008 | 145 |
445.gobmk | 16 | 913 | 184 | 914 | 184 | 915 | 183 | 16 | 739 | 227 | 739 | 227 | 739 | 227 |
456.hmmer | 16 | 634 | 235 | 635 | 235 | 638 | 234 | 16 | 423 | 353 | 422 | 354 | 422 | 354 |
458.sjeng | 16 | 1011 | 192 | 1012 | 191 | 1011 | 192 | 16 | 917 | 211 | 918 | 211 | 917 | 211 |
462.libquantum | 16 | 1442 | 230 | 1430 | 232 | 1437 | 231 | 16 | 1450 | 229 | 1450 | 229 | 1445 | 229 |
464.h264ref | 16 | 1207 | 293 | 1203 | 294 | 1203 | 294 | 16 | 1171 | 302 | 1168 | 303 | 1166 | 304 |
471.omnetpp | 16 | 916 | 109 | 916 | 109 | 916 | 109 | 16 | 916 | 109 | 916 | 109 | 916 | 109 |
473.astar | 16 | 887 | 127 | 886 | 127 | 886 | 127 | 16 | 867 | 130 | 865 | 130 | 865 | 130 |
483.xalancbmk | 16 | 729 | 151 | 729 | 151 | 730 | 151 | 16 | 631 | 175 | 631 | 175 | 631 | 175 |
'numactl' was used to bind copies to the cores 'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 4915200' was used to set environment locked pages in memory limit Environment variable PGI_HUGE_PAGES set to 896 Set vm/nr_hugepages=14336 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages Processor Performance States Disabled in BIOS Memory ChipKill Disabled in BIOS
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-fast -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:150 -tp barcelona-64 -Bstatic_pgi |
-fastsse -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:150 --zc_eh -tp barcelona -Bstatic_pgi |
pgcc | |
400.perlbench: | pathcc |
403.gcc: | pathcc |
445.gobmk: | pathcc |
pathCC | |
471.omnetpp: | pgcpp |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
471.omnetpp: | basepeak = yes |
473.astar: | -march=barcelona -Ofast -TENV:frame_pointer=off -WOPT:if_conv=0 -GRA:optimize_boundary=on -IPA:plimit=525 -m32 -lsmartheap |
483.xalancbmk: | -march=barcelona -Ofast -m32 -OPT:unroll_times_max=8 -CG:push_pop_int_saved_regs=off -CG:ptr_load_use=0 -lsmartheap |
-w -Mipa=jobs:4(pass 2) | |
400.perlbench: | No flags used |
401.bzip2: | -w |
403.gcc: | No flags used |
445.gobmk: | No flags used |
-L/root/work/cpu2006/amd123GH.libs/32 | |
471.omnetpp: | -w -Mipa=jobs:4 |
