CPU2006 license: | 11 | Test date: | Jun-2008 |
---|---|---|---|
Test sponsor: | IBM Corporation | Hardware Availability: | Jul-2008 |
Tested by: | Advanced Micro Devices | Software Availability: | Jun-2008 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 8356 |
CPU Characteristics: | |
CPU MHz: | 2300 |
FPU: | Integrated |
CPU(s) enabled: | 16 cores, 4 chips, 4 cores/chip |
CPU(s) orderable: | 1,2,3,4 chips |
Primary Cache: | 64 KB I + 64 KB D on chip per core |
Secondary Cache: | 512 KB I+D on chip per core |
L3 Cache: | 2 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 32 GB (16 x 2 GB, DDR2-667 CL5 Reg Dual Rank) |
Disk Subsystem: | 1 x 73.4 GB SAS, 15000 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
Compiler: | PGI Server Complete Version 7.2 PathScale Compiler Suite Version 3.2 |
Auto Parallel: | No |
File System: | ReiserFS |
System State: | Run level 3 (Full multiuser with network) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | SmartHeap 8.0 32-bit Library for Linux |

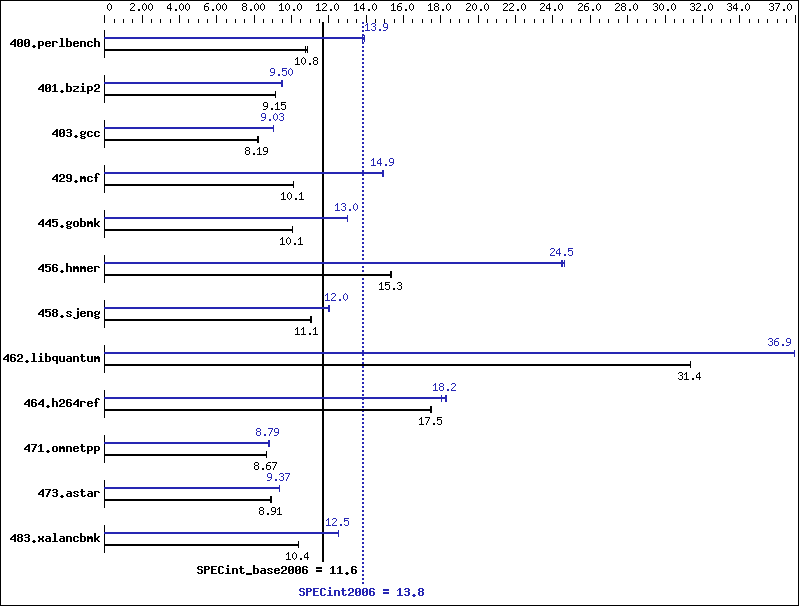

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 901 | 10.8 | 901 | 10.8 | 910 | 10.7 | 708 | 13.8 | 701 | 13.9 | 703 | 13.9 |
401.bzip2 | 1055 | 9.15 | 1055 | 9.15 | 1055 | 9.15 | 1017 | 9.48 | 1015 | 9.51 | 1016 | 9.50 |
403.gcc | 983 | 8.19 | 981 | 8.21 | 982 | 8.19 | 891 | 9.03 | 892 | 9.03 | 890 | 9.04 |
429.mcf | 902 | 10.1 | 902 | 10.1 | 902 | 10.1 | 612 | 14.9 | 612 | 14.9 | 612 | 14.9 |
445.gobmk | 1041 | 10.1 | 1041 | 10.1 | 1042 | 10.1 | 806 | 13.0 | 806 | 13.0 | 806 | 13.0 |
456.hmmer | 607 | 15.4 | 609 | 15.3 | 608 | 15.3 | 381 | 24.5 | 381 | 24.5 | 379 | 24.6 |
458.sjeng | 1093 | 11.1 | 1092 | 11.1 | 1100 | 11.0 | 1007 | 12.0 | 1009 | 12.0 | 1006 | 12.0 |
462.libquantum | 660 | 31.4 | 661 | 31.4 | 660 | 31.4 | 561 | 36.9 | 561 | 36.9 | 561 | 36.9 |
464.h264ref | 1264 | 17.5 | 1269 | 17.4 | 1265 | 17.5 | 1226 | 18.0 | 1213 | 18.2 | 1211 | 18.3 |
471.omnetpp | 721 | 8.67 | 722 | 8.66 | 721 | 8.67 | 710 | 8.80 | 713 | 8.77 | 711 | 8.79 |
473.astar | 788 | 8.91 | 789 | 8.90 | 786 | 8.93 | 750 | 9.37 | 749 | 9.37 | 751 | 9.34 |
483.xalancbmk | 664 | 10.4 | 665 | 10.4 | 665 | 10.4 | 550 | 12.5 | 552 | 12.5 | 551 | 12.5 |
'numactl' was used to bind copies to the cores 'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit Environment variable PGI_HUGE_PAGES set to 896 Set vm/nr_hugepages=3584 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages powersave -f was used to set the CPU frequency to its maximum.
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-fastsse -Msmartalloc=huge:150 -Mfprelaxed -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi |
-fastsse -Msmartalloc=huge:150 -Mfprelaxed --zc_eh -Mipa=fast -Mipa=inline -tp barcelona -Bstatic_pgi |
pgcc | |
400.perlbench: | pathcc |
403.gcc: | pathcc |
445.gobmk: | pathcc |
464.h264ref: | pathcc |
pathCC | |
473.astar: | pgcpp |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
471.omnetpp: | -march=barcelona -Ofast -CG:gcm=off -INLINE:aggressive=on -OPT:alias=disjoint -WOPT:if_conv=0 -m32 -lsmartheap |
473.astar: | -Mpfi(pass 1) -Mpfo(pass 2) -Mipa=fast(pass 2) -Mipa=inline:6(pass 2) -fastsse -O4 -Msmartalloc=huge:150 -Msafeptr=global -Mfprelaxed --zc_eh -tp barcelona -Bstatic_pgi |
483.xalancbmk: | -march=barcelona -Ofast -OPT:unroll_times_max=8 -CG:push_pop_int_saved_regs=off -CG:ptr_load_use=0 -m32 -lsmartheap |
429.mcf: | -Mipa=jobs:4 |
456.hmmer: | -Mipa=jobs:4 |
458.sjeng: | -Mipa=jobs:4(pass 2) |
462.libquantum: | -Mipa=jobs:4 |
-L/root/work/cpu2006-amd421gh/amd421gh.libs/32 | |
473.astar: | -Mipa=jobs:4(pass 2) |
