SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

CELSIUS V840, AMD Opteron 2354 (2.2 GHz)

CPU2006 license: 22 Test date: May-2008
Test sponsor: Fujitsu Siemens Computers Hardware Availability: May-2008
Tested by: Fujitsu Siemens Computers Software Availability: May-2008

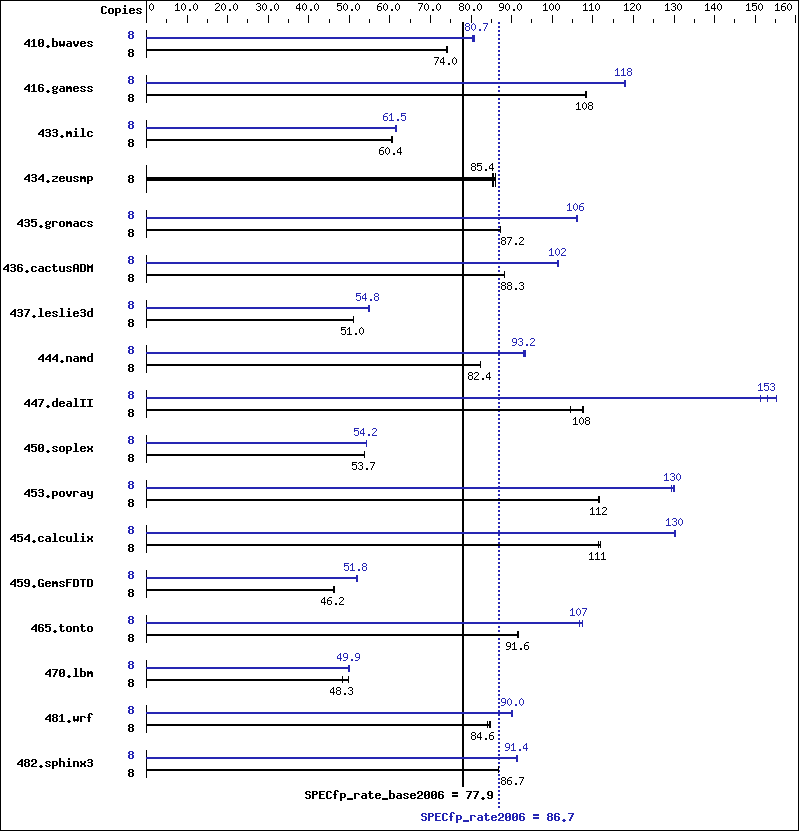

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2354
CPU Characteristics:
CPU MHz: 2200
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 2 MB I+D on chip per chip
Other Cache: None
Memory: 16 GB (8x2GB PC2-5300P, CL5, dual rank ECC)
Disk Subsystem: 1 x 400 GB SATA II, 7200 rpm
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: PGI Workstation Complete Version 7.2-1
PathScale Compiler Suite, Release 3.2 Beta
Auto Parallel: No
File System: ext3
System State: Multi-User SuSE Run Level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: binutils 2.18.50

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 1468 74.1 1468 74.0 1469 74.0 8 1345 80.8 1348 80.7 1355 80.3
416.gamess 8 1445 108   1446 108   1446 108   8 1328 118   1328 118   1329 118
433.milc 8 1214 60.5 1215 60.4 1215 60.4 8 1194 61.5 1195 61.5 1195 61.5
434.zeusmp 8 852 85.4 854 85.3 847 85.9 8 852 85.4 854 85.3 847 85.9
435.gromacs 8 655 87.2 655 87.2 655 87.3 8 539 106   538 106   539 106
436.cactusADM 8 1083 88.3 1084 88.2 1083 88.3 8 941 102   945 101   941 102
437.leslie3d 8 1474 51.0 1476 51.0 1474 51.0 8 1370 54.9 1373 54.8 1372 54.8
444.namd 8 779 82.4 780 82.3 779 82.4 8 690 93.0 688 93.3 688 93.2
447.dealII 8 851 108   851 108   876 104   8 598 153   590 155   605 151
450.soplex 8 1240 53.8 1242 53.7 1243 53.7 8 1230 54.2 1228 54.3 1231 54.2
453.povray 8 381 112   382 111   381 112   8 327 130   328 130   329 129
454.calculix 8 590 112   592 111   593 111   8 506 130   506 130   507 130
459.GemsFDTD 8 1836 46.2 1838 46.2 1839 46.2 8 1635 51.9 1639 51.8 1639 51.8
465.tonto 8 861 91.5 860 91.6 858 91.8 8 737 107   738 107   733 107
470.lbm 8 2276 48.3 2279 48.2 2208 49.8 8 2200 50.0 2202 49.9 2203 49.9
481.wrf 8 1062 84.1 1055 84.7 1056 84.6 8 994 89.9 990 90.2 992 90.0
482.sphinx3 8 1799 86.7 1799 86.7 1796 86.8 8 1710 91.2 1705 91.4 1703 91.5

Operating System Notes

 powersave -f is applied to set CPU to maximum frequency prior to run
 stacksize is set to unlimited prior to run
 ulimit -l 2457600
 PGI_HUGE_PAGES set to 150
 (Total number of huge pages available is 1200)

General Notes



The command numactl has been used to bind processes to CPUs

For information about Fujitsu Siemens Computers please see:
http://www.fujitsu-siemens.com

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fastsse   -Msmartalloc=huge:150   -Mfprelaxed   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -fastsse   -Msmartalloc=huge:150   -Mfprelaxed   --zc_eh   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Fortran benchmarks:

 -fastsse   -Mfprelaxed   -Msmartalloc=huge:150   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -fastsse   -Msmartalloc=huge:150   -Mfprelaxed   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Peak Compiler Invocation

C benchmarks (except as noted below):

 pgcc
470.lbm:  pathcc

C++ benchmarks (except as noted below):

 pathCC
444.namd:  pgcpp

Fortran benchmarks (except as noted below):

 pathf95
410.bwaves:  pgf95
434.zeusmp:  pgf95
437.leslie3d:  pgf95

Benchmarks using both Fortran and C (except as noted below):

 pgcc   pgf95
436.cactusADM:  pathcc   pathf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -fastsse   -Msmartalloc=huge:150   -Msafeptr   -Mfprelaxed   -Mipa=jobs:4   -Mipa=inline   -Mipa=arg   -Mipa=const   -Mipa=ptr   -Mipa=shape   -tp barcelona-64   -Bstatic_pgi
470.lbm:  -march=barcelona   -Ofast   -CG:sse_cse_regs=0   -CG:locs_shallow_depth=1   -m3dnow
482.sphinx3:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=jobs:4(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fastsse   -Mfprelaxed   -Msmartalloc   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=jobs:4(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fastsse   -Munroll=n:4   -Munroll=m:8   -Msmartalloc=huge:150   -Mnodepchk   -Mfprelaxed   --zc_eh   -tp barcelona-64   -Bstatic_pgi
447.dealII:  -march=barcelona   -Ofast   -static   -INLINE:aggressive=on   -fno-exceptions   -m32
450.soplex:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -TENV:frame_pointer=off   -LNO:prefetch=1   -OPT:malloc_alg=1   -CG:load_exe=0   -m32
453.povray:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast

Fortran benchmarks:

410.bwaves:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=jobs:4(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fastsse   -Msmartalloc   -Mprefetch=distance:12   -Mprefetch=nta   -Mpre   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
416.gamess:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O2   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256
434.zeusmp:  basepeak = yes
437.leslie3d:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=jobs:4(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fastsse   -Mvect=fuse   -Msmartalloc=huge:150   -Mprefetch=distance:8   -Mprefetch=t0   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
459.GemsFDTD:  -march=barcelona   -Ofast   -LNO:fission=2   -LNO:simd=2   -LNO:prefetch_ahead=1   -CG:load_exe=0
465.tonto:  -march=barcelona   -Ofast   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -IPA:plimit=525

Benchmarks using both Fortran and C:

435.gromacs:  -fastsse   -Msmartalloc=huge:150   -Mfprelaxed   -Mfpapprox=rsqrt   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
436.cactusADM:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:blocking=off
454.calculix:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=jobs:4(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fastsse   -Msmartalloc=huge:150   -Mprefetch=t0   -Mpre   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
481.wrf:  -fastsse   -Mvect=noaltcode   -Msmartalloc   -Mprefetch=distance:8   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/fsc-mix-pgi-path.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/fsc-mix-pgi-path.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2016 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Sep 13 11:31:11 2016 by SPEC CPU2006 HTML formatter v6932.
Originally published on 8 July 2008.
