CPU2006 license: | 9008 | Test date: | May-2008 |
---|---|---|---|
Test sponsor: | ACTION S.A. | Hardware Availability: | Dec-2007 |
Tested by: | ACTION S.A. | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5410 |
CPU Characteristics: | 2.33 GHz, 12 MB L2, 1333 MHz bus |
CPU MHz: | 2330 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (8x 2 GB PC2-5300 ECC FBDIMM) |
Disk Subsystem: | 1x 160 GB SATA II, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
Compiler: | Intel C++ and Fortran Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008, l_fc_p_10.1.008 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Multi-user, run level 3 |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.17.50.0.15 |

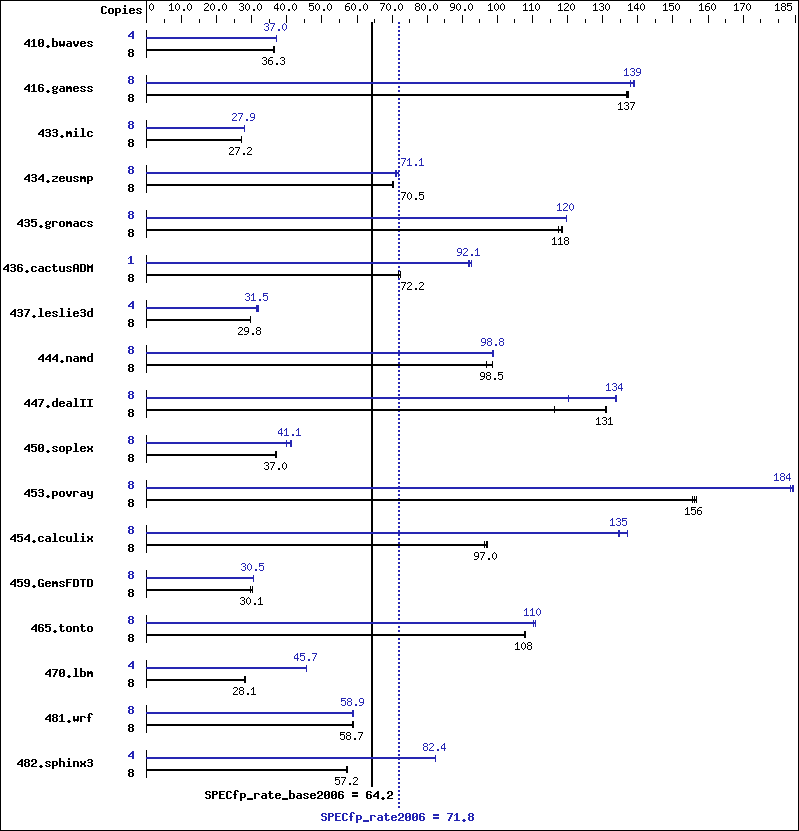

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 2992 | 36.3 | 2992 | 36.3 | 2994 | 36.3 | 4 | 1468 | 37.0 | 1468 | 37.0 | 1467 | 37.0 |
416.gamess | 8 | 1143 | 137 | 1146 | 137 | 1140 | 137 | 8 | 1136 | 138 | 1126 | 139 | 1130 | 139 |
433.milc | 8 | 2700 | 27.2 | 2701 | 27.2 | 2705 | 27.1 | 8 | 2631 | 27.9 | 2628 | 27.9 | 2629 | 27.9 |
434.zeusmp | 8 | 1033 | 70.5 | 1033 | 70.5 | 1039 | 70.1 | 8 | 1024 | 71.1 | 1024 | 71.1 | 1016 | 71.7 |
435.gromacs | 8 | 483 | 118 | 482 | 119 | 487 | 117 | 8 | 478 | 120 | 477 | 120 | 477 | 120 |
436.cactusADM | 8 | 1323 | 72.3 | 1330 | 71.9 | 1323 | 72.2 | 1 | 129 | 92.7 | 130 | 92.1 | 130 | 91.7 |
437.leslie3d | 8 | 2526 | 29.8 | 2526 | 29.8 | 2526 | 29.8 | 4 | 1180 | 31.9 | 1192 | 31.5 | 1197 | 31.4 |
444.namd | 8 | 663 | 96.8 | 651 | 98.5 | 652 | 98.5 | 8 | 651 | 98.6 | 649 | 98.8 | 648 | 99.0 |
447.dealII | 8 | 787 | 116 | 699 | 131 | 700 | 131 | 8 | 760 | 120 | 686 | 134 | 684 | 134 |
450.soplex | 8 | 1817 | 36.7 | 1805 | 37.0 | 1801 | 37.1 | 8 | 1667 | 40.0 | 1623 | 41.1 | 1610 | 41.4 |
453.povray | 8 | 272 | 157 | 272 | 156 | 274 | 155 | 8 | 232 | 183 | 231 | 184 | 231 | 184 |
454.calculix | 8 | 680 | 97.0 | 686 | 96.3 | 680 | 97.0 | 8 | 491 | 134 | 489 | 135 | 482 | 137 |
459.GemsFDTD | 8 | 2819 | 30.1 | 2870 | 29.6 | 2819 | 30.1 | 8 | 2780 | 30.5 | 2776 | 30.6 | 2781 | 30.5 |
465.tonto | 8 | 731 | 108 | 731 | 108 | 729 | 108 | 8 | 714 | 110 | 714 | 110 | 711 | 111 |
470.lbm | 8 | 3921 | 28.0 | 3907 | 28.1 | 3909 | 28.1 | 4 | 1203 | 45.7 | 1204 | 45.7 | 1203 | 45.7 |
481.wrf | 8 | 1524 | 58.6 | 1522 | 58.7 | 1512 | 59.1 | 8 | 1518 | 58.9 | 1517 | 58.9 | 1519 | 58.8 |
482.sphinx3 | 8 | 2726 | 57.2 | 2727 | 57.2 | 2736 | 57.0 | 4 | 946 | 82.4 | 946 | 82.4 | 948 | 82.2 |
All benchmarks compiled in 64-bit mode except 450.soplex, 437.leslie, 470.lbm and 482.sphinx3, at peak, are compiled in 32-bit mode. TASKSET command was used to bind processes to CPUs.
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-fast |
-fast |
-fast |
-fast |
/opt/intel/cc/10.1.008/bin/icc -L/opt/intel/cc/10.1.008/lib -I/opt/intel/cc/10.1.008/include | |
433.milc: | icc |
icpc | |
450.soplex: | /opt/intel/cc/10.1.008/bin/icpc -L/opt/intel/cc/10.1.008/lib -I/opt/intel/cc/10.1.008/include |
ifort | |
437.leslie3d: | /opt/intel/fc/10.1.008/bin/ifort -L/opt/intel/fc/10.1.008/lib -I/opt/intel/fc/10.1.008/include |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
470.lbm: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -scalar-rep- -prefetch -opt-malloc-options=3 |
482.sphinx3: | -fast -unroll2 |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -fast -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -ansi-alias |
410.bwaves: | -fast -prefetch |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
437.leslie3d: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -opt-malloc-options=3 |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -prefetch |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -prefetch -parallel -auto-ilp32 |
454.calculix: | -fast -unroll-aggressive -auto-ilp32 |
481.wrf: | -fast -auto-ilp32 |
