| CPU2006 license: | 49 | Test date: | Apr-2008 |
|---|---|---|---|
| Test sponsor: | Advanced Micro Devices | Hardware Availability: | Nov-2007 |
| Tested by: | Advanced Micro Devices | Software Availability: | Mar-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5440 |
| CPU Characteristics: | |
| CPU MHz: | 2833 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2GB, DDR2-667 FBDIMM CL5 Dual Rank) |
| Disk Subsystem: | 1 x 120 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | gcc, g++, gfortran 4.3.0 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Runlevel 3 (Full multiuser with network) |
| Base Pointers: | 64-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | None |

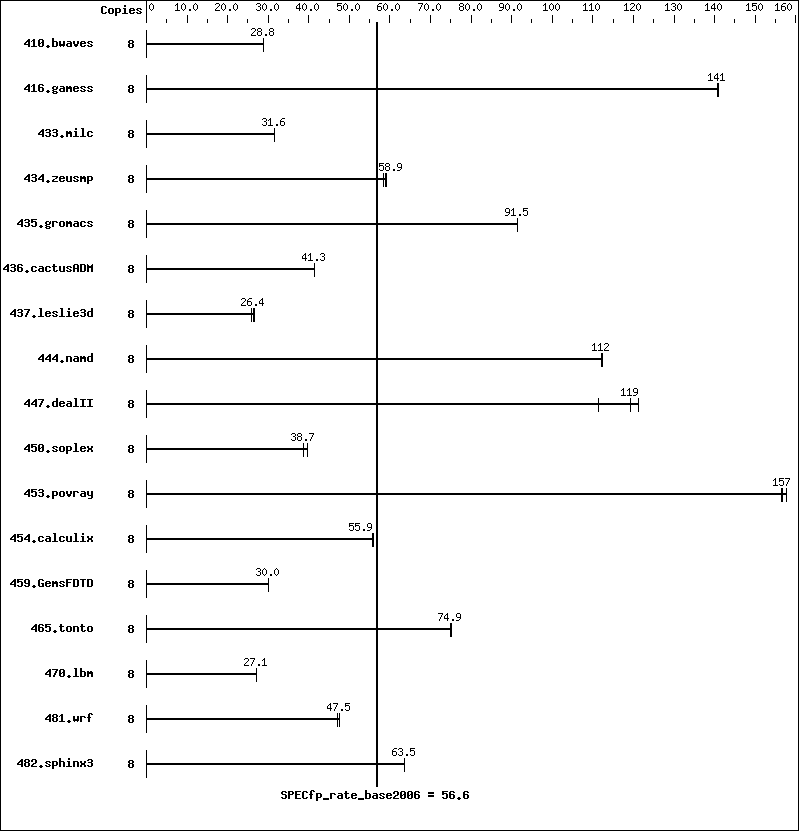

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 8 | 3776 | 28.8 | 3771 | 28.8 | 3773 | 28.8 | |||||||
| 416.gamess | 8 | 1113 | 141 | 1114 | 141 | 1112 | 141 | |||||||
| 433.milc | 8 | 2328 | 31.6 | 2324 | 31.6 | 2333 | 31.5 | |||||||
| 434.zeusmp | 8 | 1232 | 59.1 | 1236 | 58.9 | 1247 | 58.4 | |||||||
| 435.gromacs | 8 | 625 | 91.5 | 624 | 91.5 | 625 | 91.4 | |||||||
| 436.cactusADM | 8 | 2314 | 41.3 | 2315 | 41.3 | 2311 | 41.4 | |||||||
| 437.leslie3d | 8 | 2902 | 25.9 | 2852 | 26.4 | 2830 | 26.6 | |||||||
| 444.namd | 8 | 571 | 112 | 572 | 112 | 572 | 112 | |||||||
| 447.dealII | 8 | 755 | 121 | 822 | 111 | 768 | 119 | |||||||
| 450.soplex | 8 | 1677 | 39.8 | 1726 | 38.7 | 1728 | 38.6 | |||||||
| 453.povray | 8 | 270 | 158 | 271 | 157 | 272 | 156 | |||||||
| 454.calculix | 8 | 1183 | 55.8 | 1181 | 55.9 | 1180 | 55.9 | |||||||
| 459.GemsFDTD | 8 | 2826 | 30.0 | 2828 | 30.0 | 2815 | 30.1 | |||||||
| 465.tonto | 8 | 1049 | 75.1 | 1052 | 74.8 | 1052 | 74.9 | |||||||
| 470.lbm | 8 | 4065 | 27.0 | 4044 | 27.2 | 4052 | 27.1 | |||||||
| 481.wrf | 8 | 1882 | 47.5 | 1898 | 47.1 | 1879 | 47.5 | |||||||
| 482.sphinx3 | 8 | 2453 | 63.6 | 2457 | 63.5 | 2455 | 63.5 | |||||||
Operating System Notes
'numactl' was used to bind copies to the cores
Base Compiler Invocation
C benchmarks:
| gcc |
C++ benchmarks:
| g++ |
Fortran benchmarks:
| gfortran |
Benchmarks using both Fortran and C:
| gcc gfortran |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 |
| 436.cactusADM: | -DSPEC_CPU_LP64 |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
