SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Itautec

Servidor Itautec LX211 (Intel Xeon E5440)

CPU2006 license: 9001 Test date: May-2008
Test sponsor: Itautec Hardware Availability: Dec-2007
Tested by: Itautec Software Availability: Jan-2008

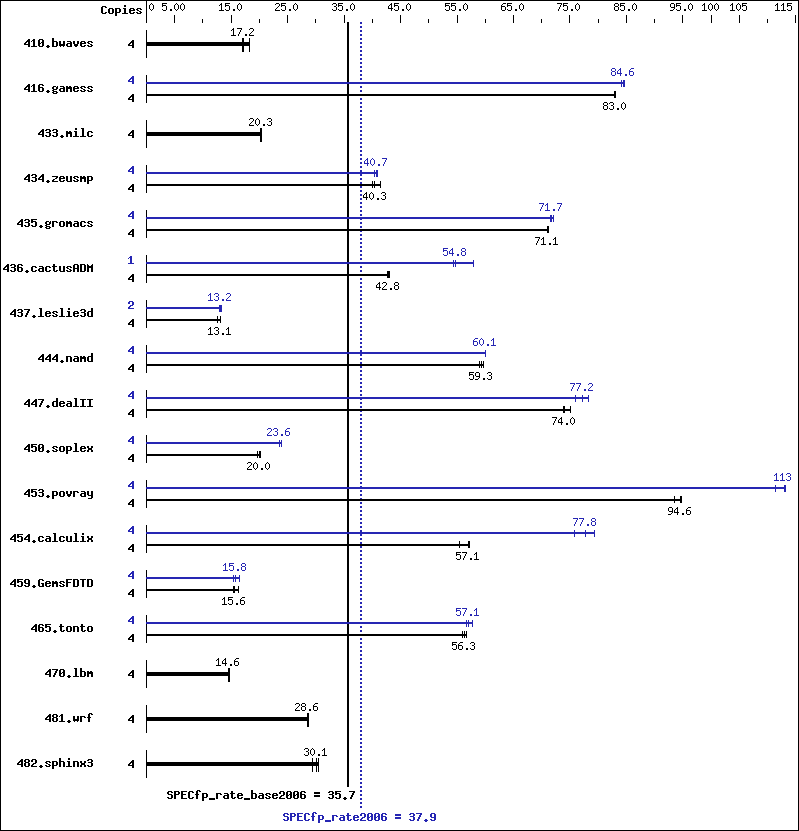

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5440
CPU Characteristics:
CPU MHz: 2830
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 12 GB (6 * 2 GB PC2-5300 FBDIMM, CL-5-5-5, ECC)
Disk Subsystem: 1 x SCSI, 73GB, 10000 RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: Intel C++ and Fortran Compiler for Linux version
10.1
Build 20080112 Package ID: l_cc_p_10.1.012,
l_fc_p_10.1.012
Auto Parallel: Yes
File System: ReiserFS
System State: Run Level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: Binutils 2.17.10.50

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 2989 18.2 3189 17.0 3164 17.2 4 2989 18.2 3189 17.0 3164 17.2
416.gamess 4 943 83.0 944 83.0 944 83.0 4 931 84.1 925 84.7 926 84.6
433.milc 4 1806 20.3 1811 20.3 1800 20.4 4 1806 20.3 1811 20.3 1800 20.4
434.zeusmp 4 903 40.3 880 41.4 908 40.1 4 894 40.7 891 40.8 900 40.5
435.gromacs 4 402 71.1 401 71.2 402 71.1 4 398 71.7 396 72.1 399 71.6
436.cactusADM 4 1116 42.8 1112 43.0 1118 42.8 1 206 58.0 220 54.3 218 54.8
437.leslie3d 4 3001 12.5 2863 13.1 2879 13.1 2 1421 13.2 1429 13.2 1446 13.0
444.namd 4 538 59.6 541 59.3 544 58.9 4 534 60.1 534 60.0 534 60.1
447.dealII 4 610 75.0 619 73.9 618 74.0 4 585 78.2 603 75.9 593 77.2
450.soplex 4 1704 19.6 1666 20.0 1648 20.2 4 1395 23.9 1412 23.6 1415 23.6
453.povray 4 228 93.5 225 94.6 225 94.7 4 188 113   188 113   191 111
454.calculix 4 596 55.4 578 57.1 576 57.3 4 416 79.4 424 77.8 435 75.9
459.GemsFDTD 4 2601 16.3 2716 15.6 2746 15.5 4 2580 16.4 2690 15.8 2750 15.4
465.tonto 4 703 56.0 700 56.3 694 56.7 4 681 57.8 689 57.1 695 56.6
470.lbm 4 3770 14.6 3779 14.5 3740 14.7 4 3770 14.6 3779 14.5 3740 14.7
481.wrf 4 1560 28.6 1563 28.6 1569 28.5 4 1560 28.6 1563 28.6 1569 28.5
482.sphinx3 4 2658 29.3 2566 30.4 2591 30.1 4 2658 29.3 2566 30.4 2591 30.1

Compiler Invocation Notes

   OMP_NUM_THREADS set to number of cores
   KMP_STACK_SIZE set to 64M
   KMP_AFFINITY set to physical,0

Operating System Notes

  'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run.
 '/usr/bin/taskset' is used to bind benchmark copies to processor, except for 436.cactusADM at peak.

Platform Notes

  BIOS configuration:
  Hardware Prefetch Disabled

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/10.1.012/bin/icpc   -L/opt/intel/cc/10.1.012/lib   -I/opt/intel/cc/10.1.012/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /opt/intel/fc/10.1.012/bin/ifort   -L/opt/intel/fc/10.1.012/lib   -I/opt/intel/fc/10.1.012/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
437.leslie3d:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -opt-malloc-options=3
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -prefetch
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -prefetch   -parallel   -auto-ilp32
454.calculix:  -fast   -unroll-aggressive   -auto-ilp32
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Itautec-ic10.1-FP-intel64-linux-flags.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Itautec-ic10.1-FP-intel64-linux-flags.20090714.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.1.
Report generated on Tue Jul 22 17:30:18 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 11 June 2008.
