| CPU2006 license: | 001176 | Test date: | Mar-2008 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Nov-2007 |
| Tested by: | Supermicro | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5440 |
| CPU Characteristics: | Quad Core, 2.83 GHz, 1333 MHz System Bus |
| CPU MHz: | 2833 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 32 GB (8 X 4 GB ECC PC2-5300, CL5, FBDIMM) |
| Disk Subsystem: | SAMSUNG HD501LJ 500 GB SATA II, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | 64-Bit SUSE Linux Enterprise Server 10 SP1 |
| Compiler: | Intel C++ and Fortran Compiler for Linux32 and Linux64 version 10.1 Build 20070725 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 Binutils 2.17.50.0.15 |

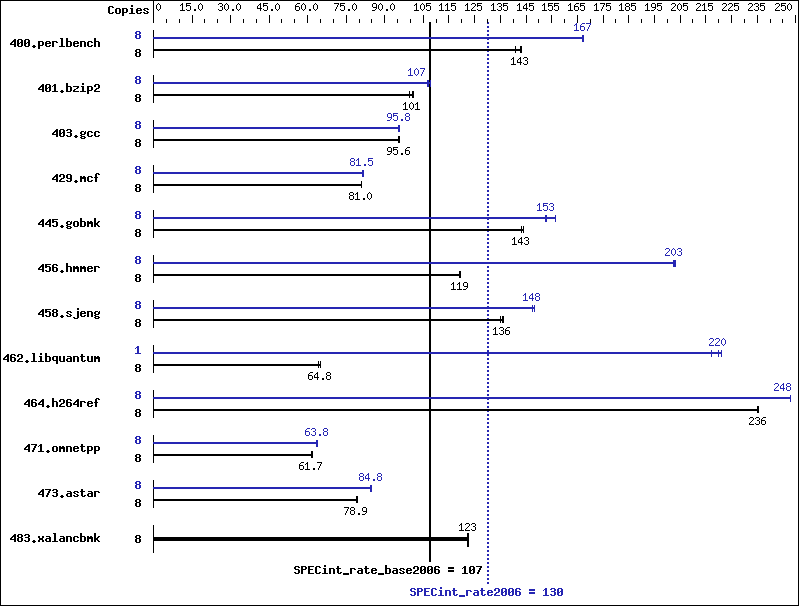

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 545 | 143 | 555 | 141 | 547 | 143 | 8 | 467 | 167 | 467 | 167 | 468 | 167 |
| 401.bzip2 | 8 | 774 | 99.8 | 765 | 101 | 762 | 101 | 8 | 725 | 106 | 716 | 108 | 722 | 107 |
| 403.gcc | 8 | 674 | 95.6 | 675 | 95.4 | 673 | 95.7 | 8 | 672 | 95.8 | 676 | 95.3 | 672 | 95.8 |
| 429.mcf | 8 | 901 | 81.0 | 900 | 81.0 | 901 | 81.0 | 8 | 895 | 81.5 | 894 | 81.6 | 896 | 81.4 |
| 445.gobmk | 8 | 583 | 144 | 586 | 143 | 586 | 143 | 8 | 537 | 156 | 550 | 153 | 549 | 153 |
| 456.hmmer | 8 | 626 | 119 | 625 | 119 | 626 | 119 | 8 | 369 | 202 | 368 | 203 | 367 | 203 |
| 458.sjeng | 8 | 711 | 136 | 712 | 136 | 717 | 135 | 8 | 656 | 147 | 656 | 148 | 653 | 148 |
| 462.libquantum | 8 | 2574 | 64.4 | 2557 | 64.8 | 2553 | 64.9 | 1 | 93.7 | 221 | 94.2 | 220 | 95.3 | 217 |
| 464.h264ref | 8 | 752 | 235 | 752 | 236 | 752 | 236 | 8 | 714 | 248 | 714 | 248 | 714 | 248 |
| 471.omnetpp | 8 | 811 | 61.7 | 809 | 61.8 | 813 | 61.5 | 8 | 788 | 63.5 | 784 | 63.8 | 784 | 63.8 |
| 473.astar | 8 | 712 | 78.8 | 708 | 79.3 | 712 | 78.9 | 8 | 662 | 84.8 | 662 | 84.9 | 665 | 84.5 |
| 483.xalancbmk | 8 | 451 | 122 | 450 | 123 | 450 | 123 | 8 | 451 | 122 | 450 | 123 | 450 | 123 |
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, which are compiled in 64-bit mode OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0"
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
