SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Itautec

Servidor Itautec MX201 (Intel Xeon X5450)

CPU2006 license: 9001 Test date: May-2008
Test sponsor: Itautec Hardware Availability: Dec-2007
Tested by: Itautec Software Availability: Jan-2008

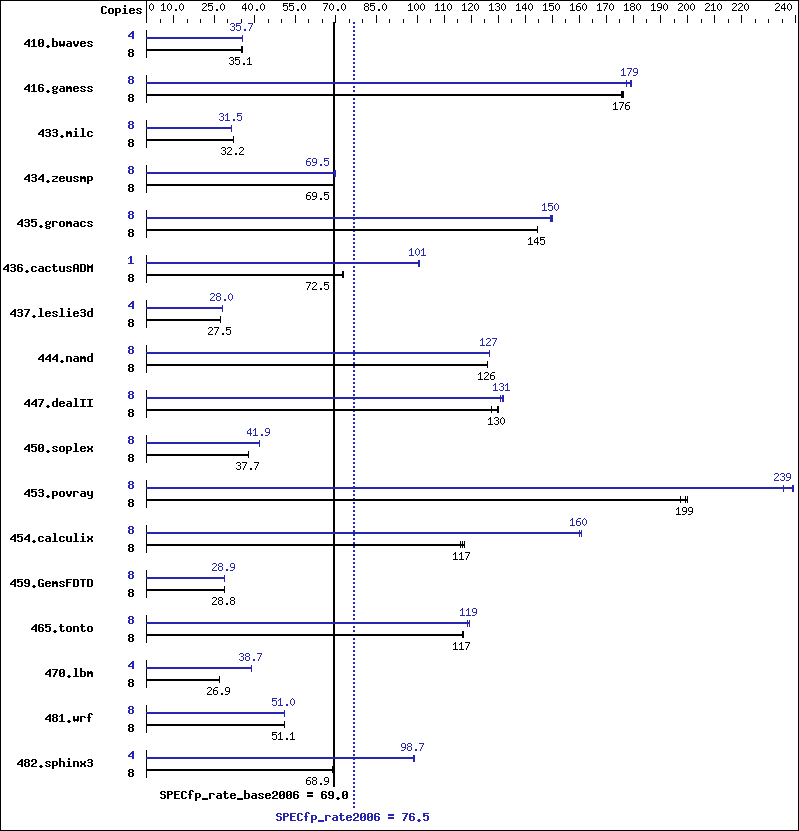

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5450
CPU Characteristics:
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 * 2 GB PC2-5300 FBDIMM, CL-5-5-5, ECC)
Disk Subsystem: 1 x SCSI, 73GB, 15000 RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: Intel C++ and Fortran Compiler for Linux version
10.1
Build 20080112 Package ID: l_cc_p_10.1.012,
l_fc_p_10.1.012
Auto Parallel: Yes
File System: ReiserFS
System State: Run Level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: Binutils 2.17.10.50

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 3071 35.4 3100 35.1 3105 35.0 4 1525 35.7 1525 35.6 1524 35.7
416.gamess 8 891 176   888 176   891 176   8 883 177   875 179   874 179
433.milc 8 2282 32.2 2283 32.2 2296 32.0 8 2332 31.5 2331 31.5 2330 31.5
434.zeusmp 8 1048 69.5 1048 69.4 1047 69.5 8 1048 69.5 1047 69.5 1044 69.8
435.gromacs 8 395 145   395 144   395 145   8 381 150   382 149   382 150
436.cactusADM 8 1320 72.4 1314 72.8 1320 72.5 1 119 100   119 101   118 101
437.leslie3d 8 2732 27.5 2739 27.5 2734 27.5 4 1343 28.0 1343 28.0 1334 28.2
444.namd 8 509 126   509 126   510 126   8 506 127   506 127   506 127
447.dealII 8 706 130   717 128   703 130   8 699 131   694 132   696 131
450.soplex 8 1767 37.8 1771 37.7 1769 37.7 8 1594 41.8 1592 41.9 1593 41.9
453.povray 8 213 199   213 200   216 197   8 178 239   178 239   181 235
454.calculix 8 561 118   568 116   565 117   8 412 160   411 161   412 160
459.GemsFDTD 8 2941 28.9 2943 28.8 2943 28.8 8 2951 28.8 2941 28.9 2939 28.9
465.tonto 8 672 117   675 117   674 117   8 659 119   660 119   663 119
470.lbm 8 4085 26.9 4082 26.9 4081 26.9 4 1419 38.7 1420 38.7 1420 38.7
481.wrf 8 1750 51.1 1751 51.0 1747 51.1 8 1748 51.1 1752 51.0 1756 50.9
482.sphinx3 8 2262 68.9 2267 68.8 2245 69.5 4 790 98.7 789 98.7 787 99.0

Compiler Invocation Notes

   OMP_NUM_THREADS set to number of cores
   KMP_STACK_SIZE set to 64M
   KMP_AFFINITY set to physical,0

Operating System Notes

  'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run.
  '/usr/bin/taskset' used to bind benchmark copies to processors, except for 436.cactuADM at peak.

Platform Notes

  BIOS configuration:
  Hardware Prefetch Disabled

General Notes

 This result was measured on the Servidor Itautec MX201.
 The Servidor Itautec MX201 and the Servidor Itautec MX221 are electronically equivalent.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks (except as noted below):

 /opt/intel/cc/10.1.012/bin/icc   -L/opt/intel/cc/10.1.012/lib   -I/opt/intel/cc/10.1.012/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/10.1.012/bin/icpc   -L/opt/intel/cc/10.1.012/lib   -I/opt/intel/cc/10.1.012/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /opt/intel/fc/10.1.012/bin/ifort   -L/opt/intel/fc/10.1.012/lib   -I/opt/intel/fc/10.1.012/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -scalar-rep-   -prefetch   -opt-malloc-options=3
482.sphinx3:  -fast   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -fast   -prefetch
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
437.leslie3d:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -opt-malloc-options=3
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -prefetch
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -prefetch   -parallel   -auto-ilp32
454.calculix:  -fast   -unroll-aggressive   -auto-ilp32
481.wrf:  -fast   -auto-ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Itautec-ic10.1-FP-intel64-linux-flags.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Itautec-ic10.1-FP-intel64-linux-flags.20090714.xml.
