SPEC® CINT2006 Result

NEC Corporation

Express5800/120Bb-m6
(Intel Xeon L5420)

Hardware
CPU Name:	Intel Xeon L5420
CPU Characteristics:	2.50 GHz, 2x6 MB L2 shared, 1333 MHz bus
CPU MHz:	2500
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	12 GB (12x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem:	1x73.2 GB SAS, 10000RPM
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp
Compiler:	Intel C++ Compiler for Linux32 and Linux64 version 10.1 Build 20070913 Package ID: l_cc_p_10.1.008
Auto Parallel:	Yes
File System:	ext2
System State:	Run level 3 (multi-user)
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	MicroQuill SmartHeap library 8.1 binutils-2.17.tar.gz, Version 2.17

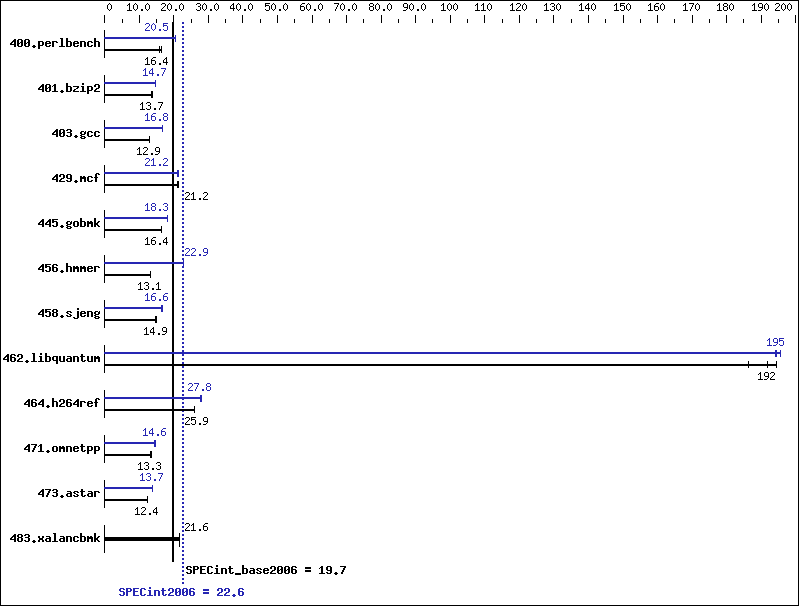

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	597	16.4	620	15.7	595	16.4	477	20.5	475	20.5	476	20.5
401.bzip2	705	13.7	704	13.7	709	13.6	655	14.7	655	14.7	656	14.7
403.gcc	625	12.9	624	12.9	624	12.9	480	16.8	479	16.8	479	16.8
429.mcf	431	21.2	429	21.3	429	21.2	431	21.1	430	21.2	431	21.2
445.gobmk	638	16.4	637	16.5	638	16.4	574	18.3	574	18.3	574	18.3
456.hmmer	709	13.2	711	13.1	710	13.1	408	22.9	408	22.9	408	22.9
458.sjeng	816	14.8	813	14.9	812	14.9	731	16.6	731	16.6	729	16.6
462.libquantum	111	186	107	195	108	192	107	195	107	194	106	196
464.h264ref	853	25.9	852	26.0	855	25.9	796	27.8	793	27.9	798	27.7
471.omnetpp	469	13.3	469	13.3	466	13.4	428	14.6	430	14.5	427	14.6
473.astar	562	12.5	567	12.4	565	12.4	513	13.7	513	13.7	513	13.7
483.xalancbmk	319	21.6	319	21.6	319	21.6	319	21.6	319	21.6	319	21.6

  OMP_NUM_THREADS set to number of cores

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer,
for peak, are compiled in 64-bit mode

icc

icpc

403.gcc:

	icc
401.bzip2:	/opt/intel/cce/10.1.008/bin/icc -L/opt/intel/cce/10.1.008/lib -I/opt/intel/cce/10.1.008/include
456.hmmer:	/opt/intel/cce/10.1.008/bin/icc -L/opt/intel/cce/10.1.008/lib -I/opt/intel/cce/10.1.008/include

icpc

400.perlbench:	-prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch
401.bzip2:	-prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32
403.gcc:	-fast -inline-calloc -opt-malloc-options=3
429.mcf:	-fast -prefetch
445.gobmk:	-prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias
456.hmmer:	-fast -unroll2 -ansi-alias -opt-multi-version-aggressive -auto-ilp32
458.sjeng:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4
462.libquantum:	-fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control
464.h264ref:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias

471.omnetpp:	-prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap
473.astar:	-prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap
483.xalancbmk:	basepeak = yes

403.gcc:
