SPEC® CINT2006 Result

NEC Corporation

Express5800/140Ba-10
(Intel Xeon E7340)

Hardware
CPU Name:	Intel Xeon E7340
CPU Characteristics:	2.40 GHz, 2x4 MB L2 shared, 1066 MHz bus
CPU MHz:	2400
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (16x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem:	1x73.2 GB SAS, 10000RPM
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp
Compiler:	Intel C++ Compiler for Linux32 and Linux64 version 10.1 Build 20070913 Package ID: l_cc_p_10.1.008
Auto Parallel:	Yes
File System:	ext2
System State:	Run level 3 (multi-user)
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	MicroQuill SmartHeap library 8.1 binutils-2.17.tar.gz, Version 2.17

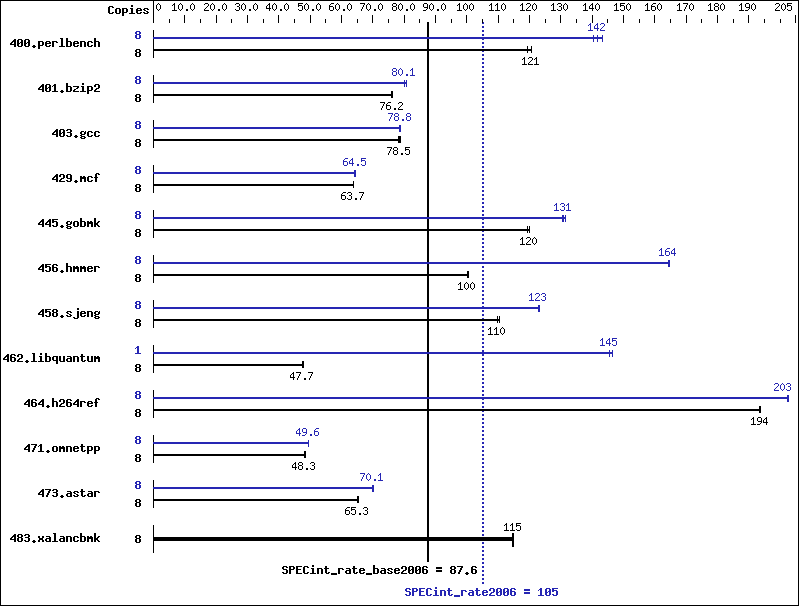

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	8	654	119	648	121	648	121	8	556	141	545	143	552	142
401.bzip2	8	1016	76.0	1010	76.4	1013	76.2	8	964	80.1	965	80.0	956	80.8
403.gcc	8	820	78.5	822	78.3	817	78.8	8	816	79.0	820	78.6	818	78.8
429.mcf	8	1143	63.8	1145	63.7	1145	63.7	8	1137	64.2	1132	64.5	1131	64.5
445.gobmk	8	699	120	703	119	699	120	8	641	131	643	130	638	132
456.hmmer	8	744	100	743	100	744	100	8	454	164	454	164	453	165
458.sjeng	8	880	110	881	110	875	111	8	787	123	786	123	788	123
462.libquantum	8	3485	47.6	3476	47.7	3459	47.9	1	142	145	141	147	142	145
464.h264ref	8	915	194	914	194	913	194	8	873	203	873	203	875	202
471.omnetpp	8	1033	48.4	1034	48.3	1040	48.1	8	1012	49.4	1008	49.6	1008	49.6
473.astar	8	858	65.4	860	65.3	861	65.2	8	803	70.0	800	70.2	802	70.1
483.xalancbmk	8	482	115	481	115	480	115	8	482	115	481	115	480	115

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
  OMP_NUM_THREADS set to number of cores

All benchmarks compiled in 32-bit mode except 401.bzip2,
456.hmmer, for peak, are compiled in 64-bit mode

icc

icpc

403.gcc:

	icc
401.bzip2:	/opt/intel/cce/10.1.008/bin/icc -L/opt/intel/cce/10.1.008/lib -I/opt/intel/cce/10.1.008/include
456.hmmer:	/opt/intel/cce/10.1.008/bin/icc -L/opt/intel/cce/10.1.008/lib -I/opt/intel/cce/10.1.008/include

icpc

400.perlbench:	-prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch
401.bzip2:	-prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch
403.gcc:	-fast -inline-calloc -opt-malloc-options=3
429.mcf:	-fast -prefetch
445.gobmk:	-prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias
456.hmmer:	-fast -unroll2 -ansi-alias -opt-multi-version-aggressive
458.sjeng:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4
462.libquantum:	-fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control
464.h264ref:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias

471.omnetpp:	-prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap
473.astar:	-prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap
483.xalancbmk:	basepeak = yes

403.gcc:
