| CPU2006 license: | 9006 | Test date: | Apr-2008 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | Apr-2008 |
| Tested by: | NEC Corporation | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5205 |
| CPU Characteristics: | 1.86 GHz, 6 MB L2, 1066 MHz bus |
| CPU MHz: | 1867 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1x250 GB SATAII, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 version 10.1 Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap library 8.1 binutils-2.17.tar.gz, Version 2.17 |

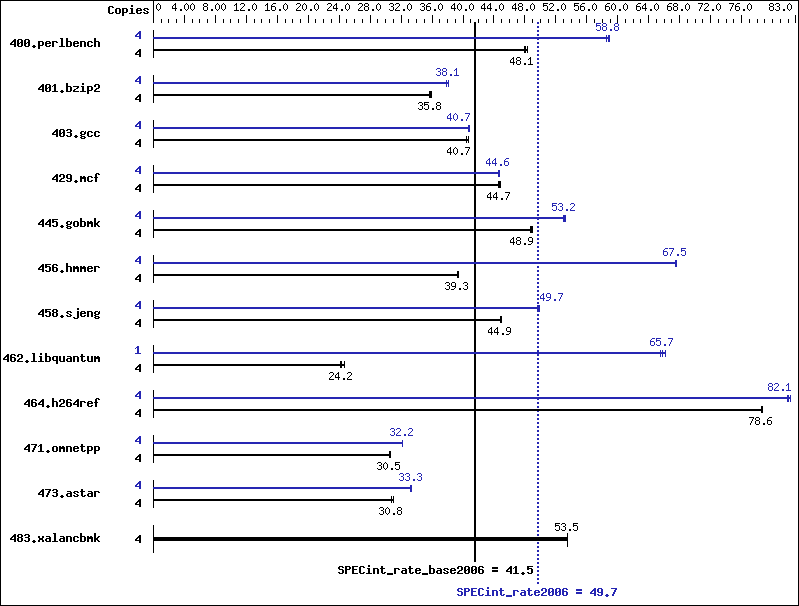

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 814 | 48.0 | 813 | 48.1 | 808 | 48.4 | 4 | 667 | 58.6 | 664 | 58.9 | 665 | 58.8 |
| 401.bzip2 | 4 | 1084 | 35.6 | 1079 | 35.8 | 1076 | 35.9 | 4 | 1018 | 37.9 | 1012 | 38.1 | 1012 | 38.1 |
| 403.gcc | 4 | 790 | 40.8 | 796 | 40.5 | 792 | 40.7 | 4 | 791 | 40.7 | 792 | 40.7 | 789 | 40.8 |
| 429.mcf | 4 | 813 | 44.9 | 817 | 44.7 | 818 | 44.6 | 4 | 818 | 44.6 | 817 | 44.6 | 815 | 44.8 |
| 445.gobmk | 4 | 857 | 49.0 | 858 | 48.9 | 862 | 48.7 | 4 | 789 | 53.2 | 789 | 53.2 | 791 | 53.0 |
| 456.hmmer | 4 | 949 | 39.3 | 949 | 39.3 | 948 | 39.4 | 4 | 552 | 67.6 | 553 | 67.5 | 553 | 67.5 |
| 458.sjeng | 4 | 1078 | 44.9 | 1078 | 44.9 | 1080 | 44.8 | 4 | 971 | 49.8 | 973 | 49.7 | 974 | 49.7 |
| 462.libquantum | 4 | 3354 | 24.7 | 3420 | 24.2 | 3426 | 24.2 | 1 | 316 | 65.5 | 315 | 65.7 | 313 | 66.2 |
| 464.h264ref | 4 | 1127 | 78.5 | 1126 | 78.6 | 1125 | 78.7 | 4 | 1080 | 82.0 | 1079 | 82.1 | 1075 | 82.3 |
| 471.omnetpp | 4 | 815 | 30.7 | 820 | 30.5 | 820 | 30.5 | 4 | 776 | 32.2 | 776 | 32.2 | 776 | 32.2 |
| 473.astar | 4 | 907 | 31.0 | 913 | 30.8 | 913 | 30.7 | 4 | 841 | 33.4 | 844 | 33.3 | 842 | 33.3 |
| 483.xalancbmk | 4 | 516 | 53.5 | 516 | 53.5 | 516 | 53.4 | 4 | 516 | 53.5 | 516 | 53.5 | 516 | 53.4 |
Compiler Invocation Notes
OMP_NUM_THREADS set to number of cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
Bios settings: Hardware Prefetcher: Enabled Adjacent Cache Line Prefetch: Enabled Intel SpeedStep Technology: Disabled
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2, 456.hmmer, for peak, are compiled in 64-bit mode
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
