SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Blade 6000

CPU2006 license: 6 Test date: Mar-2008
Test sponsor: Sun Microsystems Hardware Availability: Feb-2008
Tested by: Sun Microsystems Software Availability: Feb-2008

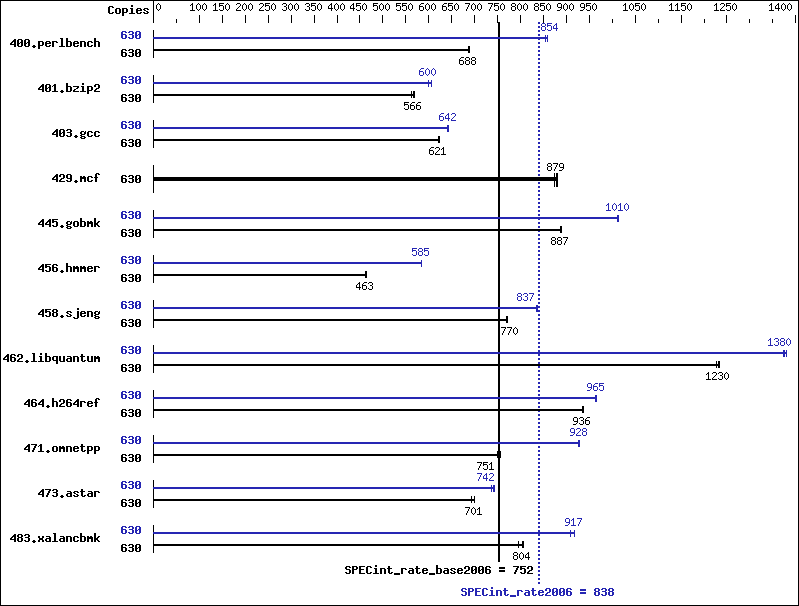

Benchmark results graph
Hardware
CPU Name: UltraSPARC T2
CPU Characteristics:
CPU MHz: 1417
FPU: Integrated
CPU(s) enabled: 80 cores, 10 chips, 8 cores/chip, 8 threads/core
CPU(s) orderable: 1 to 10 Sun Blade T6320 Modules
Primary Cache: 16 KB I + 8 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 640 GB (10 x 16 x 4 GB)
Disk Subsystem: 975 GB RAID 5 via NFS
Other Hardware: 1 GbE network adapter on each blade.
Software
Operating System: Solaris 10 8/07 + patches (see notes)
Compiler: Sun Studio 12 (see patch information below)
gccfss V4.2.0 (see additional detail below)
Auto Parallel: No
File System: NFSv3
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 630 8950 688 8934 689 8953 688 630 7211 854 7175 858 7207 854
401.bzip2 630 10734 566 10800 563 10684 569 630 10133 600 10039 606 10124 600
403.gcc 630 8138 623 8168 621 8177 620 630 7897 642 7905 642 7873 644
429.mcf 630 6534 879 6527 880 6565 875 630 6534 879 6527 880 6565 875
445.gobmk 630 7458 886 7439 888 7449 887 630 6538 1010 6526 1010 6526 1010
456.hmmer 630 12697 463 12687 463 12713 462 630 10044 585 10056 585 10050 585
458.sjeng 630 9889 771 9897 770 9919 769 630 9125 835 9103 837 9106 837
462.libquantum 630 10637 1230 10579 1230 10599 1230 630 9483 1380 9467 1380 9498 1370
464.h264ref 630 14888 936 14894 936 14897 936 630 14444 965 14450 965 14465 964
471.omnetpp 630 5247 750 5211 756 5244 751 630 4245 928 4245 928 4252 926
473.astar 630 6382 693 6312 701 6312 701 630 5960 742 6007 736 5954 743
483.xalancbmk 630 5384 807 5410 804 5458 796 630 4740 917 4779 910 4740 917

Compiler Invocation Notes


 Sun Studio compiler patches are available at
 http://developers.sun.com/sunstudio/downloads/patches/ss12_patches.jsp
 The tested configuration included patch 124867-02, 124861-04, 124863-01

 Peak also uses "GCC for SPARC Systems", which combines gcc
 with the Sun Code Generator for SPARC systems.  It is invoked
 as "gcc", and accepts source code compatible with GCC 4.2.
 For more information, including support, see
      http://cooltools.sunsource.net/gcc/

Operating System Notes


 The Sun Blade 6000 was tested with 10x T6320 Modules,
 each containing 1x UltraSPARC T2 chip.

 The Sun Blade T6320 is supported by Solaris 10 8/07
 plus a factory-installed set of patches.  As tested, the
 system used a 15 January 2008 pre-release build of the
 patch set.

 OS and test harness settings include:

 - On each T6320 Module:
     - The "webconsole" service was turned off using
          svcadm disable webconsole
     - /etc/system settings:
          autoup = 600
          set bufhwm_pct=1
          set segmap_percent=2
          set tsb_rss_factor=128
          tune_t_fsflushr = 10
     - Process settings:
          ulimit -s 131072

 - The "submit" feature was used with a perl procedure, which did
   arithmetic to derive processor numbers from the SPEC copy number

 Additional details about the above points be found in the "Platform
 Settings" section of the associated flags file.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -g   -fast   -xipo=2   -xpagesize=4M   -xprefetch=no%auto   -xalias_level=std   -M /usr/lib/ld/map.bssalign

C++ benchmarks:

 -g0   -library=stlport4   -fast   -xipo=2   -xpagesize=4M   -xprefetch=no%auto   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign

Base Other Flags

C benchmarks:

 -xjobs=63   -V   -#

C++ benchmarks:

 -xjobs=63   -verbose=diags,version

Peak Compiler Invocation

C benchmarks (except as noted below):

 cc
403.gcc:  gcc
456.hmmer:  gcc
462.libquantum:  gcc

C++ benchmarks (except as noted below):

 CC
471.omnetpp:  g++

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
462.libquantum:  -DSPEC_CPU_SOLARIS   -DSPEC_CPU_NEED_COMPLEX_I
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xprefetch=no%auto   -xalias_level=std   -xipo=2   -Xc   -xrestrict   -lfast
401.bzip2:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=strong
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xprefetch=no%auto   -xipo=2   -xalias_level=std
429.mcf:  basepeak = yes
445.gobmk:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xprefetch=no%auto   -xalias_level=std   -xrestrict
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2   -xalias_level=std
458.sjeng:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xprefetch=no%auto   -xipo=2
462.libquantum:  -fast   -xipo=2
464.h264ref:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xprefetch=no%auto   -xipo=2   -xalias_level=std

C++ benchmarks:

471.omnetpp:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2   -xalias_level=std
473.astar:  -g0   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize_heap=4M   -xpagesize_stack=64K   -xprefetch=no%auto   -xdepend   -xalias_level=compatible   -xipo=2   -xarch=v8plusb   -lfast   -lbsdmalloc
483.xalancbmk:  -g0   -library=stlport4   -fast   -xpagesize=4M   -xprefetch=no%auto   -xdepend   -xalias_level=compatible   -xipo=2   -lfast

Peak Other Flags

C benchmarks (except as noted below):

 -xjobs=63   -V   -#
403.gcc:  -v
456.hmmer:  -v
462.libquantum:  -v

C++ benchmarks (except as noted below):

 -xjobs=63   -verbose=diags,version
471.omnetpp:  -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss4.2-multinode.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss4.2-multinode.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.1.
Report generated on Tue Jul 22 16:54:17 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 29 April 2008.
