SPEC® CFP2006 Result

Fujitsu Limited

PRIMEQUEST 540A

SPECfp®_rate2006 = 406

SPECfp_rate_base2006 = 386

CPU2006 license:	19	Test date:	Mar-2008
Test sponsor:	Fujitsu Limited	Hardware Availability:	May-2008
Tested by:	Fujitsu Limited	Software Availability:	Feb-2008

Hardware
CPU Name:	Dual-Core Intel Itanium 9150M
CPU Characteristics:	1.66GHz/24MB, 667MHz FSB
CPU MHz:	1667
FPU:	Integrated
CPU(s) enabled:	32 cores, 16 chips, 2 cores/chip
CPU(s) orderable:	2-16 chips
Primary Cache:	16 KB I + 16 KB D on chip per core
Secondary Cache:	1 MB I + 256 KB D on chip per core
L3 Cache:	12 MB I+D on chip per core
Other Cache:	None
Memory:	256 GB (128 x 2GB DDR2-667 DIMMs)
Disk Subsystem:	2 x 147GB (SCSI Ultra 320, 10000rpm) No RAID configuration
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux 5.1, Kernel 2.6.18-53.el5 on an ia64
Compiler:	Intel C++ Compiler for Linux 10.1 (Build 20080112) Intel Fortran Compiler for Linux 10.1 (Build 20080112)
Auto Parallel:	No
File System:	ext2
System State:	Runlevel 1 (single user mode)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

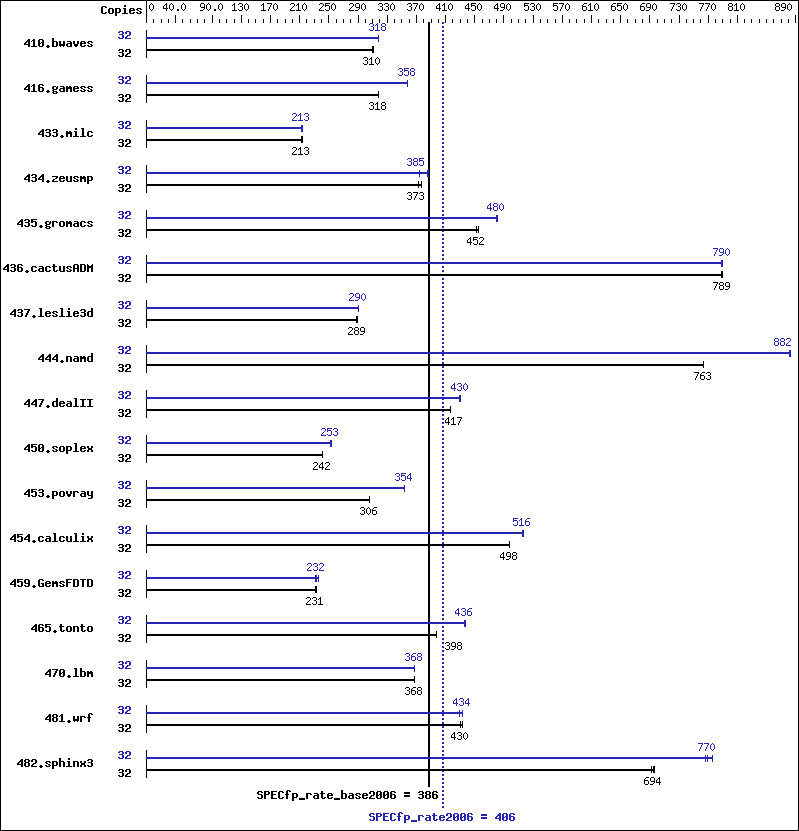

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	32	1404	310	1404	310	1396	312	32	1366	318	1366	318	1366	318
416.gamess	32	1968	318	1968	318	1968	318	32	1749	358	1748	358	1749	358
433.milc	32	1378	213	1378	213	1381	213	32	1379	213	1375	214	1378	213
434.zeusmp	32	774	376	782	372	782	373	32	753	387	757	385	778	374
435.gromacs	32	502	455	505	452	506	452	32	477	479	476	480	474	482
436.cactusADM	32	484	789	485	788	485	789	32	486	788	484	790	484	790
437.leslie3d	32	1043	288	1040	289	1041	289	32	1037	290	1037	290	1037	290
444.namd	32	336	763	336	763	336	763	32	291	883	291	882	291	882
447.dealII	32	877	417	877	417	878	417	32	852	430	851	430	852	430
450.soplex	32	1106	241	1104	242	1105	242	32	1057	253	1055	253	1058	252
453.povray	32	557	306	557	306	557	306	32	481	354	480	354	481	354
454.calculix	32	530	498	530	498	530	498	32	512	515	511	516	512	516
459.GemsFDTD	32	1469	231	1459	233	1469	231	32	1461	232	1463	232	1438	236
465.tonto	32	792	398	791	398	792	398	32	721	437	723	436	722	436
470.lbm	32	1195	368	1195	368	1197	367	32	1195	368	1195	368	1197	367
481.wrf	32	831	430	826	433	830	430	32	824	434	824	434	833	429
482.sphinx3	32	896	696	901	692	898	694	32	804	776	814	766	810	770

General Notes


 Processes are bound to CPUs using taskset.

 limit stacksize unlimited

 Memory system is in "Non Mirror Mode".

 The following 2 environment variables were set
     MALLOC_MMAP_MAX_=0
     MALLOC_TRIM_THRESHOLD_=-1
 This will cause use of sbrk() calls instead of
 mmap() calls to get memory from the system.

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:	-fast -IPF-fp-relaxed -opt-prefetch-next-iteration -fno-alias -ansi-alias
470.lbm:	-fast -IPF-fp-relaxed -opt-prefetch-next-iteration -ansi-alias
482.sphinx3:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF-fp-relaxed -opt-prefetch-next-iteration -fno-alias -no-opt-prefetch-initial-values -ansi-alias

C++ benchmarks:

444.namd:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF-fp-relaxed -opt-prefetch-next-iteration -no-prefetch -auto-ilp32 -fno-alias -ansi-alias
447.dealII:	-fast -IPF-fp-relaxed -opt-prefetch-next-iteration -inline-factor=150 -no-alias-args -no-opt-loadpair -ansi-alias
450.soplex:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF-fp-relaxed -opt-prefetch-next-iteration -auto-ilp32 -no-alias-args -ansi-alias
453.povray:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF-fp-relaxed -opt-prefetch-next-iteration -inline-factor=150 -ansi-alias

Fortran benchmarks:

410.bwaves:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF-fp-relaxed -opt-prefetch-next-iteration
416.gamess:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF-fp-relaxed -opt-prefetch-next-iteration -no-prefetch
434.zeusmp:	Same as 410.bwaves
437.leslie3d:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF-fp-relaxed -opt-prefetch-next-iteration -no-opt-loadpair
459.GemsFDTD:	-fast -IPF-fp-relaxed -opt-prefetch-next-iteration
465.tonto:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF-fp-relaxed -opt-prefetch-next-iteration -inline-factor=150 -no-prefetch

Benchmarks using both Fortran and C:

435.gromacs:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF-fp-relaxed -opt-prefetch-next-iteration -no-prefetch -fno-alias -ansi-alias
436.cactusADM:	-fast -IPF-fp-relaxed -opt-prefetch-next-iteration -ansi-alias
454.calculix:	-fast -IPF-fp-relaxed -opt-prefetch-next-iteration -inline-factor=150 -no-opt-prefetch-initial-values -ansi-alias
481.wrf:	-fast -IPF-fp-relaxed -opt-prefetch-next-iteration -no-opt-loadpair -ansi-alias

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Fujitsu.PQ580A.ipf.linux.flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Fujitsu.PQ580A.ipf.linux.flags.xml.
