SPEC® CINT2006 Result

Dell Inc.

PowerEdge M600 (Intel Xeon E5420, 2.50 GHz)

Hardware
CPU Name:	Intel Xeon E5420
CPU Characteristics:	1333 MHz system bus
CPU MHz:	2500
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (4 x 4 GB 667 MHz ECC CL5 FB-DIMM)
Disk Subsystem:	1 x 80 GB 7200 RPM SATA
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp
Compiler:	Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008
Auto Parallel:	Yes
File System:	ReiserFS
System State:	Run level 3 (multi-user)
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	Microquill SmartHeap library V8.1

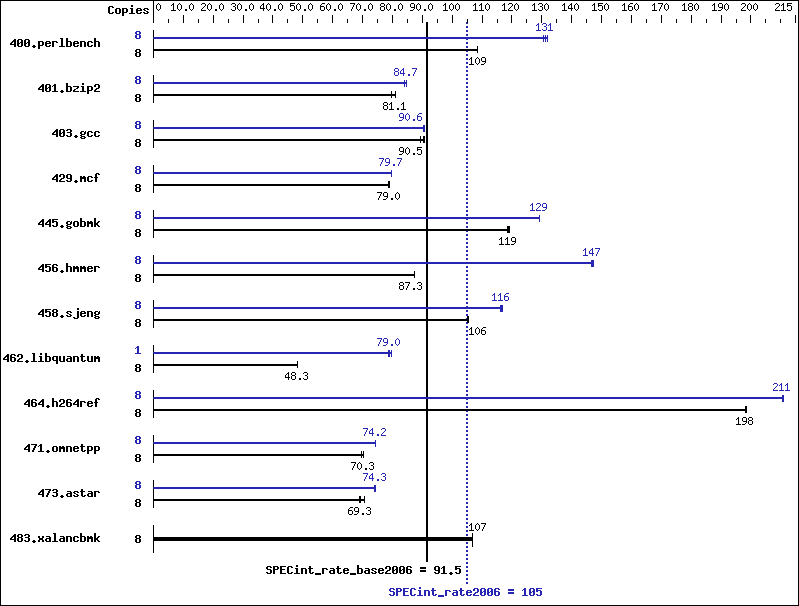

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	8	720	108	720	109	720	109	8	592	132	595	131	599	130
401.bzip2	8	971	79.5	952	81.1	951	81.2	8	917	84.2	911	84.7	911	84.8
403.gcc	8	720	89.4	712	90.5	711	90.6	8	711	90.6	713	90.3	711	90.6
429.mcf	8	928	78.6	923	79.0	922	79.1	8	917	79.5	916	79.7	914	79.8
445.gobmk	8	704	119	707	119	709	118	8	650	129	649	129	649	129
456.hmmer	8	854	87.4	855	87.3	855	87.3	8	509	147	507	147	508	147
458.sjeng	8	917	106	921	105	917	106	8	834	116	832	116	830	117
462.libquantum	8	3430	48.3	3429	48.3	3430	48.3	1	262	79.0	260	79.5	263	78.8
464.h264ref	8	892	198	893	198	894	198	8	841	211	839	211	841	211
471.omnetpp	8	711	70.3	710	70.4	718	69.6	8	674	74.2	674	74.2	673	74.3
473.astar	8	795	70.7	811	69.3	813	69.1	8	759	74.0	756	74.3	756	74.3
483.xalancbmk	8	516	107	516	107	517	107	8	516	107	516	107	517	107

OMP_NUM_THREADS set to number of cores
KMP_STACK_SIZE set to 64M
KMP_AFFINITY set to physical,0

'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
'/usr/bin/taskset' used to bind processes to CPUs

BIOS Settings:
Adjacent Cache Line Prefetch = Disabled (default Enabled)
Hardware Prefetcher = Disabled (default Enabled)

icc

icpc

403.gcc:

	icc
401.bzip2:	/opt/intel/cce/10.1.008/bin/icc -L/opt/intel/cce/10.1.008/lib -I/opt/intel/cce/10.1.008/include
456.hmmer:	/opt/intel/cce/10.1.008/bin/icc -L/opt/intel/cce/10.1.008/lib -I/opt/intel/cce/10.1.008/include

icpc

400.perlbench:	-prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch
401.bzip2:	-prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch
403.gcc:	-fast -inline-calloc -opt-malloc-options=3
429.mcf:	-fast -prefetch
445.gobmk:	-prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias
456.hmmer:	-fast -unroll2 -ansi-alias -opt-multi-version-aggressive
458.sjeng:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4
462.libquantum:	-fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control
464.h264ref:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias

471.omnetpp:	-prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap
473.astar:	-prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap
483.xalancbmk:	basepeak = yes

403.gcc:
