SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM System x3400 (Intel Xeon E5405)

SPECfp®_rate2006 = Not Run

CPU2006 license: 11 Test date: Mar-2008
Test sponsor: IBM Corporation Hardware Availability: Jan-2008
Tested by: IBM Corporation Software Availability: Nov-2007

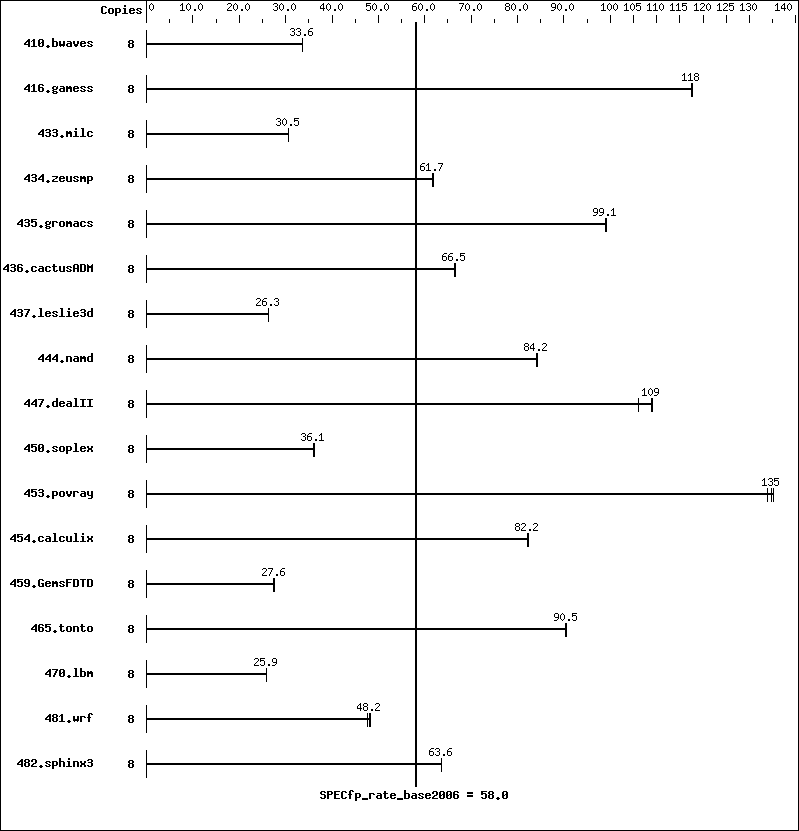

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5405
CPU Characteristics: 1333MHz system bus
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2 GB DDR2-5300F ECC)
Disk Subsystem: 1 x 80 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64), Kernel
2.6.16.21-0.8-smp
Compiler: Intel C++ and Fortran Compiler 10.1 for Linux
Build 20070913 Package ID: l_cc_p_10.1.008,
l_fc_p_10.1.008
Auto Parallel: No
File System: ReiserFS
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: Binutils 2.17.50.0.15

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 3230 33.7 3232 33.6 3232 33.6
416.gamess 8 1334 117   1331 118   1333 118
433.milc 8 2406 30.5 2403 30.6 2404 30.5
434.zeusmp 8 1179 61.7 1180 61.7 1176 61.9
435.gromacs 8 577 99.1 577 98.9 576 99.2
436.cactusADM 8 1435 66.6 1438 66.5 1442 66.3
437.leslie3d 8 2862 26.3 2869 26.2 2857 26.3
444.namd 8 762 84.2 762 84.2 762 84.2
447.dealII 8 840 109   862 106   839 109
450.soplex 8 1843 36.2 1852 36.0 1847 36.1
453.povray 8 316 135   318 134   315 135
454.calculix 8 801 82.4 803 82.2 803 82.2
459.GemsFDTD 8 3102 27.4 3076 27.6 3076 27.6
465.tonto 8 870 90.5 872 90.3 870 90.5
470.lbm 8 4241 25.9 4239 25.9 4239 25.9
481.wrf 8 1854 48.2 1855 48.2 1873 47.7
482.sphinx3 8 2447 63.7 2455 63.5 2450 63.6

General Notes

 All benchmarks compiled in 64-bit mode
 Hardware Sector Prefetch Disabled and Adjacent Sector Prefetch Disabled
 taskset utility used to bind CPU(s) to processes
 This result is measured on an IBM System x 3500 Server. Note
 that the IBM Systen x 3500 and IBM System x 3400 are electrically
 equivalent.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10.1-FP-intel64-linux-flags.20090713.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10.1-FP-intel64-linux-flags.20090713.xml.
