SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

CELSIUS M460, Intel Core 2 Duo E8400

SPECfp®2006 = 21.4

CPU2006 license: 22 Test date: Mar-2008
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Mar-2008
Tested by: Fujitsu Siemens Computers Software Availability: Nov-2007

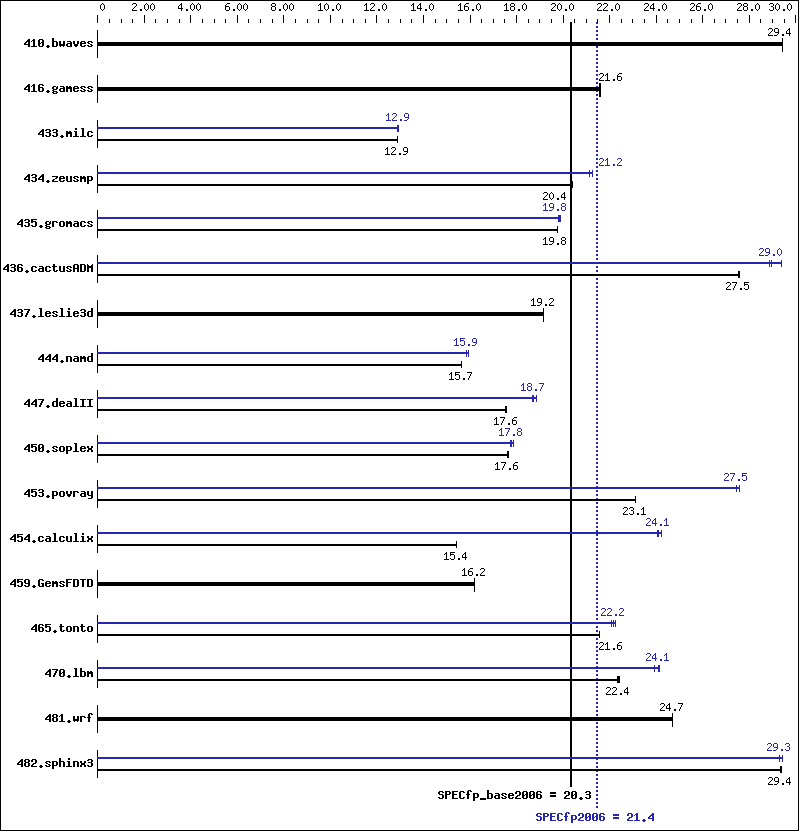

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Duo E8400
CPU Characteristics:
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 4 GB (4x1 GB PC2-6400 CL6 SDRAM)
Disk Subsystem: 1 x 400 GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate, 64 bit Version
Compiler: Intel C++ Compiler
for applications running on Intel 64,
Version 10.1, Build 20070913
Intel Visual Fortran Compiler
for applications running on Intel 64,
Version 10.1, Build 20070913
Microsoft Visual Studio 2005 with SP1
(for libraries)
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: MicroQuill SmartHeap Library 8.0 (64 bit)

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 462 29.4 462 29.4 462 29.4 462 29.4 462 29.4 462 29.4
416.gamess 907 21.6 907 21.6 907 21.6 907 21.6 907 21.6 907 21.6
433.milc 713 12.9 713 12.9 713 12.9 709 12.9 711 12.9 713 12.9
434.zeusmp 446 20.4 446 20.4 446 20.4 428 21.3 430 21.2 431 21.1
435.gromacs 361 19.8 361 19.8 361 19.8 359 19.9 360 19.8 360 19.8
436.cactusADM 434 27.6 434 27.5 434 27.5 406 29.4 413 29.0 414 28.9
437.leslie3d 491 19.2 491 19.1 491 19.2 491 19.2 491 19.1 491 19.2
444.namd 512 15.7 512 15.7 512 15.7 503 15.9 506 15.8 506 15.9
447.dealII 653 17.5 652 17.6 652 17.6 607 18.9 612 18.7 611 18.7
450.soplex 474 17.6 473 17.6 473 17.6 467 17.9 470 17.7 469 17.8
453.povray 230 23.1 230 23.1 230 23.1 193 27.6 194 27.5 194 27.5
454.calculix 535 15.4 536 15.4 536 15.4 341 24.2 343 24.1 342 24.1
459.GemsFDTD 655 16.2 655 16.2 655 16.2 655 16.2 655 16.2 655 16.2
465.tonto 456 21.6 456 21.6 456 21.6 442 22.3 445 22.1 444 22.2
470.lbm 614 22.4 615 22.4 613 22.4 569 24.1 574 23.9 570 24.1
481.wrf 452 24.7 452 24.7 452 24.7 452 24.7 452 24.7 452 24.7
482.sphinx3 663 29.4 664 29.4 663 29.4 662 29.4 665 29.3 666 29.3

Platform Notes

BIOS default settings have been used.

General Notes


For information about Fujitsu Siemens Computers please see:
http://www.fujitsu-siemens.com/

Base Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc8   -Qc99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -Qparallel   -F1000000000   libguide40.lib

C++ benchmarks:

 -fast   -Qparallel   -Qcxx-features   -F1000000000   libguide40.lib   shlW64M.lib   -link -FORCE:MULTIPLE

Fortran benchmarks:

 -fast   -Qparallel   -F1000000000   libguide40.lib

Benchmarks using both Fortran and C:

 -fast   -Qparallel   -F1000000000   libguide40.lib

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc8   -Qc99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F1000000000   libguide40.lib
470.lbm:  -fast   -Qunroll2   -Qscalar-rep-   -Qprefetch   -F1000000000   libguide40.lib
482.sphinx3:  -fast   -Qunroll2   -F1000000000   libguide40.lib

C++ benchmarks:

444.namd:  -fast   -Qcxx-features   -Oa   -F1000000000   libguide40.lib   shlW64M.lib   -link -FORCE:MULTIPLE
447.dealII:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx-features   -F1000000000   libguide40.lib   shlW64M.lib   -link -FORCE:MULTIPLE
450.soplex:  Same as 447.dealII
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  basepeak = yes
434.zeusmp:  -O2   -Qunroll0   -QxT   -Qscalar-rep-   -Qprec-div-   -F1000000000   libguide40.lib
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -fast   -Qunroll4   -Qauto   -F1000000000   libguide40.lib

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F1000000000   libguide40.lib
436.cactusADM:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qparallel   -Qprefetch   -Qunroll2   -F1000000000   libguide40.lib
454.calculix:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll-aggressive   -F1000000000   libguide40.lib
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090713.03.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090713.03.xml.
