SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

CELSIUS M460, Intel Core 2 Extreme QX9650

SPECint®2006 = 24.1

CPU2006 license: 22 Test date: Feb-2008
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Mar-2008
Tested by: Fujitsu Siemens Computers Software Availability: Nov-2007

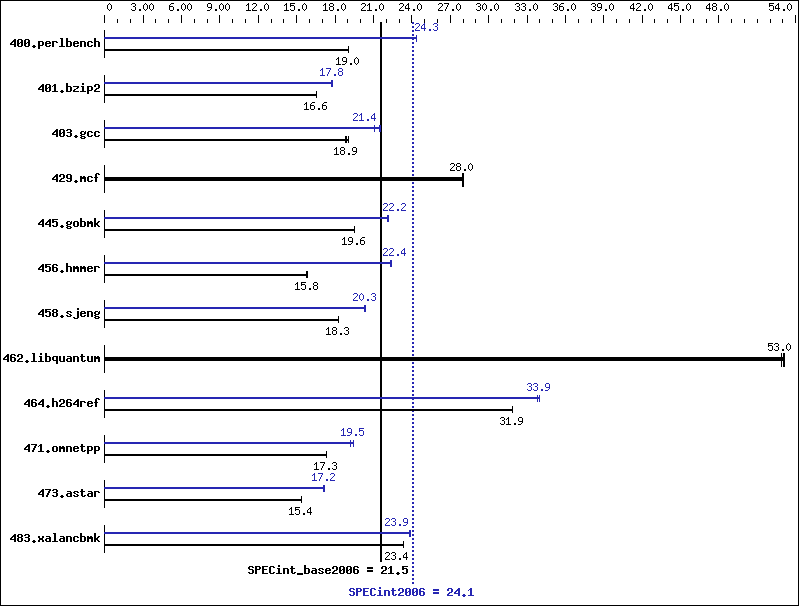

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Extreme QX9650
CPU Characteristics:
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 4 GB (4x1 GB PC2-6400 CL6 SDRAM)
Disk Subsystem: 1 x 400 GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate, 64 bit Version
Compiler: Intel C++ Compiler
for applications running on IA-32,
Version 10.1, Build 20070913
Intel C++ Compiler
for applications running on Intel 64,
Version 10.1, Build 20070913
Microsoft Visual Studio 2005 with SP1
(for libraries)
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 513 19.0 513 19.0 513 19.1 402 24.3 401 24.3 401 24.4
401.bzip2 584 16.5 583 16.6 582 16.6 543 17.8 543 17.8 545 17.7
403.gcc 423 19.0 428 18.8 426 18.9 374 21.5 376 21.4 382 21.1
429.mcf 326 28.0 326 28.0 326 28.0 326 28.0 326 28.0 326 28.0
445.gobmk 536 19.6 536 19.6 537 19.5 473 22.2 473 22.2 476 22.1
456.hmmer 590 15.8 590 15.8 590 15.8 416 22.4 416 22.4 419 22.3
458.sjeng 661 18.3 661 18.3 661 18.3 594 20.4 595 20.3 597 20.3
462.libquantum 391 53.0 392 52.9 390 53.2 391 53.0 392 52.9 390 53.2
464.h264ref 695 31.8 694 31.9 694 31.9 652 33.9 652 33.9 654 33.8
471.omnetpp 360 17.3 361 17.3 360 17.4 321 19.5 321 19.5 326 19.2
473.astar 457 15.4 457 15.4 457 15.4 409 17.2 409 17.2 411 17.1
483.xalancbmk 295 23.4 295 23.4 296 23.3 288 23.9 288 23.9 290 23.8

Platform Notes

BIOS default settings have been used.

General Notes


 All binaries were built with 32-bit Intel compiler except:
 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel
 compiler by changing the path for include and library files.

For information about Fujitsu Siemens Computers please see:
http://www.fujitsu-siemens.com/

Base Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 -fast   -Qparallel   -Qvec-guard-write   -Qpar-runtime-control   -F512000000   libguide40.lib

C++ benchmarks:

 -fast   -Qcxx-features   -F512000000   libguide40.lib   shlW32M.lib   -link -FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icl   -Qvc8   -Qc99
401.bzip2:  C:\\DevelTools\\Intel\\Compiler\\C++\\10.1.011\\EM64T\\Bin\\icl.exe   -IC:\\DevelTools\\Intel\\Compiler\\C++\\10.1.011\\EM64T\\Include   -link -LIBPATH:C:\\DevelTools\\Intel\\Compiler\\C++\\10.1.011\\EM64T\\Lib   -link -LIBPATH:"C:\\Program Files\\Microsoft Visual Studio 8\\vc\\lib"   -link -LIBPATH:"C:\\Program Files\\Microsoft Visual Studio 8\\vc\\lib\\amd64"
456.hmmer:  C:\\DevelTools\\Intel\\Compiler\\C++\\10.1.011\\EM64T\\Bin\\icl.exe   -IC:\\DevelTools\\Intel\\Compiler\\C++\\10.1.011\\EM64T\\Include   -link -LIBPATH:C:\\DevelTools\\Intel\\Compiler\\C++\\10.1.011\\EM64T\\Lib   -link -LIBPATH:"C:\\Program Files\\Microsoft Visual Studio 8\\vc\\lib"   -link -LIBPATH:"C:\\Program Files\\Microsoft Visual Studio 8\\vc\\lib\\amd64"

C++ benchmarks:

 icl   -Qvc8

Peak Portability Flags

401.bzip2:  -DSPEC_CPU_P64
403.gcc:  -DSPEC_CPU_WIN32
456.hmmer:  -DSPEC_CPU_P64
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Peak Optimization Flags

C benchmarks:

400.perlbench:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qparallel   -Qpar-runtime-control   -Qansi-alias   -Qprefetch   -F512000000   libguide40.lib   shlW32M.lib   -link -FORCE:MULTIPLE
401.bzip2:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qprefetch   -F512000000   libguide40.lib
403.gcc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F512000000   libguide40.lib
429.mcf:  basepeak = yes
445.gobmk:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -O2   -Qipo   -QxT   -Qprec-div-   -Qansi-alias   -F512000000
456.hmmer:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qansi-alias   -Qopt-multi-version-aggressive   -F512000000   libguide40.lib
458.sjeng:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll4   -F512000000   libguide40.lib
462.libquantum:  basepeak = yes
464.h264ref:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qansi-alias   -F512000000   libguide40.lib

C++ benchmarks:

471.omnetpp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx-features   -Qansi-alias   -Qopt-ra-region-strategy=block   -F512000000   libguide40.lib   shlW32M.lib   -link -FORCE:MULTIPLE
473.astar:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx-features   -Qansi-alias   -Qopt-ra-region-strategy=routine   -F512000000   libguide40.lib   shlW32M.lib   -link -FORCE:MULTIPLE
483.xalancbmk:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx-features   -Qansi-alias   -F512000000   libguide40.lib   shlW32M.lib   -link -FORCE:MULTIPLE

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090713.02.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090713.02.xml.
