| CPU2006 license: | 97 | Test date: | Mar-2008 |
|---|---|---|---|
| Test sponsor: | Acer Incorporated | Hardware Availability: | Nov-2007 |
| Tested by: | Acer Incorporated | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5205 |
| CPU Characteristics: | 1066MHz system bus |
| CPU MHz: | 1860 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2048MB ECC FB-DIMM DDR2-667 CL5-5-5) |
| Disk Subsystem: | 1 x 73GB 10000PRM SAS HDD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 SP1 (x86_64) Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Multi-user, level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.17.50.0.15 |

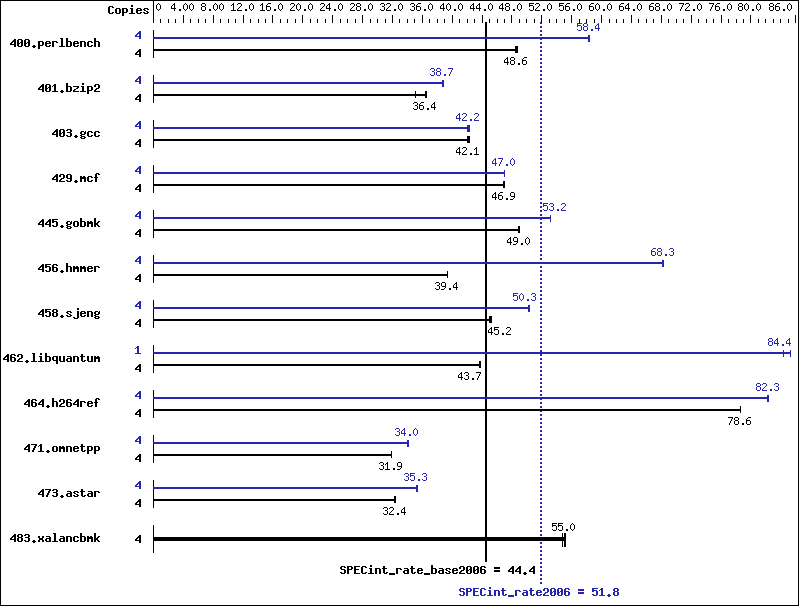

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 806 | 48.5 | 804 | 48.6 | 801 | 48.8 | 4 | 670 | 58.4 | 671 | 58.2 | 669 | 58.4 |
| 401.bzip2 | 4 | 1061 | 36.4 | 1057 | 36.5 | 1101 | 35.1 | 4 | 996 | 38.8 | 997 | 38.7 | 998 | 38.7 |
| 403.gcc | 4 | 762 | 42.3 | 767 | 42.0 | 764 | 42.1 | 4 | 764 | 42.2 | 760 | 42.4 | 765 | 42.1 |
| 429.mcf | 4 | 777 | 47.0 | 777 | 46.9 | 779 | 46.8 | 4 | 777 | 47.0 | 776 | 47.0 | 776 | 47.0 |
| 445.gobmk | 4 | 859 | 48.9 | 857 | 49.0 | 857 | 49.0 | 4 | 789 | 53.2 | 790 | 53.1 | 789 | 53.2 |
| 456.hmmer | 4 | 947 | 39.4 | 948 | 39.4 | 948 | 39.4 | 4 | 547 | 68.3 | 547 | 68.3 | 547 | 68.2 |
| 458.sjeng | 4 | 1071 | 45.2 | 1074 | 45.1 | 1069 | 45.3 | 4 | 962 | 50.3 | 963 | 50.3 | 963 | 50.3 |
| 462.libquantum | 4 | 1897 | 43.7 | 1894 | 43.8 | 1898 | 43.7 | 1 | 243 | 85.3 | 246 | 84.4 | 246 | 84.4 |
| 464.h264ref | 4 | 1126 | 78.6 | 1127 | 78.6 | 1126 | 78.6 | 4 | 1075 | 82.3 | 1077 | 82.2 | 1075 | 82.3 |
| 471.omnetpp | 4 | 784 | 31.9 | 784 | 31.9 | 784 | 31.9 | 4 | 734 | 34.0 | 736 | 34.0 | 734 | 34.1 |
| 473.astar | 4 | 868 | 32.4 | 869 | 32.3 | 866 | 32.4 | 4 | 796 | 35.3 | 799 | 35.2 | 796 | 35.3 |
| 483.xalancbmk | 4 | 502 | 55.0 | 503 | 54.8 | 501 | 55.1 | 4 | 502 | 55.0 | 503 | 54.8 | 501 | 55.1 |
General Notes
This result was measured on the Acer Altos R520. The Altos R720 and Altos R520 are electronically equivalent. All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode BIOS Settings Hardware Prefetcher set to ON Adjacent Cache Line Prefetch set to ON All results but peak 462.libquantum used taskset to bind processes to cores. "ulimit -s unlimited" was set for stacksize unlimited OMP_NUM_THREADS set to number of cores
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
