CPU2006 license: | 55 | Test date: | Feb-2008 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Mar-2008 |
Tested by: | Dell Inc. | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5460 |
CPU Characteristics: | 1333 MHz system bus |
CPU MHz: | 3166 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (4x4 GB DDR2-667) |
Disk Subsystem: | 1 x 300 GB SAS 15k RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V8.1 Binutils 2.17.50.0.15 |

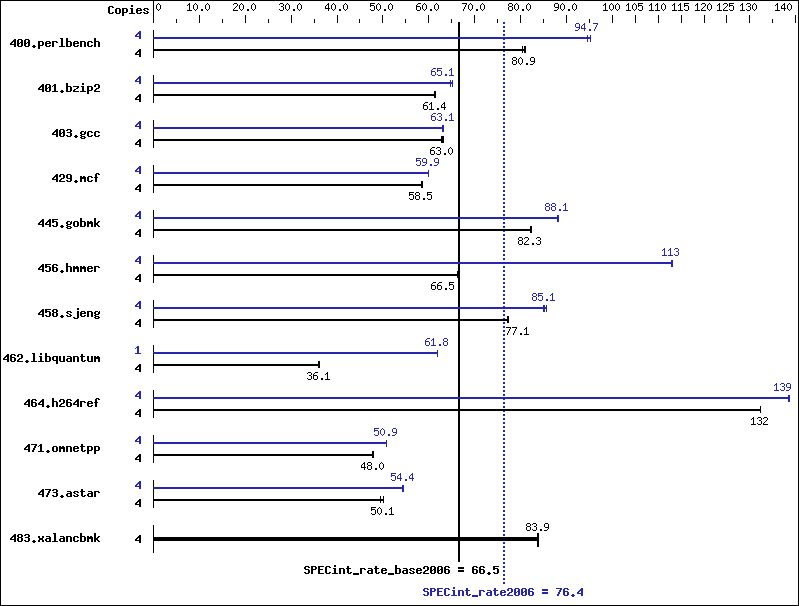

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 4 | 483 | 81.0 | 483 | 80.9 | 486 | 80.4 | 4 | 413 | 94.7 | 410 | 95.3 | 413 | 94.6 |
401.bzip2 | 4 | 631 | 61.2 | 629 | 61.4 | 628 | 61.5 | 4 | 592 | 65.2 | 593 | 65.1 | 596 | 64.8 |
403.gcc | 4 | 511 | 63.0 | 509 | 63.3 | 513 | 62.8 | 4 | 510 | 63.1 | 510 | 63.1 | 509 | 63.3 |
429.mcf | 4 | 623 | 58.5 | 623 | 58.5 | 625 | 58.4 | 4 | 609 | 59.9 | 609 | 59.9 | 608 | 60.0 |
445.gobmk | 4 | 510 | 82.3 | 510 | 82.3 | 510 | 82.2 | 4 | 477 | 88.0 | 476 | 88.1 | 475 | 88.4 |
456.hmmer | 4 | 561 | 66.5 | 561 | 66.5 | 563 | 66.3 | 4 | 331 | 113 | 330 | 113 | 330 | 113 |
458.sjeng | 4 | 628 | 77.1 | 628 | 77.1 | 625 | 77.4 | 4 | 569 | 85.1 | 569 | 85.1 | 565 | 85.6 |
462.libquantum | 4 | 2303 | 36.0 | 2293 | 36.1 | 2290 | 36.2 | 1 | 335 | 61.9 | 335 | 61.8 | 335 | 61.8 |
464.h264ref | 4 | 669 | 132 | 669 | 132 | 669 | 132 | 4 | 639 | 139 | 640 | 138 | 639 | 139 |
471.omnetpp | 4 | 524 | 47.7 | 521 | 48.0 | 521 | 48.0 | 4 | 491 | 50.9 | 492 | 50.9 | 491 | 50.9 |
473.astar | 4 | 567 | 49.5 | 559 | 50.2 | 560 | 50.1 | 4 | 516 | 54.4 | 516 | 54.4 | 516 | 54.5 |
483.xalancbmk | 4 | 329 | 83.9 | 329 | 83.8 | 329 | 84.0 | 4 | 329 | 83.9 | 329 | 83.8 | 329 | 84.0 |
OMP_NUM_THREADS set to number of cores KMP_STACK_SIZE set to 64M KMP_AFFINITY set to physical,0
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs
BIOS Settings: Adjacent Cache Line Prefetch = Disabled (default Enabled) Hardware Prefetcher = Disabled (default Enabled)
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-fast -inline-calloc -opt-malloc-options=3 |
-xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
429.mcf: | -fast -prefetch |
445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
483.xalancbmk: | basepeak = yes |
