| CPU2006 license: | 9001 | Test date: | Feb-2008 |
|---|---|---|---|
| Test sponsor: | Itautec | Hardware Availability: | Dec-2007 |
| Tested by: | Itautec | Software Availability: | Jan-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5405 |
| CPU Characteristics: | |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 * 2 GB DDR2 5300F, 2 rank, CL5 ECC) |
| Disk Subsystem: | 1 x SCSI, 73GB, 15000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux64 version 10.1 Build 20080112 Package ID: l_fc_p_10.1.012 Intel Fortran Compiler for Linux64 version 10.1 Build 20080112 Package ID: l_cc_p_10.1.012 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Multi-User, Run Level 3 |
| Base Pointers: | 64-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | Binutils 2.17.10.50 MicroQuill SmartHeap 8.1 |

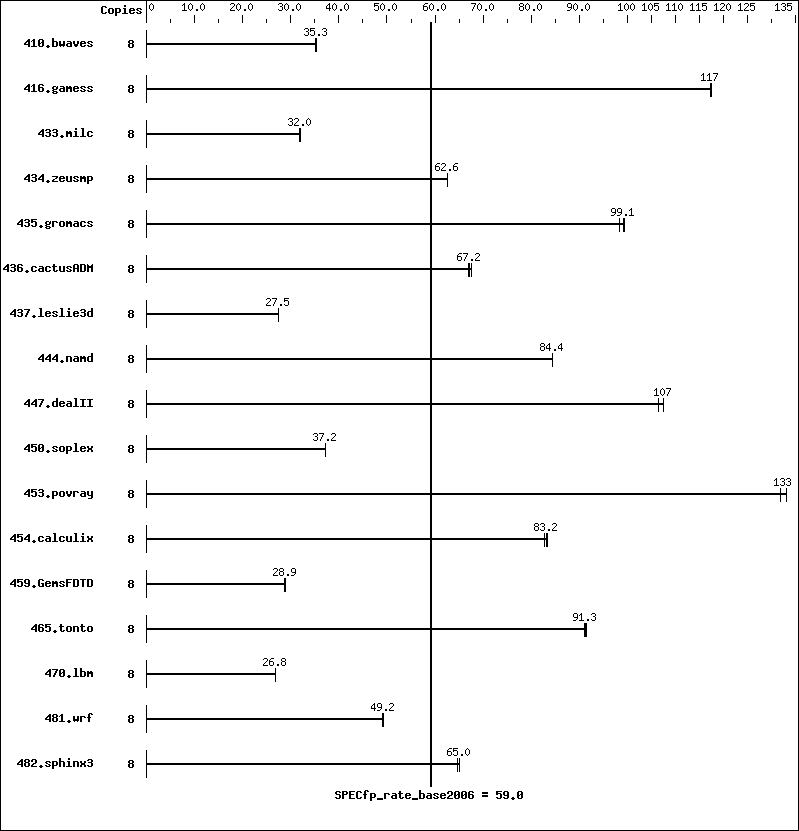

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 8 | 3086 | 35.2 | 3080 | 35.3 | 3084 | 35.3 | |||||||
| 416.gamess | 8 | 1333 | 117 | 1336 | 117 | 1335 | 117 | |||||||
| 433.milc | 8 | 2298 | 32.0 | 2298 | 32.0 | 2311 | 31.8 | |||||||
| 434.zeusmp | 8 | 1163 | 62.6 | 1161 | 62.7 | 1163 | 62.6 | |||||||
| 435.gromacs | 8 | 576 | 99.1 | 581 | 98.3 | 575 | 99.3 | |||||||
| 436.cactusADM | 8 | 1416 | 67.5 | 1427 | 67.0 | 1423 | 67.2 | |||||||
| 437.leslie3d | 8 | 2732 | 27.5 | 2731 | 27.5 | 2731 | 27.5 | |||||||
| 444.namd | 8 | 760 | 84.4 | 760 | 84.4 | 760 | 84.4 | |||||||
| 447.dealII | 8 | 860 | 106 | 852 | 107 | 852 | 107 | |||||||
| 450.soplex | 8 | 1790 | 37.3 | 1792 | 37.2 | 1792 | 37.2 | |||||||
| 453.povray | 8 | 320 | 133 | 323 | 132 | 320 | 133 | |||||||
| 454.calculix | 8 | 792 | 83.3 | 798 | 82.7 | 794 | 83.2 | |||||||
| 459.GemsFDTD | 8 | 2935 | 28.9 | 2966 | 28.6 | 2933 | 28.9 | |||||||
| 465.tonto | 8 | 862 | 91.3 | 861 | 91.5 | 864 | 91.2 | |||||||
| 470.lbm | 8 | 4102 | 26.8 | 4100 | 26.8 | 4100 | 26.8 | |||||||
| 481.wrf | 8 | 1813 | 49.3 | 1816 | 49.2 | 1818 | 49.1 | |||||||
| 482.sphinx3 | 8 | 2397 | 65.1 | 2397 | 65.0 | 2408 | 64.7 | |||||||
Operating System Notes
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run. '/usr/bin/taskset' used to bind benchmark copies to processors.
Platform Notes
BIOS configuration: Hardware Prefetcher Disabled (default Enabled)
General Notes
This result was measured on the Servidor Itautec MX201. The Servidor Itautec MX201 and the Servidor Itautec MX221 are electronically equivalent.
Base Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
