| CPU2006 license: | 22 | Test date: | Jan-2008 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Dec-2007 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5405 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB PC2-5300F, 2 rank, CAS 5-5-5, with ECC) |
| Disk Subsystem: | Seagate ST973451SS (SAS, 73GB, 15000rpm) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 Version 10.1 - Build 20070725 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Multiuser, Runlevel 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library, Version 8.1 binutils-2.17.tar.gz, Version 2.17 |

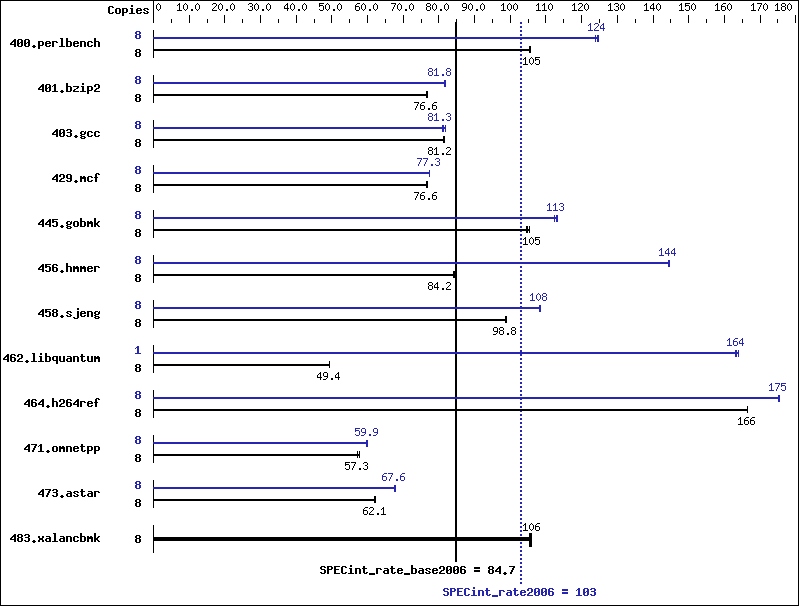

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 742 | 105 | 742 | 105 | 740 | 106 | 8 | 627 | 125 | 630 | 124 | 629 | 124 |
| 401.bzip2 | 8 | 1010 | 76.4 | 1004 | 76.9 | 1008 | 76.6 | 8 | 948 | 81.5 | 943 | 81.9 | 944 | 81.8 |
| 403.gcc | 8 | 793 | 81.2 | 793 | 81.2 | 790 | 81.5 | 8 | 792 | 81.3 | 787 | 81.9 | 794 | 81.1 |
| 429.mcf | 8 | 952 | 76.6 | 952 | 76.6 | 950 | 76.8 | 8 | 944 | 77.3 | 944 | 77.3 | 944 | 77.3 |
| 445.gobmk | 8 | 801 | 105 | 803 | 104 | 796 | 105 | 8 | 741 | 113 | 744 | 113 | 747 | 112 |
| 456.hmmer | 8 | 886 | 84.2 | 886 | 84.3 | 887 | 84.2 | 8 | 516 | 145 | 517 | 144 | 517 | 144 |
| 458.sjeng | 8 | 978 | 99.0 | 979 | 98.8 | 981 | 98.7 | 8 | 895 | 108 | 893 | 108 | 894 | 108 |
| 462.libquantum | 8 | 3355 | 49.4 | 3353 | 49.4 | 3354 | 49.4 | 1 | 127 | 163 | 126 | 164 | 127 | 164 |
| 464.h264ref | 8 | 1063 | 167 | 1064 | 166 | 1063 | 166 | 8 | 1011 | 175 | 1010 | 175 | 1009 | 175 |
| 471.omnetpp | 8 | 873 | 57.3 | 875 | 57.2 | 866 | 57.8 | 8 | 836 | 59.8 | 835 | 59.9 | 835 | 59.9 |
| 473.astar | 8 | 905 | 62.0 | 903 | 62.2 | 904 | 62.1 | 8 | 829 | 67.7 | 832 | 67.5 | 831 | 67.6 |
| 483.xalancbmk | 8 | 524 | 105 | 522 | 106 | 522 | 106 | 8 | 524 | 105 | 522 | 106 | 522 | 106 |
Operating System Notes
'OMP_NUM_THREADS' set to number of cores (default)
General Notes
This result has been produced with binaries provided and compiled by Intel. All binaries were built with 32-bit Intel compiler except: 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel compiler by changing the path for include and library files. BIOS configuration: Adjacent Sector Prefetch = Disable For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
