CPU2006 license: | 3 | Test date: | Dec-2007 |
---|---|---|---|
Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Sep-2007 |
Tested by: | Hewlett-Packard Company | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X7350 |
CPU Characteristics: | 2.93 GHz, 2x4 MB L2 shared, 1066 MHz system bus |
CPU MHz: | 2930 |
FPU: | Integrated |
CPU(s) enabled: | 16 cores, 4 chips, 4 cores/chip |
CPU(s) orderable: | 1,2,4 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (16x1 GB PC2-5300F CL5) |
Disk Subsystem: | 1x72 GB 15 K SAS |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 5.1 Kernel 2.6.18-53.el5 |
Compiler: | Intel C++ Compiler for applications running on IA-32 and Intel 64, Version 10.1 Build 20070913 Package ID: l_cc_p_10.1.008 |
Auto Parallel: | Yes |
File System: | ext2 |
System State: | Multi-user run level 3 |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | MicroQuill SmartHeap Library 8.1 binutils-2.17.50 |

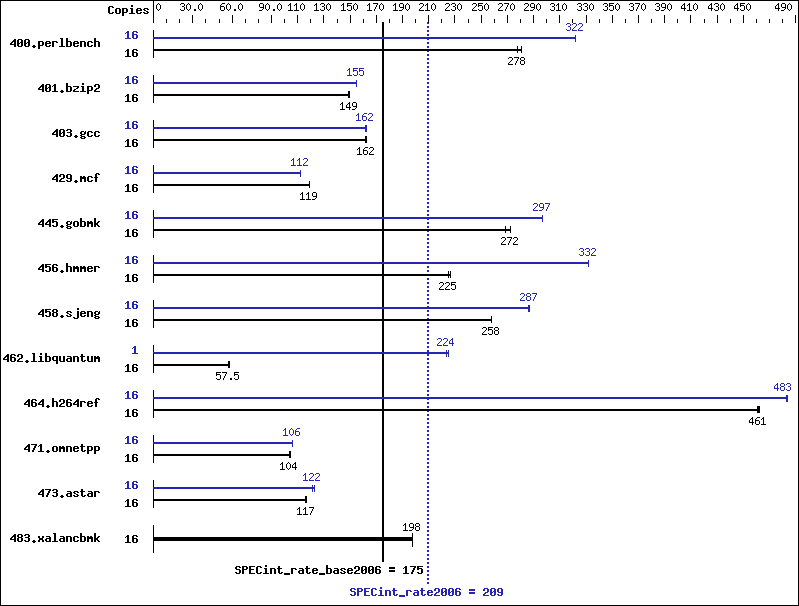

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 16 | 557 | 280 | 563 | 277 | 563 | 278 | 16 | 485 | 322 | 485 | 322 | 485 | 322 |
401.bzip2 | 16 | 1040 | 148 | 1033 | 149 | 1032 | 150 | 16 | 998 | 155 | 998 | 155 | 998 | 155 |
403.gcc | 16 | 792 | 163 | 795 | 162 | 794 | 162 | 16 | 791 | 163 | 796 | 162 | 795 | 162 |
429.mcf | 16 | 1227 | 119 | 1228 | 119 | 1227 | 119 | 16 | 1302 | 112 | 1304 | 112 | 1303 | 112 |
445.gobmk | 16 | 616 | 272 | 625 | 268 | 616 | 272 | 16 | 565 | 297 | 565 | 297 | 565 | 297 |
456.hmmer | 16 | 663 | 225 | 660 | 226 | 663 | 225 | 16 | 450 | 332 | 450 | 332 | 450 | 332 |
458.sjeng | 16 | 750 | 258 | 751 | 258 | 752 | 257 | 16 | 675 | 287 | 675 | 287 | 676 | 286 |
462.libquantum | 16 | 5781 | 57.3 | 5766 | 57.5 | 5746 | 57.7 | 1 | 92.1 | 225 | 92.7 | 224 | 92.6 | 224 |
464.h264ref | 16 | 768 | 461 | 768 | 461 | 766 | 462 | 16 | 733 | 483 | 734 | 483 | 732 | 484 |
471.omnetpp | 16 | 962 | 104 | 958 | 104 | 966 | 104 | 16 | 945 | 106 | 944 | 106 | 945 | 106 |
473.astar | 16 | 963 | 117 | 961 | 117 | 971 | 116 | 16 | 917 | 122 | 924 | 122 | 925 | 121 |
483.xalancbmk | 16 | 558 | 198 | 558 | 198 | 558 | 198 | 16 | 558 | 198 | 558 | 198 | 558 | 198 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 64M
BIOS configuration: Power Regulator set to Static High Performance Mode Adjacent Sector Prefetch Disabled Hardware Prefetcher Disabled
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-fast -inline-calloc -opt-malloc-options=3 |
-xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/cpu2006/SmartHeap_8.1/lib -lsmartheap |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
429.mcf: | -fast -prefetch |
445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/cpu2006/SmartHeap_8.1/lib -lsmartheap |
473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/cpu2006/SmartHeap_8.1/lib -lsmartheap |
483.xalancbmk: | basepeak = yes |
