SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision T3400 (Intel E8500, 3.16 GHz)

CPU2006 license: 55 Test date: Dec-2007
Test sponsor: Dell Inc. Hardware Availability: Jan-2008
Tested by: Dell Inc. Software Availability: Nov-2007

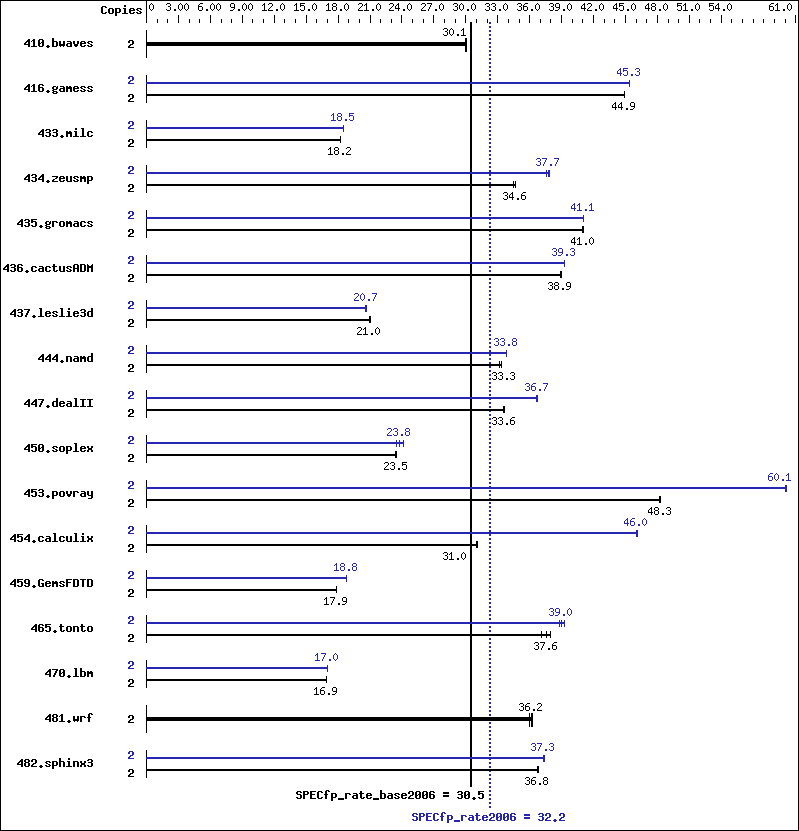

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Duo E8500
CPU Characteristics: 1333 MHz Bus Speed
CPU MHz: 3166
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 4 GB (4x1 GB 800 MHz ECC CL6 DDR2)
Disk Subsystem: 1 x 80 GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows XP Professional x64 Edition SP2
Compiler: Intel C++ Compiler for Intel 64, Version 10.1
Build 20070809 Package ID: w_cc_p_10.1.011
Intel Visual Fortran Compiler for Intel 64,
Version 10.0
Build 20070809 Package ID: w_fc_p_10.1.011
Microsoft Visual Studio 2005 SP1
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.1 for x64

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 904 30.1 908 29.9 903 30.1 2 904 30.1 908 29.9 903 30.1
416.gamess 2 873 44.9 873 44.9 873 44.9 2 864 45.3 864 45.3 864 45.3
433.milc 2 1009 18.2 1009 18.2 1009 18.2 2 992 18.5 993 18.5 992 18.5
434.zeusmp 2 526 34.6 524 34.7 528 34.5 2 482 37.7 481 37.8 484 37.6
435.gromacs 2 348 41.0 348 41.0 348 41.0 2 348 41.0 348 41.1 348 41.1
436.cactusADM 2 615 38.9 614 38.9 613 39.0 2 609 39.3 608 39.3 608 39.3
437.leslie3d 2 896 21.0 896 21.0 895 21.0 2 912 20.6 910 20.7 909 20.7
444.namd 2 484 33.1 481 33.3 481 33.4 2 475 33.8 475 33.8 474 33.8
447.dealII 2 683 33.5 681 33.6 681 33.6 2 624 36.7 625 36.6 622 36.8
450.soplex 2 712 23.4 710 23.5 709 23.5 2 710 23.5 692 24.1 701 23.8
453.povray 2 220 48.3 220 48.3 221 48.2 2 177 60.1 177 60.1 177 60.1
454.calculix 2 532 31.0 532 31.0 530 31.1 2 358 46.0 358 46.1 359 46.0
459.GemsFDTD 2 1189 17.8 1187 17.9 1186 17.9 2 1131 18.8 1131 18.8 1131 18.8
465.tonto 2 524 37.6 530 37.1 519 37.9 2 507 38.8 502 39.2 505 39.0
470.lbm 2 1624 16.9 1624 16.9 1624 16.9 2 1617 17.0 1616 17.0 1616 17.0
481.wrf 2 621 36.0 617 36.2 615 36.3 2 621 36.0 617 36.2 615 36.3
482.sphinx3 2 1060 36.8 1061 36.7 1058 36.8 2 1045 37.3 1046 37.3 1042 37.4

General Notes

 Binaries were built on Windows Vista Ultimate (64-bit)

Base Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -Qauto-ilp32   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qauto-ilp32   -Qcxx_features   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Oa   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE
470.lbm:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Qscalar-rep-   -Qprefetch   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE
482.sphinx3:  -fast   -Qauto-ilp32   -Qunroll2   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Oa   -Qcxx_features   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE
447.dealII:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Qprefetch   -Qcxx_features   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE
450.soplex:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qcxx_features   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll4   -Qansi-alias   -Qcxx_features   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000    -link /FORCE:MULTIPLE
434.zeusmp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qprec-div-   -Qunroll0   -Qscalar-rep-   /F1000000000    -link /FORCE:MULTIPLE
437.leslie3d:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qprefetch   /F1000000000    -link /FORCE:MULTIPLE
459.GemsFDTD:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Ob0   -Qprefetch   /F1000000000    -link /FORCE:MULTIPLE
465.tonto:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll4   -Qauto   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Oa   -Qprefetch   /F1000000000    -link /FORCE:MULTIPLE
436.cactusADM:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Qprefetch   /F1000000000    -link /FORCE:MULTIPLE
454.calculix:  -fast   -Qauto-ilp32   -Qunroll-aggressive   /F1000000000    -link /FORCE:MULTIPLE
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.ic10.1.windows.flags.20090714.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.ic10.1.windows.flags.20090714.01.xml.
