CPU2006 license: | 22 | Test date: | Nov-2007 |
---|---|---|---|
Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Nov-2007 |
Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5410 |
CPU Characteristics: | |
CPU MHz: | 2333 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 8 GB (8x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
Disk Subsystem: | 1x SATA II, 400 GB, 7200 rpm |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP1, kernel 2.6.16.46-0.12-smp |
Compiler: | Intel C++ Compiler for Linux32 and Linux64, Version 10.1, Build 20070913 |
Auto Parallel: | Yes |
File System: | ext3 |
System State: | Multi-User, Run Level 3 |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | SmartHeap Library, Version 8.1 (available from www.microquill.com) binutils-2.17.50.0.5-0.1.x86_64 |

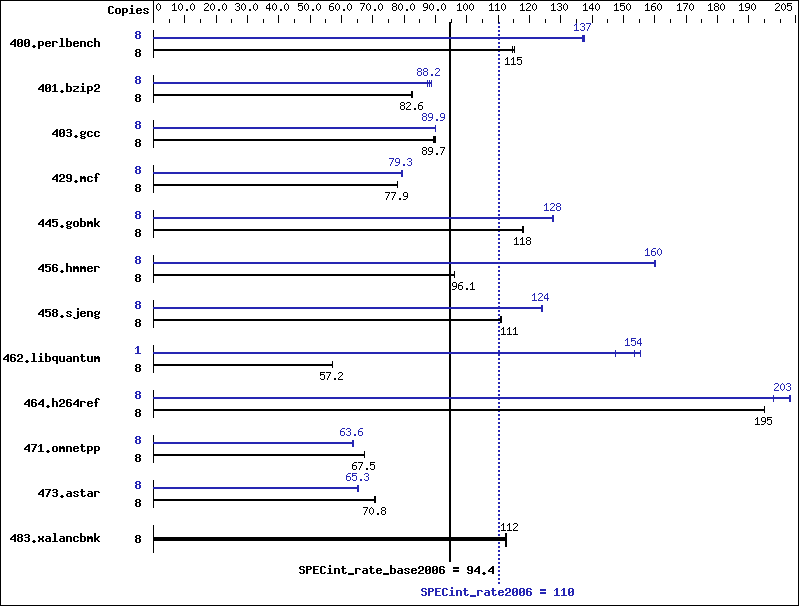

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 8 | 678 | 115 | 682 | 115 | 678 | 115 | 8 | 568 | 138 | 571 | 137 | 569 | 137 |
401.bzip2 | 8 | 933 | 82.8 | 935 | 82.6 | 939 | 82.3 | 8 | 871 | 88.6 | 875 | 88.2 | 883 | 87.4 |
403.gcc | 8 | 718 | 89.7 | 715 | 90.0 | 720 | 89.5 | 8 | 716 | 89.9 | 715 | 90.1 | 717 | 89.9 |
429.mcf | 8 | 936 | 77.9 | 936 | 77.9 | 936 | 77.9 | 8 | 921 | 79.2 | 919 | 79.4 | 920 | 79.3 |
445.gobmk | 8 | 711 | 118 | 712 | 118 | 711 | 118 | 8 | 659 | 127 | 657 | 128 | 656 | 128 |
456.hmmer | 8 | 777 | 96.0 | 777 | 96.1 | 777 | 96.1 | 8 | 466 | 160 | 466 | 160 | 466 | 160 |
458.sjeng | 8 | 872 | 111 | 873 | 111 | 872 | 111 | 8 | 782 | 124 | 783 | 124 | 780 | 124 |
462.libquantum | 8 | 2900 | 57.2 | 2900 | 57.2 | 2895 | 57.3 | 1 | 133 | 155 | 140 | 148 | 135 | 154 |
464.h264ref | 8 | 908 | 195 | 908 | 195 | 908 | 195 | 8 | 872 | 203 | 871 | 203 | 894 | 198 |
471.omnetpp | 8 | 741 | 67.5 | 741 | 67.5 | 743 | 67.3 | 8 | 786 | 63.6 | 786 | 63.6 | 785 | 63.7 |
473.astar | 8 | 795 | 70.7 | 793 | 70.8 | 793 | 70.8 | 8 | 861 | 65.3 | 860 | 65.3 | 860 | 65.3 |
483.xalancbmk | 8 | 491 | 112 | 491 | 112 | 490 | 113 | 8 | 491 | 112 | 491 | 112 | 490 | 113 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
BIOS configuration: Enhanced Speedstep Technology = Disable Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable SnoopFilter = Enable
All binaries were built with 32-bit Intel compiler except: 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel compiler by changing the path for include and library files. For information about Fujitsu Siemens Computers in your country please see: http://www.fujitsu-siemens.com/countries
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-fast -inline-calloc -opt-malloc-options=3 |
-xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
429.mcf: | -fast -prefetch |
445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block |
473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine |
483.xalancbmk: | basepeak = yes |
