SPEC® CFP2006 Result

NEC Corporation

Express5800/110Rh-1
(Intel Xeon processor X3210)

SPECfp®_rate2006 = 33.0

SPECfp_rate_base2006 = 31.8

CPU2006 license:	9006	Test date:	Nov-2007
Test sponsor:	NEC Corporation	Hardware Availability:	Jan-2007
Tested by:	NEC Corporation	Software Availability:	Apr-2007

Hardware
CPU Name:	Intel Xeon X3210
CPU Characteristics:	2.13 GHz, 2x4 MB L2 shared, 1066 MHz bus
CPU MHz:	2133
FPU:	Integrated
CPU(s) enabled:	4 cores, 1 chip, 4 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	4 GB (4x1 GB PC2-5300E, 2 rank, CL5-5-5, ECC)
Disk Subsystem:	1x80 GB SATAII, 7200RPM
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64), Kernel 2.6.16.21-0.8-smp
Compiler:	Intel C++ Compiler for IA32/EM64T application, Version 9.1 - Build 20070320, Package-ID: l_cc_c_9.1.049 Intel Fortran Compiler for IA32/EM64T application, Version 9.1 - Build 20070320, Package ID: l_fc_c_9.1.045
Auto Parallel:	No
File System:	ext2
System State:	Multiuser, Runlevel 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

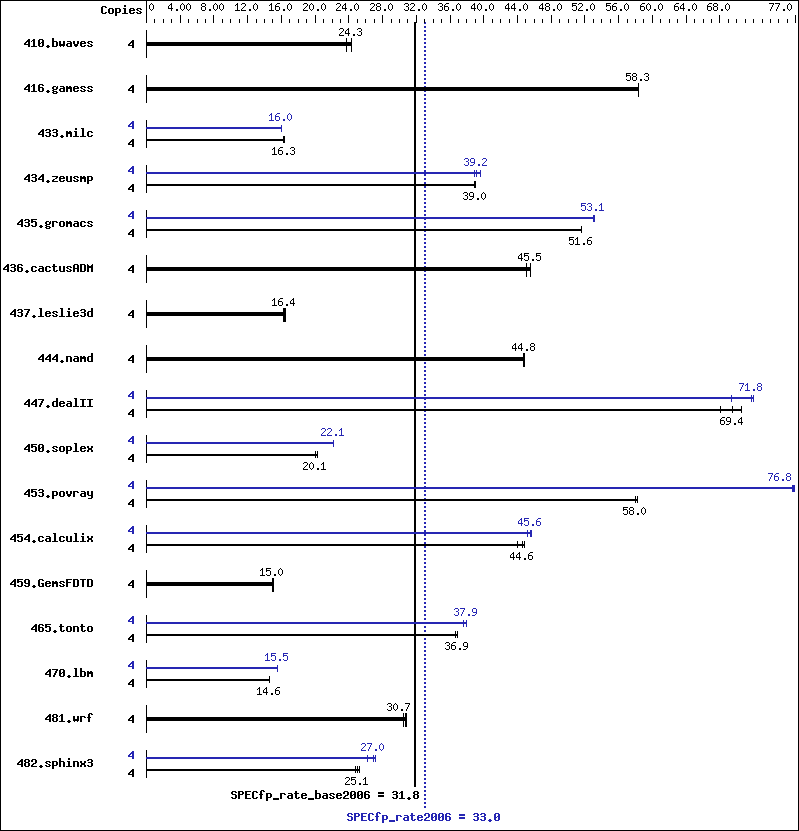

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	4	2291	23.7	2239	24.3	2239	24.3	4	2291	23.7	2239	24.3	2239	24.3
416.gamess	4	1342	58.3	1343	58.3	1343	58.3	4	1342	58.3	1343	58.3	1343	58.3
433.milc	4	2256	16.3	2248	16.3	2240	16.4	4	2300	16.0	2300	16.0	2299	16.0
434.zeusmp	4	933	39.0	932	39.0	935	38.9	4	918	39.6	936	38.9	929	39.2
435.gromacs	4	554	51.6	554	51.6	553	51.6	4	538	53.0	538	53.1	538	53.1
436.cactusADM	4	1060	45.1	1049	45.5	1049	45.6	4	1060	45.1	1049	45.5	1049	45.6
437.leslie3d	4	2312	16.3	2295	16.4	2283	16.5	4	2312	16.3	2295	16.4	2283	16.5
444.namd	4	717	44.7	716	44.8	716	44.8	4	717	44.7	716	44.8	716	44.8
447.dealII	4	672	68.1	659	69.4	648	70.6	4	660	69.3	636	72.0	637	71.8
450.soplex	4	1649	20.2	1662	20.1	1664	20.0	4	1507	22.1	1503	22.2	1507	22.1
453.povray	4	367	58.0	365	58.2	367	58.0	4	277	76.8	277	76.8	278	76.6
454.calculix	4	750	44.0	740	44.6	737	44.8	4	722	45.7	730	45.2	724	45.6
459.GemsFDTD	4	2839	14.9	2832	15.0	2827	15.0	4	2839	14.9	2832	15.0	2827	15.0
465.tonto	4	1066	36.9	1074	36.6	1067	36.9	4	1046	37.6	1037	37.9	1036	38.0
470.lbm	4	3764	14.6	3783	14.5	3756	14.6	4	3538	15.5	3536	15.5	3528	15.6
481.wrf	4	1466	30.5	1457	30.7	1447	30.9	4	1466	30.5	1457	30.7	1447	30.9
482.sphinx3	4	3147	24.8	3108	25.1	3084	25.3	4	2869	27.2	2973	26.2	2891	27.0

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes

 The system bus runs at 1066 MHz
 All binaries were built with 64-bit Intel compiler except:
 433.milc, 434.zeusmp, 450.soplex, 470.lbm and 482.sphinx3 in peak were built with
 32-bit Intel compiler by changing the path for include and library files.

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

-fast

C++ benchmarks:

-fast

Fortran benchmarks:

-fast

Benchmarks using both Fortran and C:

-fast

Peak Compiler Invocation

C benchmarks:

/opt/intel/cc/9.1.049/bin/icc -I/opt/intel/cc/9.1.049/include -L/opt/intel/cc/9.1.049/lib

C++ benchmarks (except as noted below):

	icpc
450.soplex:	/opt/intel/cc/9.1.049/bin/icpc -I/opt/intel/cc/9.1.049/include -L/opt/intel/cc/9.1.049/lib

Fortran benchmarks (except as noted below):

	ifort
434.zeusmp:	/opt/intel/fc/9.1.045/bin/ifort -I/opt/intel/fc/9.1.045/include -L/opt/intel/fc/9.1.045/lib

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:	-prof_gen(pass 1) -prof_use(pass 2) -fast
470.lbm:	Same as 433.milc
482.sphinx3:	-fast

C++ benchmarks:

444.namd:	basepeak = yes
447.dealII:	-prof_gen(pass 1) -prof_use(pass 2) -fast
450.soplex:	Same as 447.dealII
453.povray:	Same as 447.dealII

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	basepeak = yes
434.zeusmp:	-fast
437.leslie3d:	basepeak = yes
459.GemsFDTD:	basepeak = yes
465.tonto:	-prof_gen(pass 1) -prof_use(pass 2) -fast

Benchmarks using both Fortran and C:

435.gromacs:	-prof_gen(pass 1) -prof_use(pass 2) -fast
436.cactusADM:	basepeak = yes
454.calculix:	Same as 435.gromacs
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-ic91-FP-linux-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-ic91-FP-linux-flags.xml.
