SPEC® CFP2006 Result

NEC Corporation

Express5800/140Re-4
(Intel Xeon processor 7110M)

SPECfp®_rate2006 = 43.9

SPECfp_rate_base2006 = 42.8

CPU2006 license:	9006	Test date:	Nov-2007
Test sponsor:	NEC Corporation	Hardware Availability:	Oct-2006
Tested by:	NEC Corporation	Software Availability:	Apr-2007

Hardware
CPU Name:	Intel Xeon 7110M
CPU Characteristics:	2.60 GHz, 800 MHz bus
CPU MHz:	2600
FPU:	Integrated
CPU(s) enabled:	8 cores, 4 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable:	1,2,4 chips
Primary Cache:	12 K micro-ops I + 16 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	4 MB I+D on chip per chip
Other Cache:	None
Memory:	32 GB (16x2 GB PC2-3200R, 2 rank, CL3-3-3, ECC)
Disk Subsystem:	1x146.5 GB SAS, 15000RPM
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64), Kernel 2.6.16.21-0.8-smp
Compiler:	Intel C++ Compiler for IA32/EM64T application, Version 9.1 - Build 20070320, Package-ID: l_cc_c_9.1.049 Intel Fortran Compiler for IA32/EM64T application, Version 9.1 - Build 20070320, Package ID: l_fc_c_9.1.045
Auto Parallel:	No
File System:	ext2
System State:	Multiuser, Runlevel 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

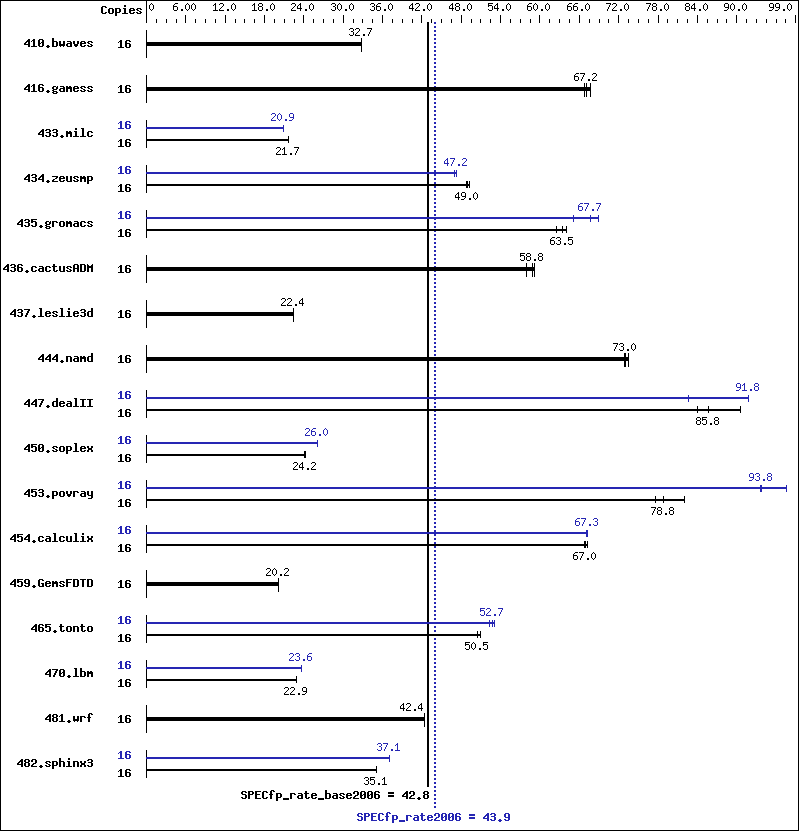

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	16	6643	32.7	6646	32.7	6641	32.7	16	6643	32.7	6646	32.7	6641	32.7
416.gamess	16	4692	66.8	4632	67.6	4664	67.2	16	4692	66.8	4632	67.6	4664	67.2
433.milc	16	6770	21.7	6770	21.7	6775	21.7	16	7015	20.9	7014	20.9	7012	20.9
434.zeusmp	16	2971	49.0	2958	49.2	2987	48.7	16	3084	47.2	3096	47.0	3084	47.2
435.gromacs	16	1826	62.5	1785	64.0	1800	63.5	16	1753	65.2	1687	67.7	1657	68.9
436.cactusADM	16	3298	58.0	3252	58.8	3228	59.2	16	3298	58.0	3252	58.8	3228	59.2
437.leslie3d	16	6704	22.4	6706	22.4	6706	22.4	16	6704	22.4	6706	22.4	6706	22.4
444.namd	16	1759	73.0	1760	72.9	1744	73.6	16	1759	73.0	1760	72.9	1744	73.6
447.dealII	16	2177	84.1	2134	85.8	2019	90.6	16	1993	91.8	2213	82.7	1993	91.8
450.soplex	16	5518	24.2	5523	24.2	5516	24.2	16	5130	26.0	5127	26.0	5126	26.0
453.povray	16	1080	78.8	1098	77.6	1037	82.1	16	909	93.6	907	93.8	872	97.6
454.calculix	16	1971	67.0	1976	66.8	1963	67.3	16	1967	67.1	1963	67.3	1962	67.3
459.GemsFDTD	16	8423	20.2	8427	20.1	8425	20.2	16	8423	20.2	8427	20.1	8425	20.2
465.tonto	16	3088	51.0	3115	50.5	3123	50.4	16	2968	53.0	2988	52.7	3009	52.3
470.lbm	16	9615	22.9	9616	22.9	9614	22.9	16	9329	23.6	9330	23.6	9327	23.6
481.wrf	16	4210	42.4	4219	42.4	4217	42.4	16	4210	42.4	4219	42.4	4217	42.4
482.sphinx3	16	8879	35.1	8876	35.1	8882	35.1	16	8400	37.1	8401	37.1	8405	37.1

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes


 The system bus runs at 800 MHz
 All binaries were built with 64-bit Intel compiler except:
 433.milc, 434.zeusmp, 450.soplex, 470.lbm and 482.sphinx3 in peak were built with
 32-bit Intel compiler by changing the path for include and library files.

 The Express5800/140Hf and the Express5800/140Re-4 models are
 electronically equivalent.
 The results have been measured on a Express5800/140Re-4 model.

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

-fast

C++ benchmarks:

-fast

Fortran benchmarks:

-fast

Benchmarks using both Fortran and C:

-fast

Peak Compiler Invocation

C benchmarks:

/opt/intel/cc/9.1.049/bin/icc -I/opt/intel/cc/9.1.049/include -L/opt/intel/cc/9.1.049/lib

C++ benchmarks (except as noted below):

	icpc
450.soplex:	/opt/intel/cc/9.1.049/bin/icpc -I/opt/intel/cc/9.1.049/include -L/opt/intel/cc/9.1.049/lib

Fortran benchmarks (except as noted below):

	ifort
434.zeusmp:	/opt/intel/fc/9.1.045/bin/ifort -I/opt/intel/fc/9.1.045/include -L/opt/intel/fc/9.1.045/lib

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:	-prof_gen(pass 1) -prof_use(pass 2) -fast
470.lbm:	Same as 433.milc
482.sphinx3:	-fast

C++ benchmarks:

444.namd:	basepeak = yes
447.dealII:	-prof_gen(pass 1) -prof_use(pass 2) -fast
450.soplex:	Same as 447.dealII
453.povray:	Same as 447.dealII

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	basepeak = yes
434.zeusmp:	-fast
437.leslie3d:	basepeak = yes
459.GemsFDTD:	basepeak = yes
465.tonto:	-prof_gen(pass 1) -prof_use(pass 2) -fast

Benchmarks using both Fortran and C:

435.gromacs:	-prof_gen(pass 1) -prof_use(pass 2) -fast
436.cactusADM:	basepeak = yes
454.calculix:	Same as 435.gromacs
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-ic91-FP-linux-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-ic91-FP-linux-flags.xml.
