SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/140Hf
(Intel Xeon processor 7110M)

CPU2006 license: 9006 Test date: Nov-2007
Test sponsor: NEC Corporation Hardware Availability: Oct-2006
Tested by: NEC Corporation Software Availability: Apr-2007

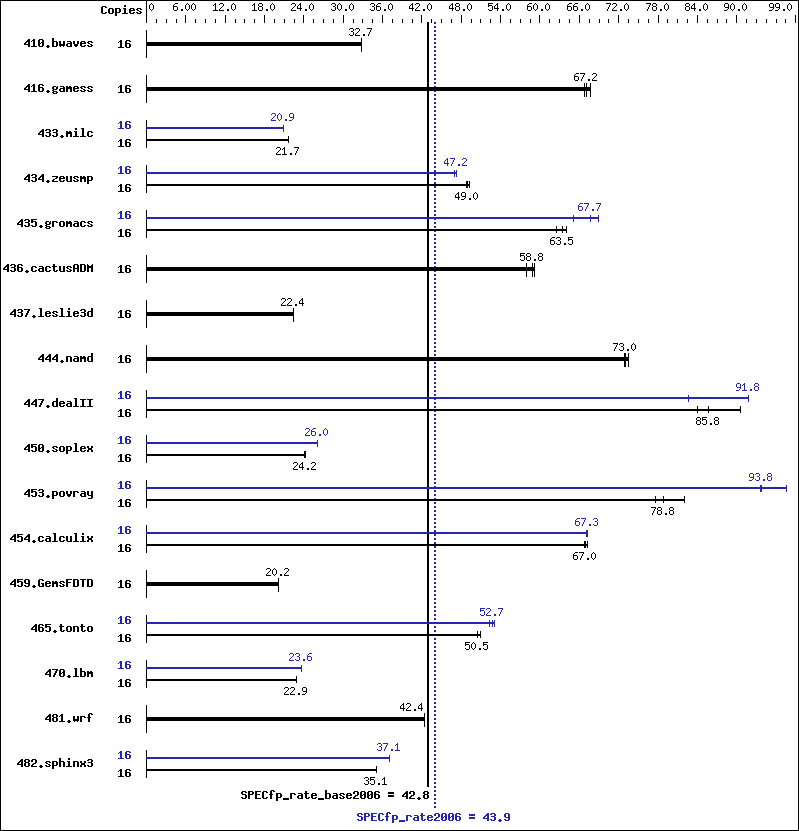

Benchmark results graph
Hardware
CPU Name: Intel Xeon 7110M
CPU Characteristics: 2.60 GHz, 800 MHz bus
CPU MHz: 2600
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1,2,4 chips
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (16x2 GB PC2-3200R, 2 rank, CL3-3-3, ECC)
Disk Subsystem: 1x146.5 GB SAS, 15000RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64),
Kernel 2.6.16.21-0.8-smp
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 9.1 - Build 20070320, Package-ID:
l_cc_c_9.1.049
Intel Fortran Compiler for IA32/EM64T application,
Version 9.1 - Build 20070320, Package ID:
l_fc_c_9.1.045
Auto Parallel: No
File System: ext2
System State: Multiuser, Runlevel 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 16 6643 32.7 6646 32.7 6641 32.7 16 6643 32.7 6646 32.7 6641 32.7
416.gamess 16 4692 66.8 4632 67.6 4664 67.2 16 4692 66.8 4632 67.6 4664 67.2
433.milc 16 6770 21.7 6770 21.7 6775 21.7 16 7015 20.9 7014 20.9 7012 20.9
434.zeusmp 16 2971 49.0 2958 49.2 2987 48.7 16 3084 47.2 3096 47.0 3084 47.2
435.gromacs 16 1826 62.5 1785 64.0 1800 63.5 16 1753 65.2 1687 67.7 1657 68.9
436.cactusADM 16 3298 58.0 3252 58.8 3228 59.2 16 3298 58.0 3252 58.8 3228 59.2
437.leslie3d 16 6704 22.4 6706 22.4 6706 22.4 16 6704 22.4 6706 22.4 6706 22.4
444.namd 16 1759 73.0 1760 72.9 1744 73.6 16 1759 73.0 1760 72.9 1744 73.6
447.dealII 16 2177 84.1 2134 85.8 2019 90.6 16 1993 91.8 2213 82.7 1993 91.8
450.soplex 16 5518 24.2 5523 24.2 5516 24.2 16 5130 26.0 5127 26.0 5126 26.0
453.povray 16 1080 78.8 1098 77.6 1037 82.1 16 909 93.6 907 93.8 872 97.6
454.calculix 16 1971 67.0 1976 66.8 1963 67.3 16 1967 67.1 1963 67.3 1962 67.3
459.GemsFDTD 16 8423 20.2 8427 20.1 8425 20.2 16 8423 20.2 8427 20.1 8425 20.2
465.tonto 16 3088 51.0 3115 50.5 3123 50.4 16 2968 53.0 2988 52.7 3009 52.3
470.lbm 16 9615 22.9 9616 22.9 9614 22.9 16 9329 23.6 9330 23.6 9327 23.6
481.wrf 16 4210 42.4 4219 42.4 4217 42.4 16 4210 42.4 4219 42.4 4217 42.4
482.sphinx3 16 8879 35.1 8876 35.1 8882 35.1 16 8400 37.1 8401 37.1 8405 37.1

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes


 The system bus runs at 800 MHz
 All binaries were built with 64-bit Intel compiler except:
 433.milc, 434.zeusmp, 450.soplex, 470.lbm and 482.sphinx3 in peak were built with
 32-bit Intel compiler by changing the path for include and library files.

 The Express5800/140Hf and the Express5800/140Re-4 models are
 electronically equivalent.
 The results have been measured on a Express5800/140Re-4 model.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 /opt/intel/cc/9.1.049/bin/icc   -I/opt/intel/cc/9.1.049/include   -L/opt/intel/cc/9.1.049/lib

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/9.1.049/bin/icpc   -I/opt/intel/cc/9.1.049/include   -L/opt/intel/cc/9.1.049/lib

Fortran benchmarks (except as noted below):

 ifort
434.zeusmp:  /opt/intel/fc/9.1.045/bin/ifort   -I/opt/intel/fc/9.1.045/include   -L/opt/intel/fc/9.1.045/lib

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
470.lbm:  Same as 433.milc
482.sphinx3:  -fast

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
450.soplex:  Same as 447.dealII
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  basepeak = yes
434.zeusmp:  -fast
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast

Benchmarks using both Fortran and C:

435.gromacs:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
436.cactusADM:  basepeak = yes
454.calculix:  Same as 435.gromacs
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-ic91-FP-linux-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-ic91-FP-linux-flags.xml.
