SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/140Hf
(Intel Xeon processor 7110M)

SPECfp®2006 = 10.0

CPU2006 license: 9006 Test date: Nov-2007
Test sponsor: NEC Corporation Hardware Availability: Oct-2006
Tested by: NEC Corporation Software Availability: Apr-2007

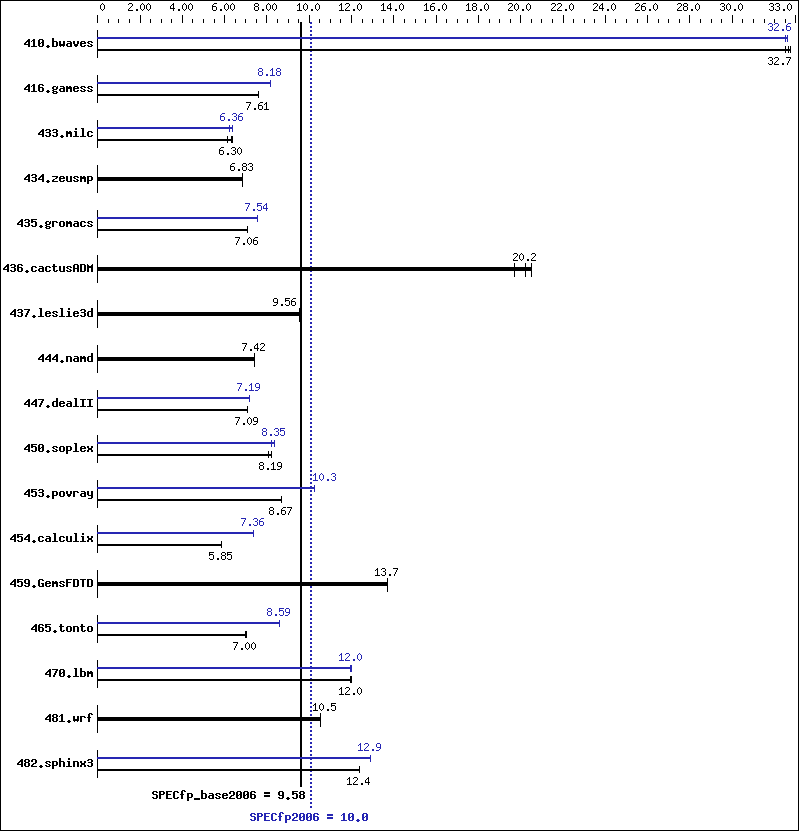

Benchmark results graph
Hardware
CPU Name: Intel Xeon 7110M
CPU Characteristics: 2.60 GHz, 800 MHz bus
CPU MHz: 2600
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1,2,4 chips
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (16x2 GB PC2-3200R, 2 rank, CL3-3-3,
ECC)
Disk Subsystem: 1x146.5 GB SAS, 15000RPM
Other Hardware: None
Software
Operating System: Windows Server 2003 Enterprise x64 Edition
Service Pack1
Compiler: Intel C++ Compiler for EM64T version 9.1
Build 20070322, Package-ID W_CC_C_9.1.037
Intel Fortran Compiler for EM64T version 9.1
Build 20070322, Package-ID W_FC_C_9.1.037
Microsoft Visual Studio 2005 (libr. & linker)
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: MicroQuill SmartHeap Library 8.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 416 32.7  415 32.7  418 32.5  417 32.6  418 32.5  417 32.6
416.gamess 2576 7.60 2574 7.61 2574 7.61 2394 8.18 2394 8.18 2394 8.18
433.milc 1441 6.37 1457 6.30 1498 6.13 1444 6.36 1472 6.24 1438 6.38
434.zeusmp 1332 6.83 1332 6.83 1332 6.83 1332 6.83 1332 6.83 1332 6.83
435.gromacs 1011 7.06 1011 7.06 1011 7.06 947 7.54 947 7.54 948 7.54
436.cactusADM 591 20.2  607 19.7  582 20.5  591 20.2  607 19.7  582 20.5
437.leslie3d 983 9.56 983 9.56 985 9.55 983 9.56 983 9.56 985 9.55
444.namd 1081 7.42 1081 7.42 1081 7.42 1081 7.42 1081 7.42 1081 7.42
447.dealII 1615 7.08 1614 7.09 1614 7.09 1591 7.19 1591 7.19 1591 7.19
450.soplex 1030 8.09 1018 8.20 1018 8.19 1012 8.24 999 8.35 999 8.35
453.povray 614 8.67 614 8.67 614 8.67 519 10.3  519 10.3  519 10.2
454.calculix 1412 5.84 1411 5.85 1410 5.85 1122 7.36 1122 7.35 1122 7.36
459.GemsFDTD 774 13.7  774 13.7  774 13.7  774 13.7  774 13.7  774 13.7
465.tonto 1406 7.00 1402 7.02 1409 6.98 1146 8.58 1146 8.59 1146 8.59
470.lbm 1148 12.0  1144 12.0  1144 12.0  1149 12.0  1147 12.0  1147 12.0
481.wrf 1062 10.5  1061 10.5  1062 10.5  1062 10.5  1061 10.5  1062 10.5
482.sphinx3 1575 12.4  1574 12.4  1575 12.4  1510 12.9  1510 12.9  1509 12.9

General Notes


 The system bus runs at 800 MHz
 All binaries were built with 64-bit Intel compiler.

 The Express5800/140Hf and the Express5800/140Re-4 models are
 electronically equivalent.
 The results have been measured on a Express5800/140Re-4 model.

Base Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc8   -Qc99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -D_Complex=   -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -D_Complex=   -DSPEC_CPU_P64
436.cactusADM:  -D_Complex=   -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -D_Complex=   -DSPEC_CPU_P64   -DBOOST_NO_INTRINSIC_WCHAR_T   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -D_Complex=   -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -D_Complex=   -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -D_Complex=   -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -Qparallel   -F950000000   shlW32M.lib    -link -FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qparallel   -Qcxx-features   -F950000000   shlW32M.lib    -link -FORCE:MULTIPLE

Fortran benchmarks:

 -fast   -Qparallel   -F950000000   shlW32M.lib    -link -FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   -Qparallel   -F950000000   shlW32M.lib    -link -FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc8   -Qc99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F950000000   shlW32M.lib    -link -FORCE:MULTIPLE

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx-features   -F950000000   shlW32M.lib    -link -FORCE:MULTIPLE
450.soplex:  Same as 447.dealII
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qparallel   -F950000000   shlW32M.lib    -link -FORCE:MULTIPLE
416.gamess:  -fast   -F950000000   shlW32M.lib    -link -FORCE:MULTIPLE
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  Same as 410.bwaves

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F950000000   shlW32M.lib    -link -FORCE:MULTIPLE
436.cactusADM:  basepeak = yes
454.calculix:  Same as 435.gromacs
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-ic91-FP-win-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-ic91-FP-win-flags.xml.
