CPU2006 license: | 11 | Test date: | Nov-2007 |
---|---|---|---|
Test sponsor: | IBM Corporation | Hardware Availability: | Jan-2008 |
Tested by: | IBM Corporation | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5460 |
CPU Characteristics: | 1333MHz system bus |
CPU MHz: | 3158 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (8 x 2 GB DDR2-5300F ECC) |
Disk Subsystem: | 1 x 36 GB SAS, 15000 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SLES10 (x86_64), 2.6.16.21-0.8-smp |
Compiler: | Intel C++ and Fortran Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008, l_fc_p_10.1.008 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Multi-user, run level 3 |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.17.50.0.15 |

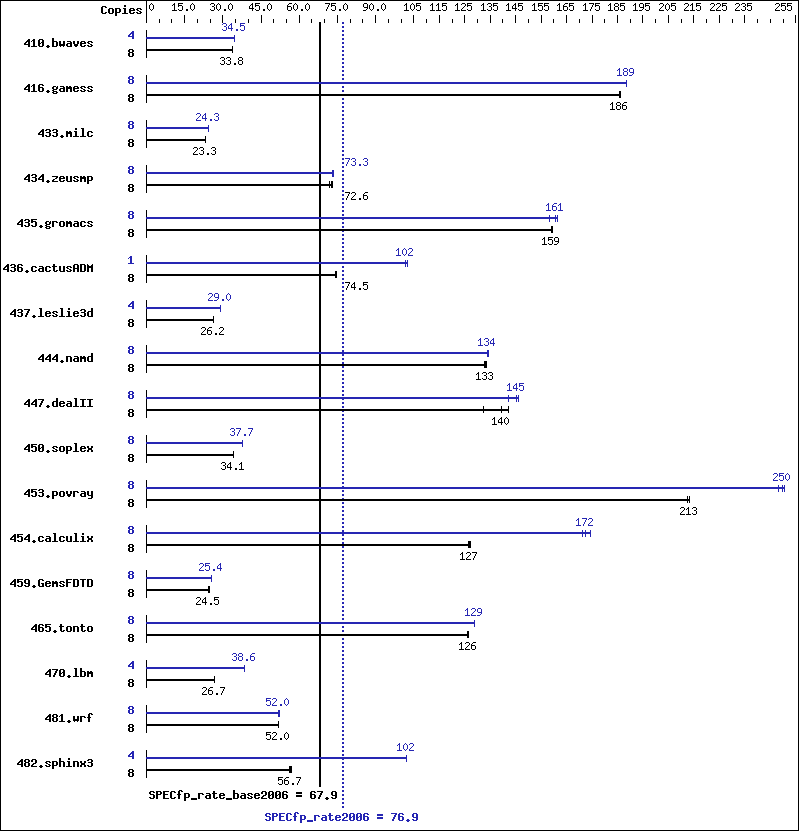

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 3218 | 33.8 | 3216 | 33.8 | 3217 | 33.8 | 4 | 1579 | 34.4 | 1578 | 34.5 | 1578 | 34.5 |
416.gamess | 8 | 841 | 186 | 843 | 186 | 843 | 186 | 8 | 831 | 189 | 831 | 189 | 830 | 189 |
433.milc | 8 | 3149 | 23.3 | 3147 | 23.3 | 3153 | 23.3 | 8 | 3022 | 24.3 | 3027 | 24.3 | 3026 | 24.3 |
434.zeusmp | 8 | 997 | 73.1 | 1003 | 72.6 | 1011 | 72.0 | 8 | 993 | 73.3 | 992 | 73.4 | 995 | 73.2 |
435.gromacs | 8 | 359 | 159 | 359 | 159 | 358 | 159 | 8 | 354 | 161 | 361 | 158 | 356 | 161 |
436.cactusADM | 8 | 1283 | 74.5 | 1282 | 74.6 | 1285 | 74.4 | 1 | 117 | 102 | 117 | 102 | 116 | 103 |
437.leslie3d | 8 | 2861 | 26.3 | 2867 | 26.2 | 2865 | 26.2 | 4 | 1300 | 28.9 | 1299 | 29.0 | 1298 | 29.0 |
444.namd | 8 | 483 | 133 | 482 | 133 | 481 | 133 | 8 | 479 | 134 | 478 | 134 | 478 | 134 |
447.dealII | 8 | 691 | 132 | 644 | 142 | 656 | 140 | 8 | 630 | 145 | 626 | 146 | 644 | 142 |
450.soplex | 8 | 1957 | 34.1 | 1956 | 34.1 | 1956 | 34.1 | 8 | 1765 | 37.8 | 1768 | 37.7 | 1771 | 37.7 |
453.povray | 8 | 200 | 213 | 200 | 213 | 200 | 213 | 8 | 170 | 250 | 170 | 250 | 171 | 248 |
454.calculix | 8 | 521 | 127 | 519 | 127 | 522 | 126 | 8 | 383 | 172 | 379 | 174 | 385 | 171 |
459.GemsFDTD | 8 | 3458 | 24.5 | 3445 | 24.6 | 3468 | 24.5 | 8 | 3346 | 25.4 | 3345 | 25.4 | 3345 | 25.4 |
465.tonto | 8 | 622 | 127 | 625 | 126 | 623 | 126 | 8 | 611 | 129 | 611 | 129 | 612 | 129 |
470.lbm | 8 | 4123 | 26.7 | 4123 | 26.7 | 4126 | 26.6 | 4 | 1421 | 38.7 | 1422 | 38.6 | 1422 | 38.6 |
481.wrf | 8 | 1718 | 52.0 | 1719 | 52.0 | 1720 | 52.0 | 8 | 1718 | 52.0 | 1720 | 52.0 | 1717 | 52.1 |
482.sphinx3 | 8 | 2751 | 56.7 | 2737 | 57.0 | 2776 | 56.2 | 4 | 763 | 102 | 765 | 102 | 762 | 102 |
All benchmarks compiled in 64-bit mode except 437.leslie3d, 450.soplex 470.lbm and 482.sphinx3, at peak, are compiled in 32-bit mode Hardware Sector Prefetch Enabled and Adjacent Sector Prefetch Disabled OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 64M Powersaved dameon was disabled in OS taskset utility used to bind CPU(s) to processes
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-fast |
-fast |
-fast |
-fast |
/opt/intel/cc/10.1.008/bin/icc -L/opt/intel/cc/10.1.008/lib -I/opt/intel/cc/10.1.008/include | |
433.milc: | icc |
icpc | |
450.soplex: | /opt/intel/cc/10.1.008/bin/icpc -L/opt/intel/cc/10.1.008/lib -I/opt/intel/cc/10.1.008/include |
ifort | |
437.leslie3d: | /opt/intel/fc/10.1.008/bin/ifort -L/opt/intel/fc/10.1.008/lib -I/opt/intel/fc/10.1.008/include |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
470.lbm: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -scalar-rep- -prefetch -opt-malloc-options=3 |
482.sphinx3: | -fast -unroll2 |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -fast -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -ansi-alias |
410.bwaves: | -fast -prefetch |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
437.leslie3d: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -opt-malloc-options=3 |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -prefetch |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -prefetch -parallel -auto-ilp32 |
454.calculix: | -fast -unroll-aggressive -auto-ilp32 |
481.wrf: | -fast -auto-ilp32 |
