SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY RX200 S4, Intel Xeon processor E5420,
2.50 GHz

CPU2006 license: 22 Test date: Nov-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Dec-2007
Tested by: Fujitsu Siemens Computers Software Availability: Nov-2007

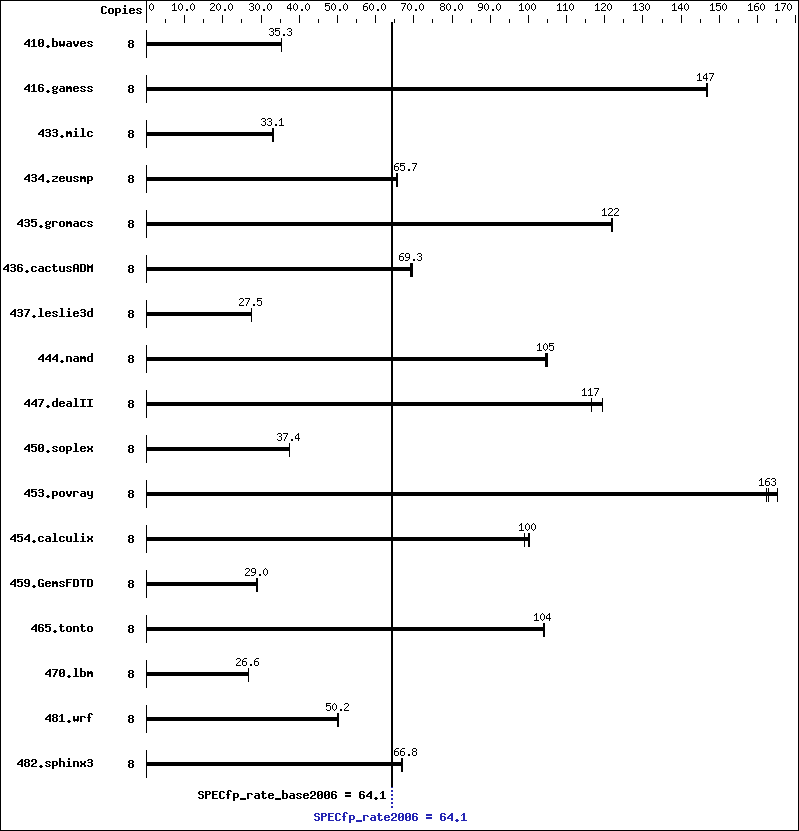

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5420
CPU Characteristics: 1333 MHz system bus
CPU MHz: 2500
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB PC2-5300F, 2 rank, CAS 5-5-5,
with ECC)
Disk Subsystem: Seagate ST973451SS (SAS, 73GB, 15000rpm)
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: Intel C++ and Fortran Compiler
for Linux32 and Linux64
Version 10.1 - Build 20070725
Auto Parallel: No
File System: ext2
System State: Multiuser, Runlevel 3
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 3085 35.2 3084 35.3 3084 35.3 8 3085 35.2 3084 35.3 3084 35.3
416.gamess 8 1068 147   1067 147   1068 147   8 1068 147   1067 147   1068 147
433.milc 8 2234 32.9 2217 33.1 2217 33.1 8 2234 32.9 2217 33.1 2217 33.1
434.zeusmp 8 1110 65.6 1108 65.7 1107 65.7 8 1110 65.6 1108 65.7 1107 65.7
435.gromacs 8 469 122   469 122   469 122   8 469 122   469 122   469 122
436.cactusADM 8 1384 69.1 1379 69.3 1375 69.5 8 1384 69.1 1379 69.3 1375 69.5
437.leslie3d 8 2737 27.5 2741 27.4 2731 27.5 8 2737 27.5 2741 27.4 2731 27.5
444.namd 8 613 105   613 105   612 105   8 613 105   613 105   612 105
447.dealII 8 767 119   785 117   785 117   8 767 119   785 117   785 117
450.soplex 8 1778 37.5 1783 37.4 1784 37.4 8 1778 37.5 1783 37.4 1784 37.4
453.povray 8 262 162   261 163   258 165   8 262 162   261 163   258 165
454.calculix 8 658 100   660 100   667 99.0 8 658 100   660 100   667 99.0
459.GemsFDTD 8 2929 29.0 2957 28.7 2931 29.0 8 2929 29.0 2957 28.7 2931 29.0
465.tonto 8 757 104   755 104   758 104   8 757 104   755 104   758 104
470.lbm 8 4135 26.6 4133 26.6 4131 26.6 8 4135 26.6 4133 26.6 4131 26.6
481.wrf 8 1784 50.1 1782 50.2 1778 50.3 8 1784 50.1 1782 50.2 1778 50.3
482.sphinx3 8 2334 66.8 2336 66.7 2322 67.1 8 2334 66.8 2336 66.7 2322 67.1

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

General Notes


 This result has been produced with binaries provided and compiled by Intel.

 BIOS configuration:
 Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable

 For information about Fujitsu Siemens Computers please see:
 http://www.fujitsu-siemens.com

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  basepeak = yes

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  basepeak = yes
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10.1-FP-intel64-linux-flags.20090714.05.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10.1-FP-intel64-linux-flags.20090714.05.xml.
