SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY BX620 S4, Intel Xeon processor E5440,
2.83 GHz

CPU2006 license: 22 Test date: Nov-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Dec-2007
Tested by: Fujitsu Siemens Computers Software Availability: Nov-2007

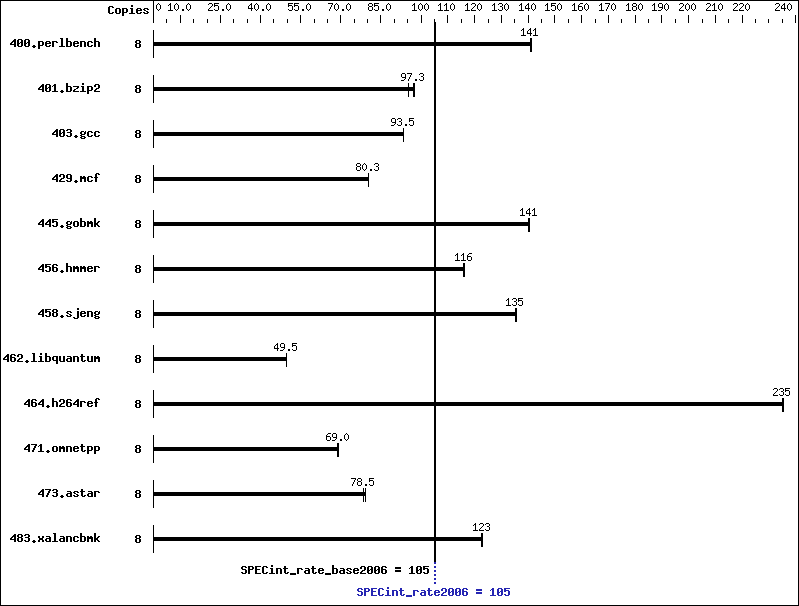

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5440
CPU Characteristics: 1333 MHz system bus
CPU MHz: 2833
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB PC2-5300F, 2 rank, CAS 5-5-5, with
ECC)
Disk Subsystem: Seagate ST973451SS (SAS, 73GB, 15000rpm)
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: Intel C++ Compiler for Linux32 and Linux64
Version 10.1 - Build 20070725
Auto Parallel: No
File System: ext2
System State: Multiuser, Runlevel 3
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: Smart Heap Library, Version 8.1
binutils-2.17.tar.gz, Version 2.17

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 555 141   553 141   554 141   8 555 141   553 141   554 141
401.bzip2 8 809 95.4 794 97.3 792 97.5 8 809 95.4 794 97.3 792 97.5
403.gcc 8 689 93.5 690 93.4 689 93.5 8 689 93.5 690 93.4 689 93.5
429.mcf 8 906 80.5 908 80.3 908 80.3 8 906 80.5 908 80.3 908 80.3
445.gobmk 8 596 141   600 140   597 141   8 596 141   600 140   597 141
456.hmmer 8 644 116   643 116   643 116   8 644 116   643 116   643 116
458.sjeng 8 715 135   715 135   713 136   8 715 135   715 135   713 136
462.libquantum 8 3347 49.5 3347 49.5 3347 49.5 8 3347 49.5 3347 49.5 3347 49.5
464.h264ref 8 752 235   753 235   753 235   8 752 235   753 235   753 235
471.omnetpp 8 725 69.0 729 68.6 725 69.0 8 725 69.0 729 68.6 725 69.0
473.astar 8 716 78.5 717 78.3 710 79.1 8 716 78.5 717 78.3 710 79.1
483.xalancbmk 8 448 123   450 123   450 123   8 448 123   450 123   450 123

General Notes


 This result has been produced with binaries provided and compiled by Intel.

 BIOS configuration:
 Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable

 For information about Fujitsu Siemens Computers please see:
 http://www.fujitsu-siemens.com

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -inline-calloc   -opt-malloc-options=3

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Optimization Flags

C benchmarks:

400.perlbench:  basepeak = yes
401.bzip2:  basepeak = yes
403.gcc:  basepeak = yes
429.mcf:  basepeak = yes
445.gobmk:  basepeak = yes
456.hmmer:  basepeak = yes
458.sjeng:  basepeak = yes
462.libquantum:  basepeak = yes
464.h264ref:  basepeak = yes

C++ benchmarks:

471.omnetpp:  basepeak = yes
473.astar:  basepeak = yes
483.xalancbmk:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.06.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.06.xml.
