| CPU2006 license: | 20 | Test date: | Nov-2007 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Oct-2007 |
| Tested by: | Bull SAS | Software Availability: | Aug-2007 |
| Hardware | |
|---|---|
| CPU Name: | POWER6 |
| CPU Characteristics: | |
| CPU MHz: | 4700 |
| FPU: | Integrated |
| CPU(s) enabled: | 1 core, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 2,4,8,12,16 cores |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per core |
| L3 Cache: | 32 MB I+D off chip per chip |
| Other Cache: | None |
| Memory: | 64 GB (8x8 GB) DDR2 667 MHZ |
| Disk Subsystem: | 2x73 GB SAS, 15K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | AIX 5L V5.3 |
| Compiler: | XL C/C++ Enterprise Edition Version 9.0 for AIX+ Aug07 PTF XL Fortran Enterprise Edition Version 11.1 for AIX |
| Auto Parallel: | No |
| File System: | AIX/JFS2 |
| System State: | Multi-user |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

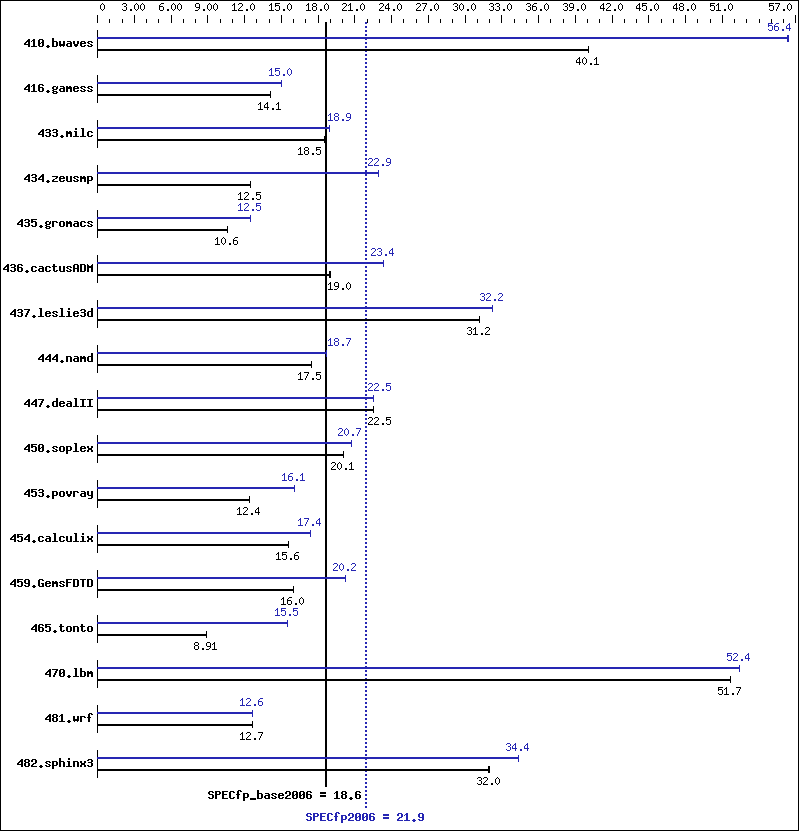

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 339 | 40.1 | 339 | 40.1 | 339 | 40.1 | 241 | 56.4 | 241 | 56.4 | 241 | 56.4 |
| 416.gamess | 1387 | 14.1 | 1387 | 14.1 | 1388 | 14.1 | 1302 | 15.0 | 1302 | 15.0 | 1302 | 15.0 |
| 433.milc | 496 | 18.5 | 496 | 18.5 | 496 | 18.5 | 485 | 18.9 | 485 | 18.9 | 485 | 18.9 |
| 434.zeusmp | 729 | 12.5 | 729 | 12.5 | 729 | 12.5 | 397 | 22.9 | 398 | 22.9 | 397 | 22.9 |
| 435.gromacs | 673 | 10.6 | 673 | 10.6 | 673 | 10.6 | 572 | 12.5 | 572 | 12.5 | 572 | 12.5 |
| 436.cactusADM | 630 | 19.0 | 630 | 19.0 | 630 | 19.0 | 511 | 23.4 | 511 | 23.4 | 512 | 23.4 |
| 437.leslie3d | 302 | 31.2 | 301 | 31.2 | 302 | 31.2 | 292 | 32.2 | 292 | 32.2 | 292 | 32.2 |
| 444.namd | 460 | 17.5 | 460 | 17.5 | 460 | 17.4 | 429 | 18.7 | 429 | 18.7 | 429 | 18.7 |
| 447.dealII | 508 | 22.5 | 508 | 22.5 | 508 | 22.5 | 508 | 22.5 | 508 | 22.5 | 508 | 22.5 |
| 450.soplex | 415 | 20.1 | 415 | 20.1 | 415 | 20.1 | 402 | 20.7 | 402 | 20.7 | 402 | 20.7 |
| 453.povray | 431 | 12.4 | 431 | 12.4 | 431 | 12.4 | 331 | 16.1 | 331 | 16.1 | 331 | 16.1 |
| 454.calculix | 530 | 15.6 | 530 | 15.6 | 530 | 15.6 | 475 | 17.4 | 475 | 17.4 | 475 | 17.4 |
| 459.GemsFDTD | 663 | 16.0 | 663 | 16.0 | 663 | 16.0 | 525 | 20.2 | 525 | 20.2 | 525 | 20.2 |
| 465.tonto | 1105 | 8.91 | 1104 | 8.91 | 1105 | 8.91 | 634 | 15.5 | 634 | 15.5 | 634 | 15.5 |
| 470.lbm | 266 | 51.7 | 266 | 51.7 | 266 | 51.7 | 262 | 52.4 | 262 | 52.4 | 262 | 52.4 |
| 481.wrf | 883 | 12.7 | 883 | 12.7 | 883 | 12.7 | 884 | 12.6 | 884 | 12.6 | 884 | 12.6 |
| 482.sphinx3 | 610 | 32.0 | 610 | 31.9 | 610 | 32.0 | 567 | 34.4 | 567 | 34.4 | 567 | 34.4 |
Operating System Notes
AIX 5.3 Updated with the 5300-06 Technology Level ulimits set to unlimited Envionment variables set before executing benchmarks: MALLOCOPTIONS=pool MEMORY_AFFINITY=MCM XLFRTEOPTS=intrinthds=1 System set to "Enhanced" mode when defining partition on HMC bindprocessor command used on submit to bind each copy to a unique processor. Large page mode was set as follows: vmo -r -o lgpg_regions=768 -o lgpg_size=16777216
General Notes
Speed run on 1 core partition defined on HMC fdpr binary optimization tool used for 410.bwaves 434.zeusmp 453.povray 470.lbm 482.sphinx3
Base Compiler Invocation
C benchmarks:
| /usr/vac/bin/xlc |
C++ benchmarks:
| /usr/vacpp/bin/xlC |
Fortran benchmarks:
| /usr/bin/xlf95 |
Benchmarks using both Fortran and C:
| /usr/vac/bin/xlc /usr/bin/xlf95 |
Base Portability Flags
| 410.bwaves: | -qfixed |
| 416.gamess: | -qfixed |
| 434.zeusmp: | -qfixed |
| 435.gromacs: | -qfixed -qextname |
| 436.cactusADM: | -qfixed -qextname |
| 437.leslie3d: | -qfixed |
| 454.calculix: | -qfixed -qextname |
| 481.wrf: | -DSPEC_CPU_AIX -DNOUNDERSCORE |
| 482.sphinx3: | -qchars=signed |
Base Optimization Flags
C benchmarks:
| -qlanglvl=extc99 -bmaxdata:0x40000000 -O5 -qlargepage -D_ILS_MACROS -blpdata |
C++ benchmarks:
| -bmaxdata:0x50000000 -O5 -qlargepage -D_ILS_MACROS -qrtti=all -D__IBM_FAST_VECTOR -blpdata |
Fortran benchmarks:
| -bmaxdata:0x60000000 -O5 -qlargepage -qsmallstack=dynlenonheap -qalias=nostd -blpdata |
Benchmarks using both Fortran and C:
| -qlanglvl=extc99 -bmaxdata:0x60000000 -O5 -qlargepage -D_ILS_MACROS -qsmallstack=dynlenonheap -qalias=nostd -blpdata |
Base Other Flags
C benchmarks:
| -qipa=noobject -qipa=threads -qsuppress=1500-036 |
C++ benchmarks:
| -qipa=noobject -qipa=threads -qsuppress=1500-036 |
Fortran benchmarks:
| -qipa=noobject -qsuppress=1500-010 -qsuppress=cmpmsg -qipa=threads -qsuppress=1500-036 |
Benchmarks using both Fortran and C:
| -qipa=noobject -qsuppress=1500-010 -qsuppress=cmpmsg -qipa=threads -qsuppress=1500-036 |
Peak Compiler Invocation
C benchmarks:
| /usr/vac/bin/xlc |
C++ benchmarks:
| /usr/vacpp/bin/xlC |
Fortran benchmarks:
| /usr/bin/xlf95 |
Benchmarks using both Fortran and C:
| /usr/vac/bin/xlc /usr/bin/xlf95 |
Peak Portability Flags
| 410.bwaves: | -qfixed |
| 416.gamess: | -qfixed |
| 434.zeusmp: | -qfixed |
| 435.gromacs: | -qfixed -qextname |
| 436.cactusADM: | -qfixed -qextname |
| 437.leslie3d: | -qfixed |
| 454.calculix: | -qfixed -qextname |
| 481.wrf: | -DSPEC_CPU_AIX -DNOUNDERSCORE |
| 482.sphinx3: | -qchars=signed |
Peak Optimization Flags
C benchmarks:
| 433.milc: | -qlanglvl=extc99 -bmaxdata:0x40000000 -O5 -qlargepage -D_ILS_MACROS -qalign=natural -blpdata |
| 470.lbm: | -qlanglvl=extc99 -O5 -qlargepage -D_ILS_MACROS -q64 -blpdata |
| 482.sphinx3: | -qlanglvl=extc99 -qpdf1(pass 1) -qpdf2(pass 2) -O5 -qlargepage -qenablevmx -qvecnvol -D_ILS_MACROS -blpdata |
C++ benchmarks:
| 444.namd: | -qpdf1(pass 1) -qpdf2(pass 2) -O5 -qlargepage -qenablevmx -qvecnvol -D_ILS_MACROS -blpdata |
| 447.dealII: | -bmaxdata:0x50000000 -O5 -qlargepage -D_ILS_MACROS -qrtti=all -D__IBM_FAST_VECTOR -blpdata |
| 450.soplex: | -bmaxdata:0x40000000 -qpdf1(pass 1) -qpdf2(pass 2) -O5 -qlargepage -qstrict -D_ILS_MACROS -blpdata |
| 453.povray: | -qpdf1(pass 1) -qpdf2(pass 2) -O5 -qlargepage -qenablevmx -qvecnvol -D_ILS_MACROS -qalign=natural -blpdata |
Fortran benchmarks:
| 410.bwaves: | -bmaxdata:0x50000000 -O5 -qlargepage -qenablevmx -qvecnvol -qsmallstack=dynlenonheap -blpdata |
| 416.gamess: | -bmaxdata:0x40000000 -qpdf1(pass 1) -qpdf2(pass 2) -O5 -qlargepage -qalias=nostd -blpdata |
| 434.zeusmp: | -bmaxdata:0x40000000 -qpdf1(pass 1) -qpdf2(pass 2) -O5 -qlargepage -qenablevmx -qvecnvol -qxlf90=nosignedzero -blpdata |
| 437.leslie3d: | -O5 -qlargepage -q64 -blpdata |
| 459.GemsFDTD: | -bmaxdata:0x50000000 -qpdf1(pass 1) -qpdf2(pass 2) -O5 -qlargepage -qenablevmx -qvecnvol -blpdata |
| 465.tonto: | -bmaxdata:0x20000000 -qpdf1(pass 1) -qpdf2(pass 2) -O5 -qlargepage -blpdata |
Benchmarks using both Fortran and C:
| 435.gromacs: | -qlanglvl=extc99 -qpdf1(pass 1) -qpdf2(pass 2) -O5 -qlargepage -qenablevmx -qvecnvol -D_ILS_MACROS -blpdata |
| 436.cactusADM: | -qlanglvl=extc99 -bmaxdata:0x60000000 -D_ILS_MACROS -blpdata |
| 454.calculix: | -qlanglvl=extc99 -O4 -qlargepage -q64 -D_ILS_MACROS -blpdata |
| 481.wrf: | -qlanglvl=extc99 -bmaxdata:0x30000000 -O5 -qlargepage -D_ILS_MACROS -qalias=nostd -blpdata |
Peak Other Flags
C benchmarks:
| -qipa=noobject -qipa=threads -qsuppress=1500-036 |
C++ benchmarks:
| -qipa=noobject -qipa=threads -qsuppress=1500-036 |
Fortran benchmarks:
| -qipa=noobject -qsuppress=1500-010 -qsuppress=cmpmsg -qipa=threads -qsuppress=1500-036 |
Benchmarks using both Fortran and C:
| -qipa=noobject -qsuppress=1500-010 -qsuppress=cmpmsg -qipa=threads -qsuppress=1500-036 |
