CPU2006 license: | 11 | Test date: | Nov-2007 |
---|---|---|---|
Test sponsor: | IBM Corporation | Hardware Availability: | Jan-2008 |
Tested by: | IBM Corporation | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5460 |
CPU Characteristics: | 1333MHz system bus |
CPU MHz: | 3158 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (8 x 2 GB DDR2-5300F ECC) |
Disk Subsystem: | 1 x 36 GB SAS, 15000 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SLES10 (x86_64), 2.6.16.21-0.8-smp |
Compiler: | Intel C++ and Fortran Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008, l_fc_p_10.1.008 |
Auto Parallel: | No |
File System: | ReiserFS |
System State: | Multi-user, run level 3 |
Base Pointers: | 64-bit |
Peak Pointers: | Not Applicable |
Other Software: | None Binutils 2.17.50.0.15 |

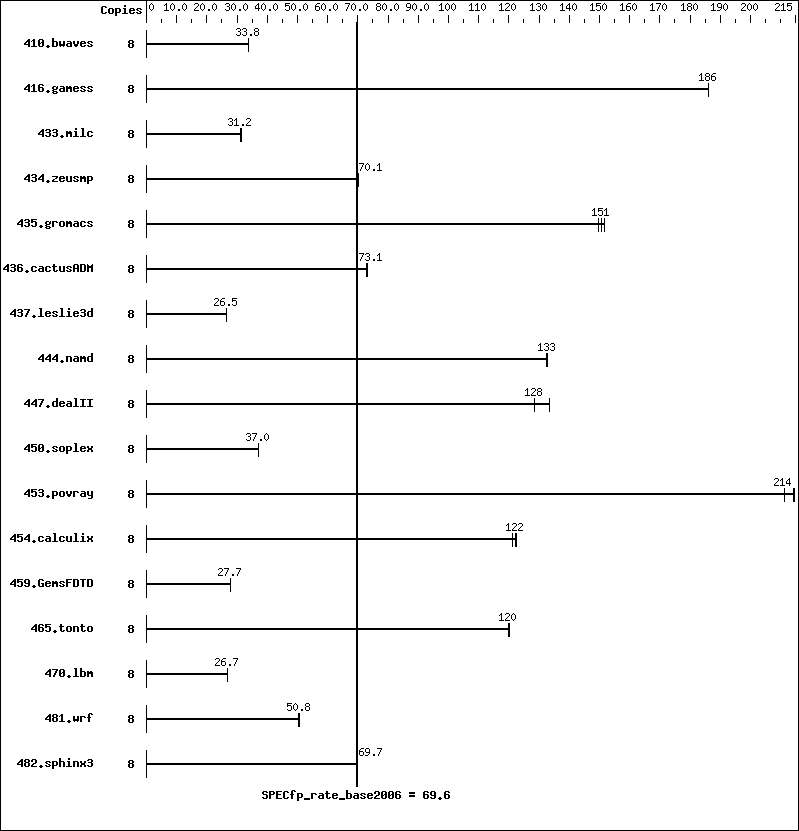

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 3220 | 33.8 | 3220 | 33.8 | 3221 | 33.8 | |||||||
416.gamess | 8 | 842 | 186 | 842 | 186 | 842 | 186 | |||||||
433.milc | 8 | 2354 | 31.2 | 2343 | 31.3 | 2350 | 31.2 | |||||||
434.zeusmp | 8 | 1039 | 70.1 | 1038 | 70.1 | 1040 | 70.0 | |||||||
435.gromacs | 8 | 379 | 151 | 377 | 152 | 382 | 150 | |||||||
436.cactusADM | 8 | 1308 | 73.1 | 1309 | 73.0 | 1307 | 73.1 | |||||||
437.leslie3d | 8 | 2841 | 26.5 | 2841 | 26.5 | 2835 | 26.5 | |||||||
444.namd | 8 | 483 | 133 | 483 | 133 | 484 | 133 | |||||||
447.dealII | 8 | 713 | 128 | 713 | 128 | 686 | 133 | |||||||
450.soplex | 8 | 1801 | 37.0 | 1801 | 37.0 | 1803 | 37.0 | |||||||
453.povray | 8 | 199 | 214 | 201 | 211 | 198 | 214 | |||||||
454.calculix | 8 | 544 | 121 | 539 | 122 | 540 | 122 | |||||||
459.GemsFDTD | 8 | 3059 | 27.7 | 3062 | 27.7 | 3060 | 27.7 | |||||||
465.tonto | 8 | 654 | 120 | 656 | 120 | 656 | 120 | |||||||
470.lbm | 8 | 4118 | 26.7 | 4116 | 26.7 | 4113 | 26.7 | |||||||
481.wrf | 8 | 1759 | 50.8 | 1760 | 50.8 | 1772 | 50.4 | |||||||
482.sphinx3 | 8 | 2238 | 69.7 | 2234 | 69.8 | 2236 | 69.7 |
All benchmarks compiled in 64-bit mode except 450.soplex, 470.lbm and 482.sphinx3, at peak, are compiled in 32-bit mode Hardware Sector Prefetch Disabled and Adjacent Sector Prefetch Disabled OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 64M Powersaved dameon was disabled in OS taskset utility used to bind CPU(s) to processes
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
