SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge 6800 (Intel Xeon 7130M, 3.20 GHz)

CPU2006 license: 55 Test date: Sep-2007
Test sponsor: Dell Inc. Hardware Availability: Aug-2006
Tested by: Dell Inc. Software Availability: Nov-2007

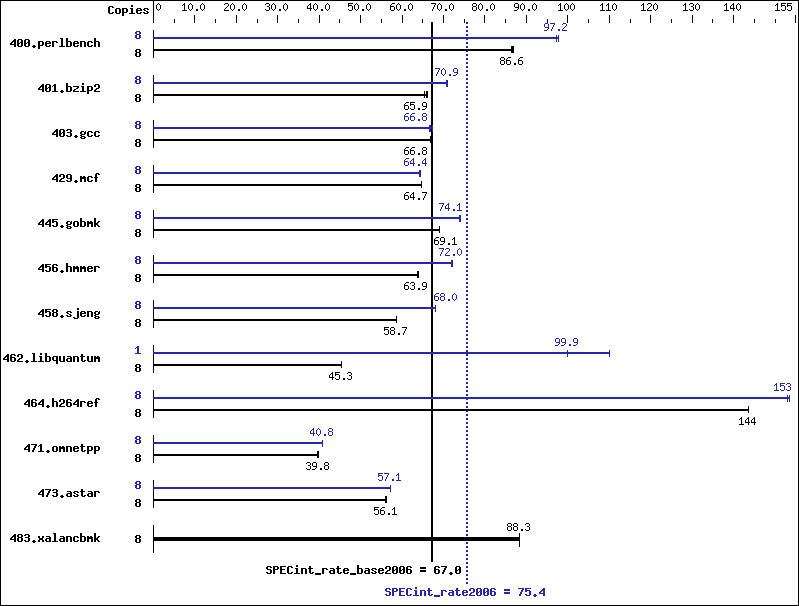

Benchmark results graph
Hardware
CPU Name: Intel Xeon 7130M
CPU Characteristics: 800 MHz system bus
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip
CPU(s) orderable: 1,2,4 chips
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 16 GB (16 x 1 GB ECC 400 MHz DDR2 SDRAM)
Disk Subsystem: 2 x 36 GB SCSI 15k RPM
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10 SP1
Compiler: Intel C++ Compiler for Linux32 and Linux64
version 10.1
Build 20070725
Auto Parallel: Yes
File System: ReiserFS
System State: Multi-user, run level 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap library V8.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 904 86.5 902 86.6 900 86.8 8 804 97.2 804 97.2 801 97.6
401.bzip2 8 1171 65.9 1166 66.2 1178 65.5 8 1089 70.9 1091 70.8 1088 70.9
403.gcc 8 964 66.8 962 66.9 965 66.8 8 956 67.4 966 66.7 964 66.8
429.mcf 8 1127 64.7 1129 64.6 1127 64.7 8 1134 64.4 1135 64.3 1133 64.4
445.gobmk 8 1215 69.1 1215 69.1 1215 69.1 8 1132 74.1 1135 74.0 1132 74.2
456.hmmer 8 1167 63.9 1173 63.6 1167 63.9 8 1036 72.1 1036 72.0 1039 71.8
458.sjeng 8 1651 58.6 1650 58.7 1649 58.7 8 1424 68.0 1424 68.0 1425 67.9
462.libquantum 8 3663 45.3 3663 45.3 3663 45.3 1 208 99.8 188 110   207 99.9
464.h264ref 8 1232 144   1232 144   1232 144   8 1154 153   1153 154   1157 153
471.omnetpp 8 1261 39.7 1255 39.8 1256 39.8 8 1226 40.8 1226 40.8 1228 40.7
473.astar 8 1000 56.2 1001 56.1 1002 56.0 8 980 57.3 983 57.1 984 57.1
483.xalancbmk 8 625 88.3 625 88.3 625 88.3 8 625 88.3 625 88.3 625 88.3

Compiler Invocation Notes

OMP_NUM_THREADS set to number of cores
KMP_STACK_SIZE set to 64M
KMP_AFFINITY set to physical,0

Operating System Notes

'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
'/usr/bin/taskset' used to bind processes to CPUs

Platform Notes

BIOS Settings:
Logical Processor = Disabled (default Enabled)

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xP   -ipo   -O3   -no-prec-div   -static   -inline-calloc   -opt-malloc-options=3

C++ benchmarks:

 -xP   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/bin/icc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/include
456.hmmer:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/bin/icc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div   -static   -ansi-alias   -prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div   -static   -prefetch
403.gcc:  -xP   -ipo   -O3   -no-prec-div   -static   -inline-calloc   -opt-malloc-options=3
429.mcf:  -xP   -ipo   -O3   -no-prec-div   -static   -prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -xP   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias   -opt-multi-version-aggressive
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div   -static   -unroll4
462.libquantum:  -xP   -ipo   -O3   -no-prec-div   -static   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always   -vec-guard-write   -opt-malloc-options=3   -parallel   -par-runtime-control
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap
473.astar:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.30.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.30.xml.
