| CPU2006 license: | 55 | Test date: | Oct-2007 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Dec-2006 |
| Tested by: | Dell Inc. | Software Availability: | Oct-2007 |
| Hardware | |
|---|---|
| CPU Name: | AMD Opteron 8214 |
| CPU Characteristics: | |
| CPU MHz: | 2200 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 4 chips, 2 cores/chip |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 32 GB (16x2GB, DDR2-667 CL5 ECC Dual Rank) |
| Disk Subsystem: | 1 x 250 GB SATA 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | 64-Bit SUSE LINUX Enterprise Server 10 SP1 |
| Compiler: | The Portland Group (PGI) PGI pgcc 7.1-0 C Compiler PGI pgCC 7.1-0 C++ Compiler |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap 8.0 32-bit Library for Linux |

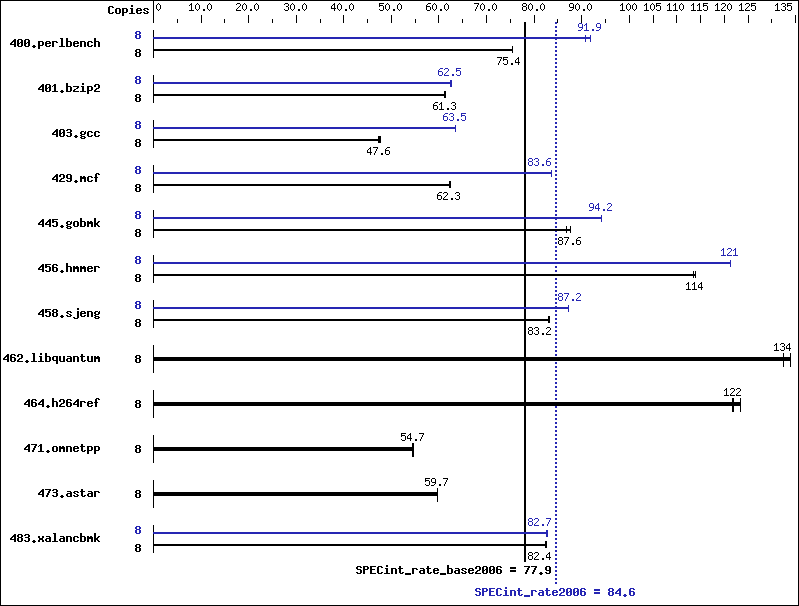

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 1037 | 75.4 | 1037 | 75.4 | 1037 | 75.4 | 8 | 860 | 90.9 | 850 | 91.9 | 850 | 91.9 |
| 401.bzip2 | 8 | 1259 | 61.3 | 1259 | 61.3 | 1260 | 61.3 | 8 | 1234 | 62.6 | 1236 | 62.5 | 1235 | 62.5 |
| 403.gcc | 8 | 1349 | 47.7 | 1354 | 47.6 | 1363 | 47.2 | 8 | 1014 | 63.5 | 1014 | 63.5 | 1015 | 63.4 |
| 429.mcf | 8 | 1170 | 62.3 | 1171 | 62.3 | 1172 | 62.3 | 8 | 872 | 83.6 | 871 | 83.7 | 873 | 83.6 |
| 445.gobmk | 8 | 958 | 87.6 | 958 | 87.6 | 967 | 86.8 | 8 | 890 | 94.2 | 891 | 94.2 | 891 | 94.2 |
| 456.hmmer | 8 | 655 | 114 | 656 | 114 | 658 | 113 | 8 | 616 | 121 | 615 | 121 | 615 | 121 |
| 458.sjeng | 8 | 1165 | 83.1 | 1164 | 83.2 | 1162 | 83.3 | 8 | 1110 | 87.2 | 1109 | 87.3 | 1111 | 87.2 |
| 462.libquantum | 8 | 1252 | 132 | 1239 | 134 | 1238 | 134 | 8 | 1252 | 132 | 1239 | 134 | 1238 | 134 |
| 464.h264ref | 8 | 1453 | 122 | 1454 | 122 | 1435 | 123 | 8 | 1453 | 122 | 1454 | 122 | 1435 | 123 |
| 471.omnetpp | 8 | 914 | 54.7 | 914 | 54.7 | 917 | 54.5 | 8 | 914 | 54.7 | 914 | 54.7 | 917 | 54.5 |
| 473.astar | 8 | 939 | 59.8 | 940 | 59.7 | 940 | 59.7 | 8 | 939 | 59.8 | 940 | 59.7 | 940 | 59.7 |
| 483.xalancbmk | 8 | 669 | 82.5 | 670 | 82.3 | 670 | 82.4 | 8 | 666 | 82.8 | 667 | 82.7 | 669 | 82.5 |
General Notes
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2457600' was used to set environment locked pages in memory quantity 'numactl' was used to bind one copy per core, and memory to a local NUMA node Set vm/nr_hugepages=1200 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages Environment variable PGI_HUGE_PAGES set to 150
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -Mipa=fast -Mipa=inline -Mipa=noarg -Mfprelaxed -Msmartalloc=huge:64 -tp k8-64 -Bstatic_pgi |
C++ benchmarks:
| -fastsse -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc --zc_eh -tp k8-32 -Bstatic_pgi -lsmartheap |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Mpfi(pass 1) -Mpfo(pass 2) -Mipa=inline(pass 2) -fast -O4 -Mfprelaxed -Msmartalloc=huge:8 -Mnounroll -tp k8-64 -Bstatic_pgi |
| 401.bzip2: | -Mpfi(pass 1) -Mpfo(pass 2) -fast -O4 -Msmartalloc=huge:64 -tp k8-64 -Bstatic_pgi |
| 403.gcc: | -fastsse -Mfprelaxed -Msmartalloc=huge:32 -Mipa=fast -Mipa=inline -tp k8-32 -Bstatic_pgi |
| 429.mcf: | -fastsse -Mipa=fast -Mipa=inline -Msmartalloc=huge:16 -tp k8-32 -Bstatic_pgi |
| 445.gobmk: | -Mpfi(pass 1) -Mpfo(pass 2) -Mipa=fast(pass 2) -fast -O4 -Msmartalloc=huge:32 -Mfprelaxed -Mnovect -tp k8-64 -Bstatic_pgi |
| 456.hmmer: | -fast -Msmartalloc=huge:32 -Mfprelaxed -Msafeptr -Mipa=const -Mipa=ptr -Mipa=arg -tp k8-64 -Bstatic_pgi |
| 458.sjeng: | -Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mipa=noarg(pass 2) -Mpfo(pass 2) -fast -Msmartalloc=huge:32 -Mfprelaxed -tp k8-64 -Bstatic_pgi |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -fastsse -O4 -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc --zc_eh -tp k8-32 -Bstatic_pgi -lsmartheap |
