SPEC® CFP2006 Result

Hewlett-Packard Company

HP Integrity rx2660 (1.66GHz/18MB Dual-Core Intel
Itanium)

SPECfp®_rate2006 = 55.8

SPECfp_rate_base2006 = 54.5

CPU2006 license:	03	Test date:	Sep-2007
Test sponsor:	Hewlett-Packard Company	Hardware Availability:	Nov-2007
Tested by:	Hewlett-Packard Company	Software Availability:	Sep-2007

Hardware
CPU Name:	Dual-Core Intel Itanium 9140M
CPU Characteristics:	1.66GHz/18MB, 667MHz FSB
CPU MHz:	1666
FPU:	Integrated
CPU(s) enabled:	4 cores, 2 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable:	1-2 chips
Primary Cache:	16 KB I + 16 KB D on chip per core
Secondary Cache:	1 MB I + 256 KB D on chip per core
L3 Cache:	9 MB I+D on chip per core
Other Cache:	None
Memory:	16 GB (8x2GB DIMMs)
Disk Subsystem:	73GB 10K RPM SAS
Other Hardware:	None

Software
Operating System:	HPUX11i-MCOE B.11.31 (LR)
Compiler:	HP C/aC++ Developer's Bundle C.11.31.03 HP Fortran90 Compiler B.11.31.03
Auto Parallel:	No
File System:	vxfs
System State:	Multi-user
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	MicroQuill Smartheap 8.1

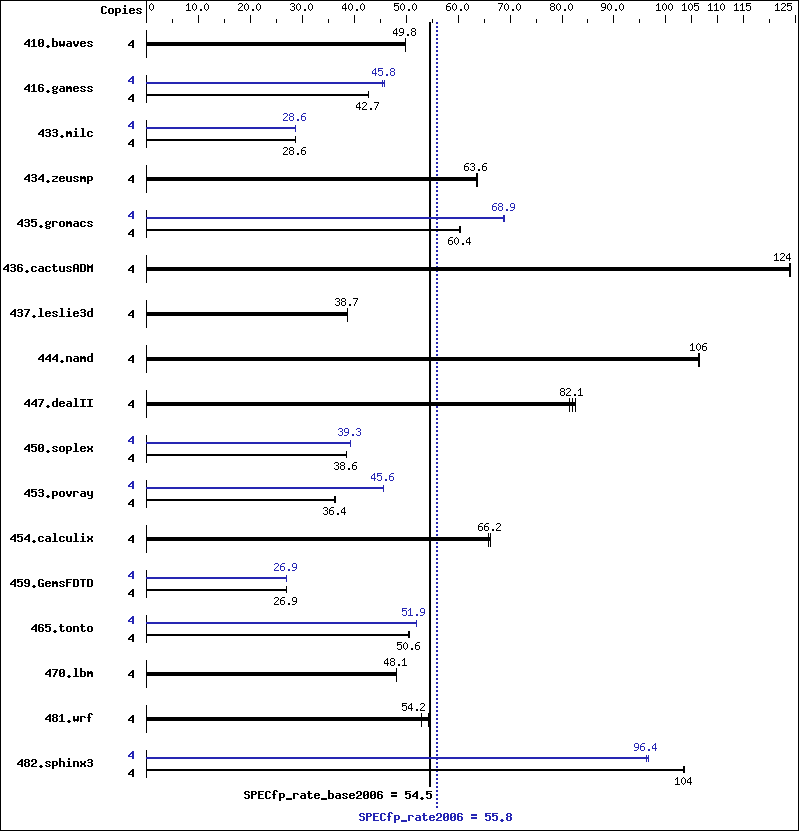

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	4	1091	49.8	1092	49.8	1090	49.9	4	1091	49.8	1092	49.8	1090	49.9
416.gamess	4	1834	42.7	1834	42.7	1833	42.7	4	1709	45.8	1726	45.4	1710	45.8
433.milc	4	1283	28.6	1283	28.6	1283	28.6	4	1283	28.6	1283	28.6	1283	28.6
434.zeusmp	4	571	63.7	572	63.6	573	63.6	4	571	63.7	572	63.6	573	63.6
435.gromacs	4	472	60.5	473	60.4	474	60.3	4	415	68.9	414	69.0	415	68.8
436.cactusADM	4	386	124	386	124	385	124	4	386	124	386	124	385	124
437.leslie3d	4	971	38.7	971	38.7	971	38.7	4	971	38.7	971	38.7	971	38.7
444.namd	4	301	106	302	106	301	106	4	301	106	302	106	301	106
447.dealII	4	558	82.1	562	81.4	555	82.5	4	558	82.1	562	81.4	555	82.5
450.soplex	4	865	38.6	865	38.6	865	38.6	4	849	39.3	848	39.3	849	39.3
453.povray	4	584	36.4	585	36.4	588	36.2	4	466	45.6	466	45.6	466	45.6
454.calculix	4	502	65.8	499	66.2	498	66.2	4	502	65.8	499	66.2	498	66.2
459.GemsFDTD	4	1578	26.9	1580	26.9	1579	26.9	4	1579	26.9	1578	26.9	1579	26.9
465.tonto	4	779	50.5	778	50.6	778	50.6	4	758	51.9	757	52.0	758	51.9
470.lbm	4	1143	48.1	1144	48.1	1143	48.1	4	1143	48.1	1144	48.1	1143	48.1
481.wrf	4	824	54.2	824	54.2	844	53.0	4	824	54.2	824	54.2	844	53.0
482.sphinx3	4	753	104	754	103	752	104	4	809	96.3	809	96.4	807	96.6

Operating System Notes

   The system had the September 2007 HP-UX 11i v3 Mission Critical
   Operating Environment (MCOE) and compilers installed, along with
   the following patches:

   PHSS_36349  linker + fdp cumulative patch
   PHSS_36351  Math Library Cumulative Patch
   PHSS_36352  Integrity Unwind Library
   PHSS_36350  aC++ Runtime (A.06.15)
   PHSS_36354  assembler patch

   The following kernel tunables were set, in addition to the defaults
   set by the Mission Critical OE:

   maxdsiz=3221225472
   maxssiz=401604608
   maxrsessiz=41943040

Base Compiler Invocation

Base Portability Flags

453.povray:	-DSPEC_CPU_NEED_INVHYP
481.wrf:	-DNOUNDERSCORE +noppu

Peak Compiler Invocation

C benchmarks:

/opt/ansic/bin/cc -Ae

C++ benchmarks:

/opt/aCC/bin/aCC -Aa

Fortran benchmarks:

/opt/fortran90/bin/f90

Benchmarks using both Fortran and C:

/opt/ansic/bin/cc -Ae /opt/fortran90/bin/f90

Peak Portability Flags

453.povray:	-DSPEC_CPU_NEED_INVHYP
481.wrf:	-DNOUNDERSCORE +noppu

Peak Optimization Flags

C benchmarks:

433.milc:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap -Wl,-N
470.lbm:	basepeak = yes
482.sphinx3:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap

C++ benchmarks:

444.namd:	basepeak = yes
447.dealII:	basepeak = yes
450.soplex:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap -Wl,-N
453.povray:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	+Ofaster -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Odataprefetch=direct -Wl,-N
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Odataprefetch=direct -Wl,-N
465.tonto:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Odataprefetch=direct

Benchmarks using both Fortran and C:

435.gromacs:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap
436.cactusADM:	basepeak = yes
454.calculix:	basepeak = yes
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.07.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.07.xml.
