CPU2006 license: | 9006 | Test date: | Sep-2007 |
---|---|---|---|
Test sponsor: | NEC Corporation | Hardware Availability: | Jan-2007 |
Tested by: | NEC Corporation | Software Availability: | Jun-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon 5130 |
CPU Characteristics: | 2.00 GHz, 4MB L2, 1333MHz bus |
CPU MHz: | 2000 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 4 MB I+D on chip per chip |
L3 Cache: | None |
Other Cache: | None |
Memory: | 8 GB (8x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
Disk Subsystem: | 1x73.2 GB SAS, 10000RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | 64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp for x86_64 |
Compiler: | Intel C++ Compiler for IA32/EM64T application, Version 10.0 - Build 20070426 Package ID: l_cc_p_10.0.023 |
Auto Parallel: | No |
File System: | ext2 |
System State: | Multiuser, Runlevel 3 |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | MicroQuill SmartHeap library 8.1 binutils-2.17.tar.gz, Version 2.17 |

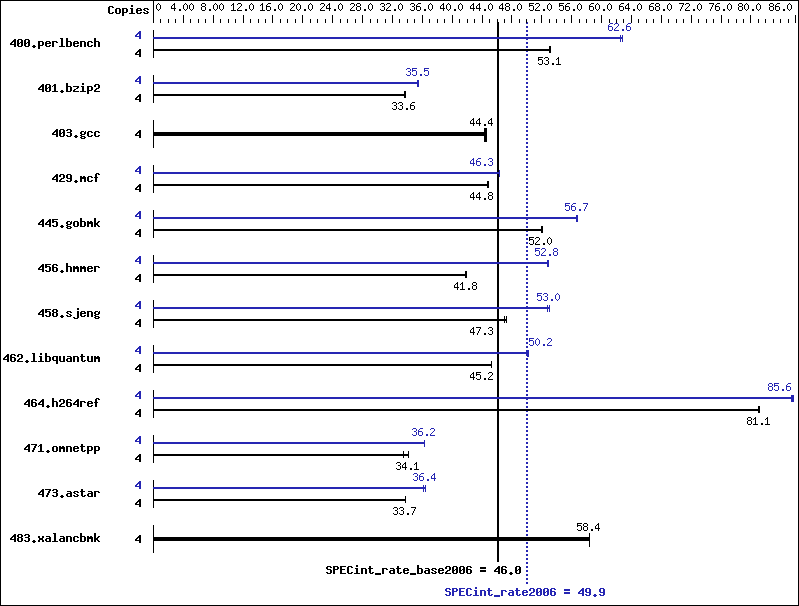

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 4 | 737 | 53.0 | 736 | 53.1 | 735 | 53.2 | 4 | 622 | 62.8 | 625 | 62.5 | 624 | 62.6 |
401.bzip2 | 4 | 1148 | 33.6 | 1142 | 33.8 | 1150 | 33.6 | 4 | 1090 | 35.4 | 1088 | 35.5 | 1087 | 35.5 |
403.gcc | 4 | 727 | 44.3 | 723 | 44.5 | 724 | 44.4 | 4 | 727 | 44.3 | 723 | 44.5 | 724 | 44.4 |
429.mcf | 4 | 814 | 44.8 | 815 | 44.8 | 815 | 44.8 | 4 | 787 | 46.3 | 787 | 46.3 | 787 | 46.4 |
445.gobmk | 4 | 806 | 52.1 | 808 | 51.9 | 807 | 52.0 | 4 | 740 | 56.7 | 739 | 56.8 | 740 | 56.7 |
456.hmmer | 4 | 892 | 41.9 | 892 | 41.8 | 892 | 41.8 | 4 | 705 | 52.9 | 707 | 52.8 | 707 | 52.8 |
458.sjeng | 4 | 1028 | 47.1 | 1023 | 47.3 | 1023 | 47.3 | 4 | 912 | 53.0 | 916 | 52.8 | 912 | 53.1 |
462.libquantum | 4 | 1832 | 45.2 | 1832 | 45.2 | 1833 | 45.2 | 4 | 1652 | 50.2 | 1653 | 50.1 | 1651 | 50.2 |
464.h264ref | 4 | 1092 | 81.1 | 1090 | 81.2 | 1092 | 81.0 | 4 | 1034 | 85.6 | 1034 | 85.6 | 1036 | 85.5 |
471.omnetpp | 4 | 748 | 33.4 | 731 | 34.2 | 732 | 34.1 | 4 | 689 | 36.3 | 690 | 36.2 | 690 | 36.2 |
473.astar | 4 | 832 | 33.7 | 832 | 33.7 | 832 | 33.8 | 4 | 777 | 36.1 | 770 | 36.5 | 772 | 36.4 |
483.xalancbmk | 4 | 473 | 58.4 | 473 | 58.3 | 473 | 58.4 | 4 | 473 | 58.4 | 473 | 58.3 | 473 | 58.4 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-fast |
-xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
403.gcc: | basepeak = yes |
429.mcf: | -fast -prefetch |
445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias |
456.hmmer: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
462.libquantum: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always |
464.h264ref: | Same as 456.hmmer |
471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
473.astar: | Same as 471.omnetpp |
483.xalancbmk: | basepeak = yes |
