SPEC® CFP2006 Result

NEC Corporation

Express5800/120Bb-m6
(Intel Xeon processor 5130)

SPECfp®_rate2006 = 36.7

SPECfp_rate_base2006 = 35.7

CPU2006 license:	9006	Test date:	Sep-2007
Test sponsor:	NEC Corporation	Hardware Availability:	Jan-2007
Tested by:	NEC Corporation	Software Availability:	Apr-2007

Hardware
CPU Name:	Intel Xeon 5130
CPU Characteristics:	2.00 GHz, 4MB L2, 1333MHz bus
CPU MHz:	2000
FPU:	Integrated
CPU(s) enabled:	4 cores, 2 chips, 2 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	4 MB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	8 GB (8x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem:	1x73.2 GB SAS, 10000RPM
Other Hardware:	None

Software
Operating System:	64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp on an x86_64
Compiler:	Intel C++ Compiler for IA32/EM64T application, Version 9.1 - Build 20070320, Package-ID: l_cc_c_9.1.049 Intel Fortran Compiler for IA32/EM64T application, Version 9.1 - Build 20070320, Package ID: l_fc_c_9.1.045
Auto Parallel:	No
File System:	ext2
System State:	Multiuser, Runlevel 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

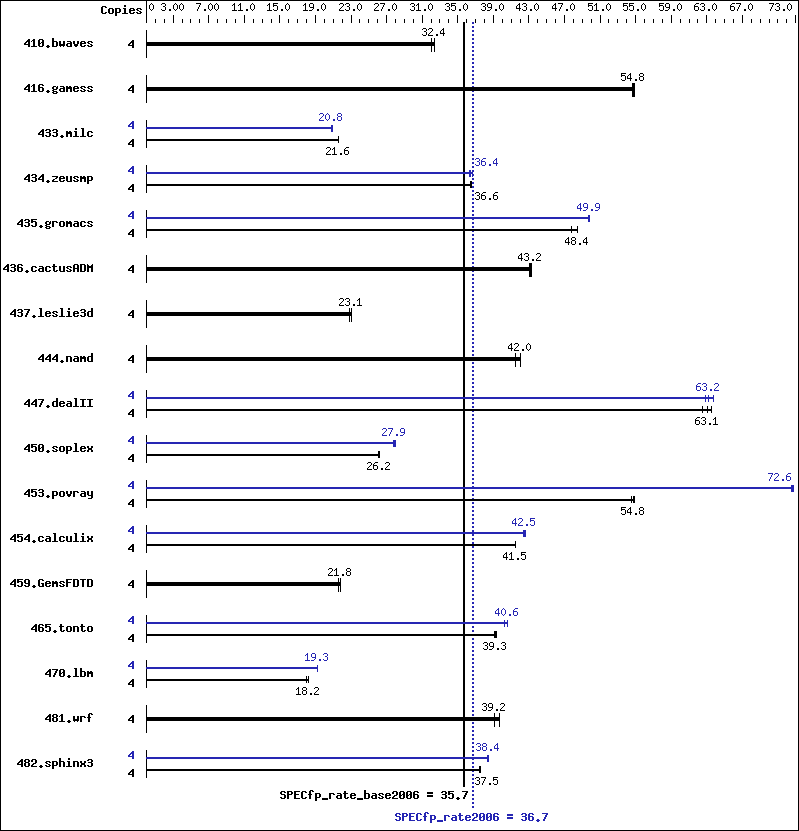

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	4	1679	32.4	1698	32.0	1680	32.4	4	1679	32.4	1698	32.0	1680	32.4
416.gamess	4	1430	54.8	1429	54.8	1432	54.7	4	1430	54.8	1429	54.8	1432	54.7
433.milc	4	1700	21.6	1700	21.6	1699	21.6	4	1760	20.9	1763	20.8	1763	20.8
434.zeusmp	4	1000	36.4	996	36.6	995	36.6	4	1000	36.4	1001	36.4	992	36.7
435.gromacs	4	597	47.8	590	48.4	589	48.5	4	574	49.7	573	49.9	573	49.9
436.cactusADM	4	1110	43.1	1105	43.2	1106	43.2	4	1110	43.1	1105	43.2	1106	43.2
437.leslie3d	4	1651	22.8	1631	23.1	1628	23.1	4	1651	22.8	1631	23.1	1628	23.1
444.namd	4	774	41.4	763	42.0	763	42.0	4	774	41.4	763	42.0	763	42.0
447.dealII	4	732	62.5	720	63.5	726	63.1	4	717	63.8	724	63.2	728	62.9
450.soplex	4	1280	26.1	1275	26.2	1271	26.2	4	1199	27.8	1194	27.9	1193	28.0
453.povray	4	390	54.6	388	54.9	388	54.8	4	293	72.7	293	72.5	293	72.6
454.calculix	4	795	41.5	795	41.5	796	41.4	4	775	42.6	777	42.5	778	42.4
459.GemsFDTD	4	1943	21.8	1941	21.9	1966	21.6	4	1943	21.8	1941	21.9	1966	21.6
465.tonto	4	1002	39.3	1002	39.3	1005	39.2	4	976	40.3	969	40.6	969	40.6
470.lbm	4	3021	18.2	3020	18.2	3049	18.0	4	2853	19.3	2852	19.3	2854	19.3
481.wrf	4	1142	39.1	1127	39.6	1141	39.2	4	1142	39.1	1127	39.6	1141	39.2
482.sphinx3	4	2083	37.4	2081	37.5	2079	37.5	4	2031	38.4	2027	38.5	2029	38.4

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes


 The system bus runs at 1333 MHz
 All binaries were built with 64-bit Intel compiler except:
 433.milc, 434.zeusmp, 450.soplex, 470.lbm and 482.sphinx3 in peak were built with
 32-bit Intel compiler by changing the path for include and library files.

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

-fast

C++ benchmarks:

-fast

Fortran benchmarks:

-fast

Benchmarks using both Fortran and C:

-fast

Peak Compiler Invocation

C benchmarks:

/opt/intel/cc/9.1.049/bin/icc -I/opt/intel/cc/9.1.049/include -L/opt/intel/cc/9.1.049/lib

C++ benchmarks (except as noted below):

	icpc
450.soplex:	/opt/intel/cc/9.1.049/bin/icpc -I/opt/intel/cc/9.1.049/include -L/opt/intel/cc/9.1.049/lib

Fortran benchmarks (except as noted below):

	ifort
434.zeusmp:	/opt/intel/fc/9.1.045/bin/ifort -I/opt/intel/fc/9.1.045/include -L/opt/intel/fc/9.1.045/lib

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:	-prof_gen(pass 1) -prof_use(pass 2) -fast
470.lbm:	Same as 433.milc
482.sphinx3:	-fast

C++ benchmarks:

444.namd:	basepeak = yes
447.dealII:	-prof_gen(pass 1) -prof_use(pass 2) -fast
450.soplex:	Same as 447.dealII
453.povray:	Same as 447.dealII

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	basepeak = yes
434.zeusmp:	-fast
437.leslie3d:	basepeak = yes
459.GemsFDTD:	basepeak = yes
465.tonto:	-prof_gen(pass 1) -prof_use(pass 2) -fast

Benchmarks using both Fortran and C:

435.gromacs:	-prof_gen(pass 1) -prof_use(pass 2) -fast
436.cactusADM:	basepeak = yes
454.calculix:	Same as 435.gromacs
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-ic91-FP-linux-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-ic91-FP-linux-flags.xml.
