SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Supermicro

Motherboard C2SBA+

CPU2006 license: 001176 Test date: Sep-2007
Test sponsor: Supermicro Hardware Availability: Jul-2007
Tested by: Supermicro Software Availability: May-2007

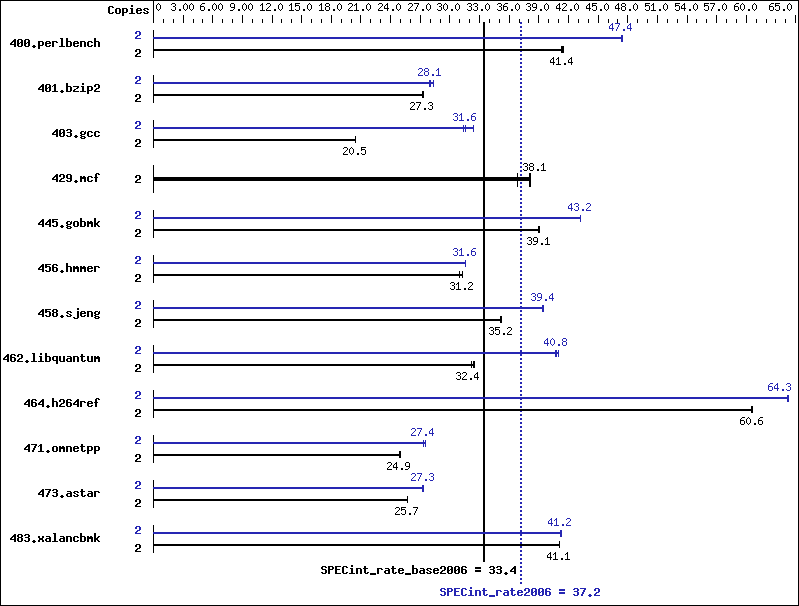

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Duo E6850
CPU Characteristics: 3.00GHz, 1333MHz Bus
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (4 X 2GB PC2-6400, CL5)
Disk Subsystem: 74GB SATA, 7200RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate (32-bit)
Compiler: Intel C++ Compiler for IA32 version 10.0
Build 20070426 Package ID: W_CC_P_10.0.025
Microsoft Visual Studio .Net 2003 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: SmartHeap Library Version 8.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 2 473 41.4 471 41.5 473 41.3 2 412 47.4 412 47.5 412 47.4
401.bzip2 2 708 27.3 706 27.3 710 27.2 2 688 28.1 681 28.3 691 27.9
403.gcc 2 787 20.5 787 20.5 788 20.4 2 513 31.4 497 32.4 510 31.6
429.mcf 2 478 38.2 479 38.1 495 36.9 2 478 38.2 479 38.1 495 36.9
445.gobmk 2 536 39.1 537 39.1 539 39.0 2 486 43.2 485 43.2 486 43.2
456.hmmer 2 597 31.2 597 31.2 602 31.0 2 591 31.6 591 31.6 591 31.6
458.sjeng 2 687 35.2 687 35.2 688 35.2 2 614 39.4 614 39.4 615 39.4
462.libquantum 2 1287 32.2 1278 32.4 1277 32.4 2 1017 40.8 1018 40.7 1010 41.0
464.h264ref 2 730 60.6 730 60.6 731 60.6 2 689 64.2 688 64.3 688 64.3
471.omnetpp 2 501 24.9 502 24.9 501 24.9 2 455 27.5 457 27.4 457 27.4
473.astar 2 546 25.7 546 25.7 546 25.7 2 515 27.3 514 27.3 515 27.3
483.xalancbmk 2 336 41.1 336 41.0 336 41.1 2 335 41.2 334 41.3 335 41.2

General Notes

 Tested systems can be used with case CSE-733i-450
 To ensure system stability, a 420W (minimum) ATX power supply [4-pin +12V AND (20 or 24-pin)]
 is required.
 Product description located at:
 http://www.supermicro.com/products/motherboard/Core2Duo/G33/C2SBA+II.cfm
 The system bus runs at 1333 MHz
 BIOS Setting : Default

Base Compiler Invocation

C benchmarks:

 icl -Qvc7.1   -Qc99

C++ benchmarks:

 icl -Qvc7.1

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32

Base Optimization Flags

C benchmarks:

 -fast   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

 icl -Qvc7.1   -Qc99

C++ benchmarks:

 icl -Qvc7.1

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32

Peak Optimization Flags

C benchmarks:

400.perlbench:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qprefetch   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
401.bzip2:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
403.gcc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F512000000    -link /FORCE:MULTIPLE
429.mcf:  basepeak = yes
445.gobmk:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qipo   -Qprec_div-   -Qansi-alias   /F512000000    -link /FORCE:MULTIPLE
456.hmmer:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qansi-alias   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
458.sjeng:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll4   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
462.libquantum:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll4   -Ob0   -Qprefetch   -Qopt-streaming-stores:always   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
464.h264ref:  Same as 456.hmmer

C++ benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.18.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.18.xml.
