SPEC® CFP2006 Result

Hewlett-Packard Company

ProLiant BL465c
(3.0GHz AMD Opteron 2222)

SPECfp®_rate2006 = 26.5

SPECfp_rate_base2006 = 26.0

CPU2006 license:	3	Test date:	Aug-2007
Test sponsor:	Hewlett-Packard Company	Hardware Availability:	Sep-2007
Tested by:	Hewlett-Packard Company	Software Availability:	Oct-2007

Hardware
CPU Name:	AMD Opteron 2222
CPU Characteristics:
CPU MHz:	3000
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (4x4 GB, PC2-5300P CL5)
Disk Subsystem:	1x72 GB 10 K SAS
Other Hardware:	None

Software
Operating System:	SuSE Linux Enterprise Server 10 (x86_64) SP1 kernel 2.6.16.46-0.12-smp
Compiler:	The Portland Group (PGI) PGI pgf90 7.1-0 Fortran Compiler PGI pgcc 7.1-0 C Compiler PGI pgCC 7.1-0 C++ Compiler
Auto Parallel:	No
File System:	ext2
System State:	Multi-user, run level 3
Base Pointers:	64-bit
Peak Pointers:	64-bit
Other Software:	none

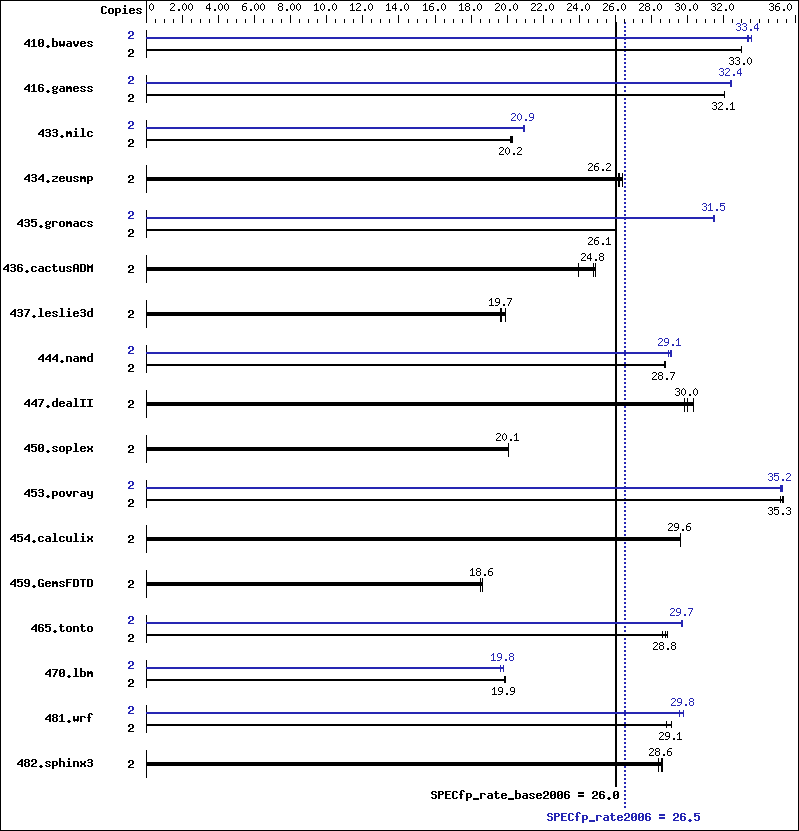

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	2	823	33.0	824	33.0	824	33.0	2	815	33.3	810	33.5	814	33.4
416.gamess	2	1222	32.1	1221	32.1	1222	32.1	2	1209	32.4	1207	32.4	1207	32.4
433.milc	2	910	20.2	907	20.2	905	20.3	2	879	20.9	879	20.9	877	20.9
434.zeusmp	2	690	26.4	695	26.2	694	26.2	2	690	26.4	695	26.2	694	26.2
435.gromacs	2	548	26.1	548	26.0	548	26.1	2	454	31.5	454	31.5	454	31.5
436.cactusADM	2	961	24.9	964	24.8	997	24.0	2	961	24.9	964	24.8	997	24.0
437.leslie3d	2	945	19.9	958	19.6	954	19.7	2	945	19.9	958	19.6	954	19.7
444.namd	2	558	28.7	557	28.8	558	28.7	2	554	29.0	552	29.1	551	29.1
447.dealII	2	754	30.3	763	30.0	767	29.8	2	754	30.3	763	30.0	767	29.8
450.soplex	2	830	20.1	830	20.1	831	20.1	2	830	20.1	830	20.1	831	20.1
453.povray	2	301	35.3	302	35.3	303	35.2	2	302	35.3	303	35.2	302	35.2
454.calculix	2	557	29.6	557	29.6	558	29.6	2	557	29.6	557	29.6	558	29.6
459.GemsFDTD	2	1146	18.5	1138	18.6	1139	18.6	2	1146	18.5	1138	18.6	1139	18.6
465.tonto	2	681	28.9	688	28.6	684	28.8	2	663	29.7	662	29.7	662	29.7
470.lbm	2	1386	19.8	1380	19.9	1383	19.9	2	1386	19.8	1390	19.8	1400	19.6
481.wrf	2	767	29.1	768	29.1	775	28.8	2	756	29.5	750	29.8	750	29.8
482.sphinx3	2	1372	28.4	1363	28.6	1365	28.6	2	1372	28.4	1363	28.6	1365	28.6

Operating System Notes

Environment stack size set to 'unlimited'
ulimit -l set to 1048576
'numactl' was used to bind copies to the cores
Set vm/nr_hugepages=1024 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

Base Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks:

pgcpp

Fortran benchmarks:

pgf95

Benchmarks using both Fortran and C:

pgcc pgf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -Mnomain
436.cactusADM:	-DSPEC_CPU_LP64 -Mnomain
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -Mnomain
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Other Flags

C benchmarks:

-w

C++ benchmarks:

-w

Fortran benchmarks:

-w

Benchmarks using both Fortran and C:

-w

Peak Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks:

pgcpp

Fortran benchmarks:

pgf95

Benchmarks using both Fortran and C:

pgcc pgf95

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:	-Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mipa=noarg(pass 2) -Mpfo(pass 2) -fast -O4 -Mdse -Mfprelaxed -Msmartalloc=huge:8 -tp k8-64 -Bstatic_pgi
470.lbm:	-fast -Mfprelaxed -Msmartalloc=huge:8 -Mipa=fast -Mipa=noarg -tp k8-64 -Bstatic_pgi
482.sphinx3:	basepeak = yes

C++ benchmarks:

444.namd:	-Mpfi(pass 1) -Mpfo(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -fast -O4 -Mfprelaxed -Msmartalloc=huge:32 --zc_eh -tp k8-64 -Bstatic_pgi
447.dealII:	basepeak = yes
450.soplex:	basepeak = yes
453.povray:	-fast -Mfprelaxed -Msmartalloc=huge:32 -Mipa=fast -Mipa=inline --zc_eh -tp k8-64 -Bstatic_pgi

Fortran benchmarks:

410.bwaves:	-fast -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc -tp k8-64 -Bstatic_pgi
416.gamess:	-fast -Mipa=fast -Mipa=inline -Mfprelaxed -Mvect=noaltcode -Msmartalloc=huge:64 -tp k8-64 -Bstatic_pgi
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	basepeak = yes
465.tonto:	-fast -Mfprelaxed -Msmartalloc=huge:128 -Mipa=fast -Mipa=inline -Mvect=noaltcode -tp k8-64 -Bstatic_pgi

Benchmarks using both Fortran and C:

435.gromacs:	-fast -O4 -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:16 -tp k8-64 -Mfpapprox=rsqrt -Bstatic_pgi
436.cactusADM:	basepeak = yes
454.calculix:	basepeak = yes
481.wrf:	-fast -Mfprelaxed -Msmartalloc=huge:32 -Mvect=noaltcode -tp k8-64 -Bstatic_pgi

Peak Other Flags

C benchmarks:

-w

C++ benchmarks:

-w

Fortran benchmarks:

-w

Benchmarks using both Fortran and C:

-w

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-pgi710_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-pgi710_flags.xml.
