SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM BladeCenter HS21 (Intel Xeon 5120)

CPU2006 license: 11 Test date: Aug-2007
Test sponsor: IBM Corporation Hardware Availability: Jul-2006
Tested by: IBM Corporation Software Availability: Nov-2007

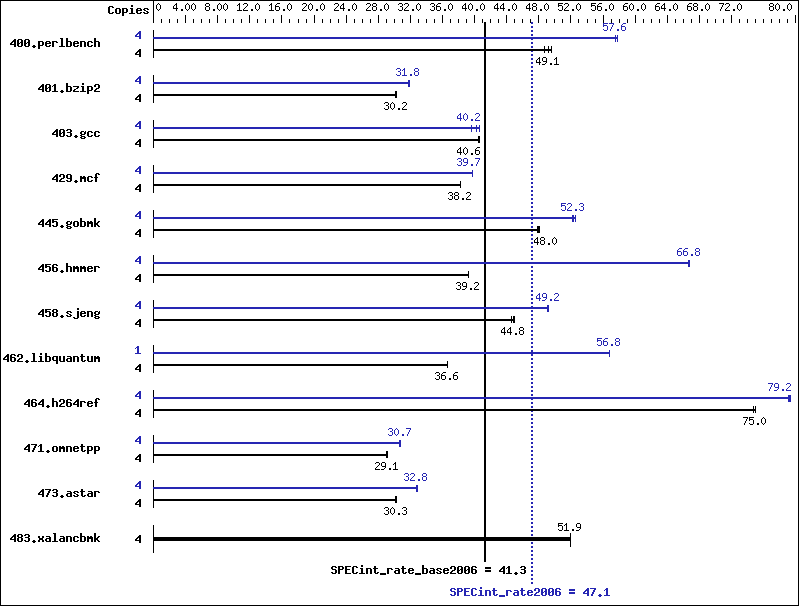

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5120
CPU Characteristics: 1066MHz system bus
CPU MHz: 1866
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2 GB DDR2-5300F ECC)
Disk Subsystem: 1 x 36 GB SAS, 10000 RPM
Other Hardware: Memory and I/O Expansion Unit (P/N 42C1600)
Software
Operating System: SLES 10 (x86_64), 2.6.16.21-0.8-smp
Compiler: Intel C++ Compiler for Linux
version 10.1
Build 20070725
Auto Parallel: Yes
File System: ReiserFS
System State: Multi-user, run level 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap 8.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 789 49.6 802 48.7 795 49.1 4 679 57.5 676 57.8 679 57.6
401.bzip2 4 1276 30.3 1277 30.2 1282 30.1 4 1212 31.9 1215 31.8 1217 31.7
403.gcc 4 793 40.6 794 40.6 795 40.5 4 802 40.2 794 40.6 813 39.6
429.mcf 4 953 38.3 955 38.2 955 38.2 4 919 39.7 919 39.7 919 39.7
445.gobmk 4 878 47.8 875 48.0 873 48.1 4 799 52.5 802 52.3 803 52.2
456.hmmer 4 951 39.3 951 39.2 951 39.2 4 559 66.8 560 66.7 559 66.8
458.sjeng 4 1081 44.8 1077 45.0 1084 44.7 4 986 49.1 984 49.2 985 49.2
462.libquantum 4 2264 36.6 2264 36.6 2265 36.6 1 364 56.9 365 56.8 365 56.8
464.h264ref 4 1181 75.0 1180 75.0 1184 74.8 4 1116 79.3 1120 79.1 1117 79.2
471.omnetpp 4 859 29.1 859 29.1 860 29.1 4 814 30.7 814 30.7 814 30.7
473.astar 4 927 30.3 927 30.3 930 30.2 4 854 32.9 856 32.8 856 32.8
483.xalancbmk 4 531 52.0 532 51.9 532 51.9 4 531 52.0 532 51.9 532 51.9

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -inline-calloc   -opt-malloc-options=3

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/bin/icc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/include
456.hmmer:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/bin/icc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux64/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch
403.gcc:  -fast   -inline-calloc   -opt-malloc-options=3
429.mcf:  -fast   -prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -fast   -unroll2   -ansi-alias   -opt-multi-version-aggressive
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4
462.libquantum:  -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always   -vec-guard-write   -opt-malloc-options=3   -parallel   -par-runtime-control
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap
473.astar:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.46.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.46.xml.
