| CPU2006 license: | 3 | Test date: | Aug-2007 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Sep-2007 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5365 |
| CPU Characteristics: | 3.0 GHz, 2x4 MB L2 shared, 1333 MHz system bus |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB PC2-5300F CL5) |
| Disk Subsystem: | 1x72 GB 15 K SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP1 kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 version 10.1 Build 20070725 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Multi-user run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 binutils-2.17.50 |

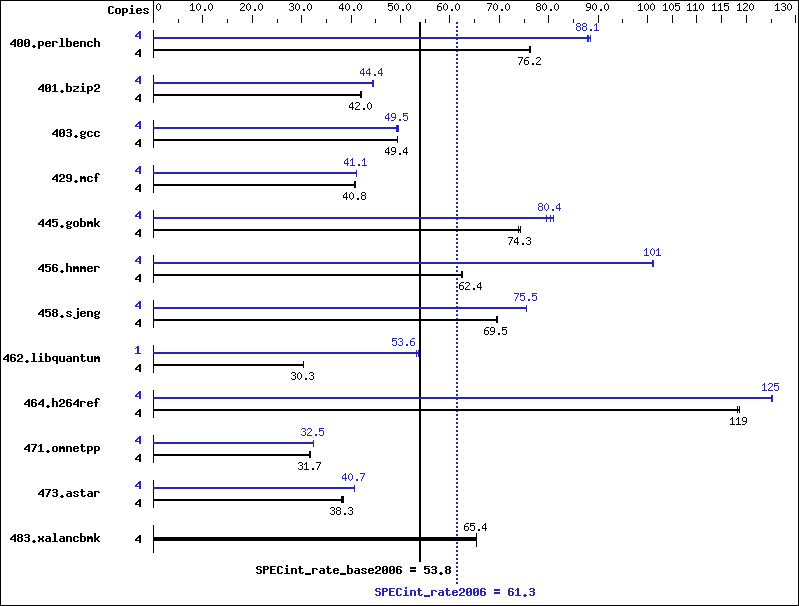

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 513 | 76.2 | 512 | 76.3 | 513 | 76.2 | 4 | 445 | 87.8 | 443 | 88.1 | 442 | 88.5 |
| 401.bzip2 | 4 | 919 | 42.0 | 919 | 42.0 | 916 | 42.1 | 4 | 869 | 44.4 | 872 | 44.3 | 868 | 44.5 |
| 403.gcc | 4 | 652 | 49.4 | 652 | 49.4 | 651 | 49.5 | 4 | 651 | 49.5 | 649 | 49.6 | 655 | 49.2 |
| 429.mcf | 4 | 894 | 40.8 | 893 | 40.8 | 896 | 40.7 | 4 | 888 | 41.1 | 889 | 41.0 | 888 | 41.1 |
| 445.gobmk | 4 | 564 | 74.4 | 565 | 74.3 | 568 | 73.9 | 4 | 518 | 81.0 | 527 | 79.6 | 522 | 80.4 |
| 456.hmmer | 4 | 598 | 62.5 | 599 | 62.4 | 598 | 62.4 | 4 | 370 | 101 | 369 | 101 | 369 | 101 |
| 458.sjeng | 4 | 697 | 69.5 | 695 | 69.7 | 696 | 69.5 | 4 | 640 | 75.6 | 642 | 75.4 | 641 | 75.5 |
| 462.libquantum | 4 | 2733 | 30.3 | 2733 | 30.3 | 2727 | 30.4 | 1 | 387 | 53.6 | 390 | 53.2 | 387 | 53.6 |
| 464.h264ref | 4 | 746 | 119 | 749 | 118 | 747 | 119 | 4 | 706 | 125 | 707 | 125 | 708 | 125 |
| 471.omnetpp | 4 | 787 | 31.8 | 790 | 31.7 | 789 | 31.7 | 4 | 770 | 32.5 | 770 | 32.5 | 770 | 32.5 |
| 473.astar | 4 | 731 | 38.4 | 733 | 38.3 | 739 | 38.0 | 4 | 690 | 40.7 | 691 | 40.7 | 689 | 40.8 |
| 483.xalancbmk | 4 | 422 | 65.4 | 422 | 65.4 | 422 | 65.4 | 4 | 422 | 65.4 | 422 | 65.4 | 422 | 65.4 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 64M
Platform Notes
BIOS configuration: Power Regulator set to Static High Performance Mode Adjacent Sector Prefetch Disabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
