CPU2006 license: | 9006 | Test date: | Aug-2007 |
---|---|---|---|
Test sponsor: | NEC Corporation | Hardware Availability: | Jun-2007 |
Tested by: | NEC Corporation | Software Availability: | Jun-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon 5160 |
CPU Characteristics: | 3.00 GHz, 4MB L2, 1333MHz bus |
CPU MHz: | 3000 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 4 MB I+D on chip per chip |
L3 Cache: | None |
Other Cache: | None |
Memory: | 8 GB (4x2 GB DDR2 5300F, 2 rank, CL5-5-5, ECC) |
Disk Subsystem: | 1x80 GB SATA II, 7200RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | 64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp for x86_64 |
Compiler: | Intel C++ Compiler for IA32/EM64T application, Version 10.0 - Build 20070426 Package ID: l_cc_p_10.0.023 |
Auto Parallel: | No |
File System: | ext2 |
System State: | Multiuser, Runlevel 3 |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | MicroQuill SmartHeap library 8.1 binutils-2.17.tar.gz, Version 2.17 |

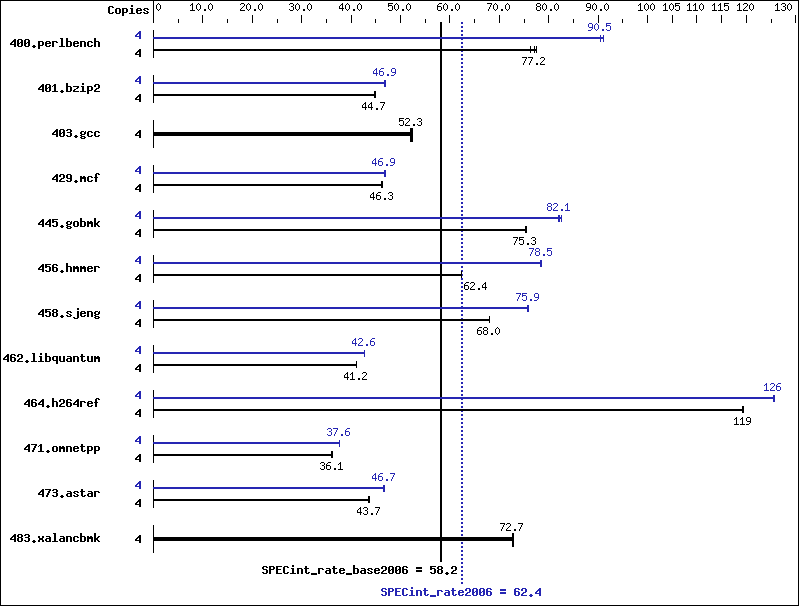

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 4 | 504 | 77.5 | 513 | 76.2 | 506 | 77.2 | 4 | 432 | 90.4 | 429 | 91.1 | 432 | 90.5 |
401.bzip2 | 4 | 864 | 44.7 | 864 | 44.7 | 859 | 44.9 | 4 | 823 | 46.9 | 825 | 46.8 | 823 | 46.9 |
403.gcc | 4 | 616 | 52.3 | 615 | 52.4 | 620 | 51.9 | 4 | 616 | 52.3 | 615 | 52.4 | 620 | 51.9 |
429.mcf | 4 | 788 | 46.3 | 790 | 46.2 | 785 | 46.4 | 4 | 781 | 46.7 | 779 | 46.9 | 778 | 46.9 |
445.gobmk | 4 | 557 | 75.3 | 558 | 75.2 | 555 | 75.6 | 4 | 509 | 82.5 | 512 | 82.0 | 511 | 82.1 |
456.hmmer | 4 | 598 | 62.4 | 598 | 62.4 | 598 | 62.4 | 4 | 475 | 78.5 | 477 | 78.2 | 475 | 78.6 |
458.sjeng | 4 | 711 | 68.1 | 711 | 68.0 | 711 | 68.0 | 4 | 638 | 75.9 | 640 | 75.7 | 637 | 75.9 |
462.libquantum | 4 | 2014 | 41.2 | 2013 | 41.2 | 2013 | 41.2 | 4 | 1941 | 42.7 | 1944 | 42.6 | 1944 | 42.6 |
464.h264ref | 4 | 743 | 119 | 741 | 119 | 741 | 119 | 4 | 704 | 126 | 705 | 126 | 705 | 126 |
471.omnetpp | 4 | 693 | 36.1 | 691 | 36.2 | 692 | 36.1 | 4 | 664 | 37.6 | 664 | 37.6 | 665 | 37.6 |
473.astar | 4 | 644 | 43.6 | 643 | 43.7 | 643 | 43.7 | 4 | 601 | 46.7 | 603 | 46.6 | 601 | 46.7 |
483.xalancbmk | 4 | 380 | 72.7 | 380 | 72.6 | 378 | 72.9 | 4 | 380 | 72.7 | 380 | 72.6 | 378 | 72.9 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-fast |
-xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
icc | |
401.bzip2: | /opt/intel/cce/10.0.023/bin/icc |
456.hmmer: | /opt/intel/cce/10.0.023/bin/icc |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
401.bzip2: | -L/opt/intel/cce/10.0.023/lib -I/opt/intel/cce/10.0.023/include -prof-gen(pass 1) -prof-use(pass 2) -fast |
403.gcc: | basepeak = yes |
429.mcf: | -fast -prefetch |
445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias |
456.hmmer: | -L/opt/intel/cce/10.0.023/lib -I/opt/intel/cce/10.0.023/include -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
462.libquantum: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always |
464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
473.astar: | Same as 471.omnetpp |
483.xalancbmk: | basepeak = yes |
