SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM System x3755 (AMD Opteron 8224 SE)

CPU2006 license: 11 Test date: Aug-2007
Test sponsor: IBM Corporation Hardware Availability: Sep-2007
Tested by: Advanced Micro Devices Software Availability: Oct-2007

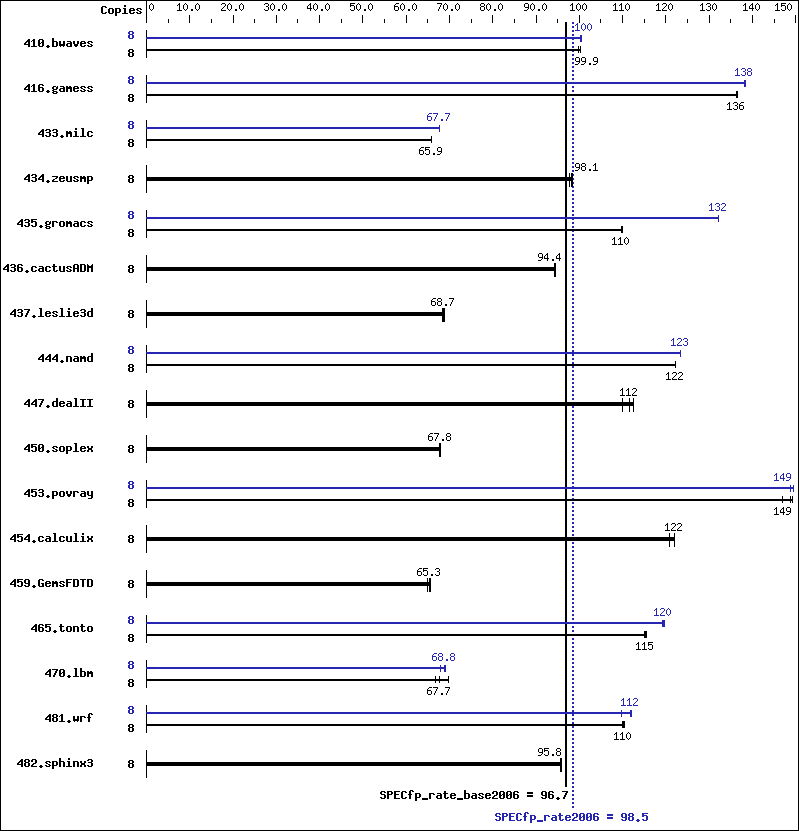

Benchmark results graph
Hardware
CPU Name: AMD Opteron 8224 SE
CPU Characteristics:
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip
CPU(s) orderable: 1, 2, 3, 4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 32 GB (16 x 2GB DDR2-667 CL5 ECC REG Dual Rank)
Disk Subsystem: 1 x 73 GB SAS, 15000 RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 SP1 64-bit kernel
Compiler: The Portland Group (PGI)
PGI pgf90 7.1-0 Fortran Compiler
PGI pgcc 7.1-0 C Compiler
PGI pgCC 7.1-0 C++ Compiler
Auto Parallel: No
File System: ext3
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 1088 99.9 1085 100   1089 99.9 8 1084 100   1081 101   1084 100
416.gamess 8 1148 136   1149 136   1148 136   8 1134 138   1133 138   1133 138
433.milc 8 1116 65.8 1113 66.0 1114 65.9 8 1084 67.8 1084 67.7 1085 67.7
434.zeusmp 8 740 98.4 742 98.1 745 97.8 8 740 98.4 742 98.1 745 97.8
435.gromacs 8 520 110   520 110   520 110   8 433 132   432 132   432 132
436.cactusADM 8 1014 94.3 1012 94.5 1013 94.4 8 1014 94.3 1012 94.5 1013 94.4
437.leslie3d 8 1091 68.9 1094 68.7 1098 68.5 8 1091 68.9 1094 68.7 1098 68.5
444.namd 8 525 122   525 122   525 122   8 520 123   520 123   520 123
447.dealII 8 820 112   813 113   833 110   8 820 112   813 113   833 110
450.soplex 8 987 67.6 983 67.9 984 67.8 8 987 67.6 983 67.9 984 67.8
453.povray 8 285 149   286 149   290 147   8 286 149   285 149   286 149
454.calculix 8 546 121   541 122   541 122   8 546 121   541 122   541 122
459.GemsFDTD 8 1300 65.3 1307 65.0 1292 65.7 8 1300 65.3 1307 65.0 1292 65.7
465.tonto 8 681 116   684 115   682 115   8 658 120   658 120   661 119
470.lbm 8 1576 69.8 1624 67.7 1649 66.7 8 1593 69.0 1598 68.8 1616 68.0
481.wrf 8 809 110   811 110   812 110   8 799 112   798 112   814 110
482.sphinx3 8 1625 96.0 1629 95.7 1628 95.8 8 1625 96.0 1629 95.7 1628 95.8

Operating System Notes

 Environment stack size set to 'unlimited'
 'numactl' was used to bind copies to the cores
 Set vm/nr_hugepages=1024 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:8   -tp k8-64   -Bstatic_pgi

C++ benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:8   --zc_eh   -tp k8-64   -Bstatic_pgi

Fortran benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:8   -tp k8-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:8   -tp k8-64   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w

Fortran benchmarks:

 -w

Benchmarks using both Fortran and C:

 -w

Peak Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -Mpfi(pass 1)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mipa=noarg(pass 2)   -Mpfo(pass 2)   -fast   -O4   -Mdse   -Mfprelaxed   -Msmartalloc=huge:8   -tp k8-64   -Bstatic_pgi
470.lbm:  -fast   -Mfprelaxed   -Msmartalloc=huge:8   -Mipa=fast   -Mipa=noarg   -tp k8-64   -Bstatic_pgi
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fast   -O4   -Mfprelaxed   -Msmartalloc=huge:32   --zc_eh   -tp k8-64   -Bstatic_pgi
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -fast   -Mfprelaxed   -Msmartalloc=huge:32   -Mipa=fast   -Mipa=inline   --zc_eh   -tp k8-64   -Bstatic_pgi

Fortran benchmarks:

410.bwaves:  -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc   -tp k8-64   -Bstatic_pgi
416.gamess:  -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mvect=noaltcode   -Msmartalloc=huge:64   -tp k8-64   -Bstatic_pgi
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -fast   -Mfprelaxed   -Msmartalloc=huge:128   -Mipa=fast   -Mipa=inline   -Mvect=noaltcode   -tp k8-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

435.gromacs:  -fast   -O4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:16   -tp k8-64   -Mfpapprox=rsqrt   -Bstatic_pgi
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  -fast   -Mfprelaxed   -Msmartalloc=huge:32   -Mvect=noaltcode   -tp k8-64   -Bstatic_pgi

Peak Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w

Fortran benchmarks:

 -w

Benchmarks using both Fortran and C:

 -w

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/pgi710_flags.20090714.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/pgi710_flags.20090714.01.xml.
